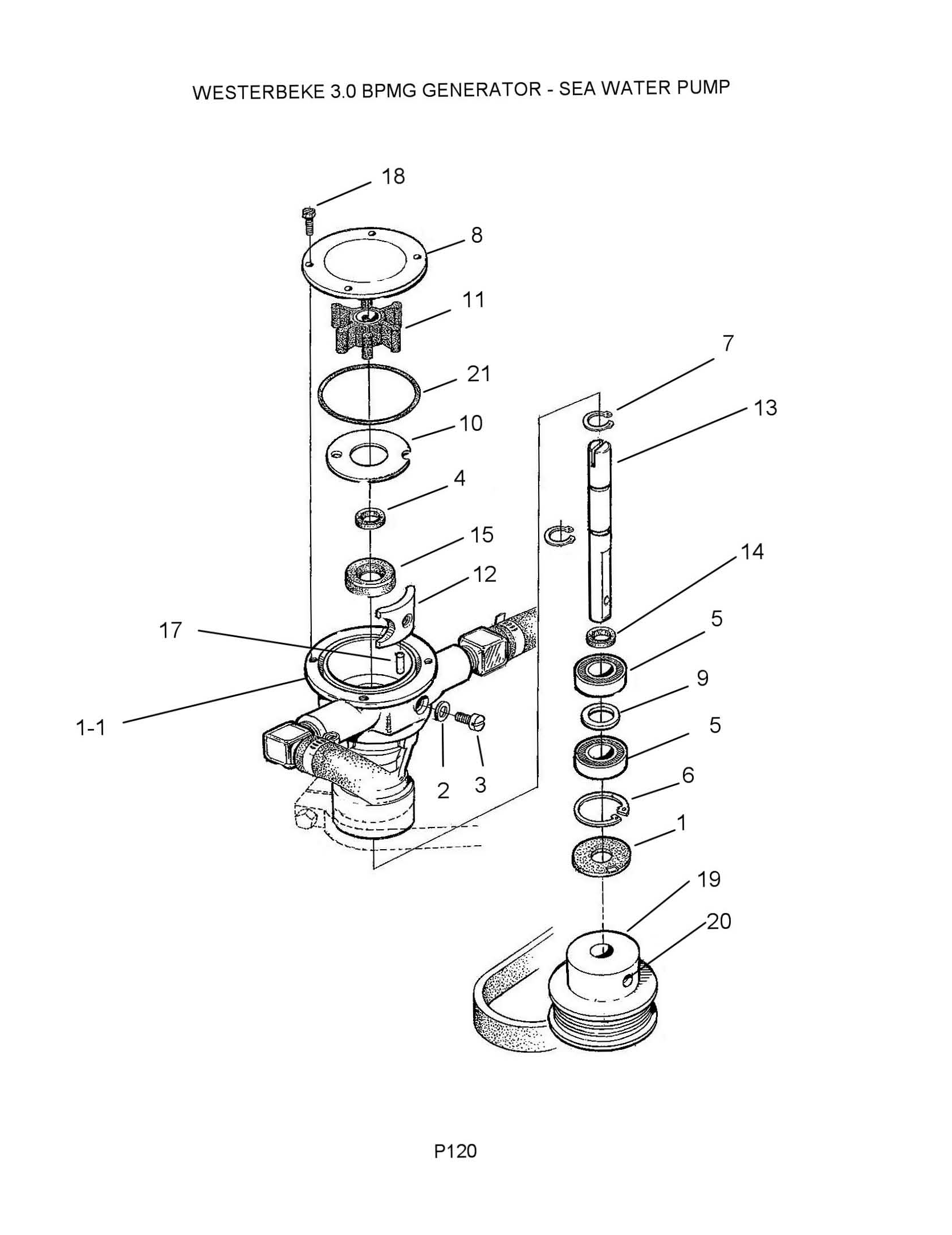

SEA WATER PUMP

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

COVER

Part #: 033033
$3.90
QTY:

Sold By: EA

1-1

On Diagram

PUMP

Part #: 046814
$410.20
QTY:

Sold By: EA

2

On Diagram

WASHER

Part #: 033037
$0.90
QTY:

Sold By: EA

3

On Diagram

SCREW

Part #: 033038
$1.00
QTY:

Sold By: EA

4

On Diagram

O-RING

Part #: 033041
$1.30
QTY:

Sold By: EA

5

On Diagram

BEARING

Part #: 033042
$19.10
QTY:

Sold By: EA

6

On Diagram

RING

Part #: 033044
$1.40
QTY:

Sold By: EA

7

On Diagram

RING

Part #: 033045

This part is made of steel, for a brass ring use part number 048255.

$1.10
QTY:

Sold By: EA

8

On Diagram

COVER

Part #: 046625
$13.40
QTY:

Sold By: EA

9

On Diagram

SPACER

Part #: 046630
$7.30
QTY:

Sold By: EA

10

On Diagram

PLATE

Part #: 046661
$14.50
QTY:

Sold By: EA

11

On Diagram

IMPELLER KIT 46814 PUMP

Part #: 048065
$50.10
QTY:

Sold By: KT

12

On Diagram

CAM

Part #: 048251
$50.90
QTY:

Sold By: EA

13

On Diagram

SHAFT

Part #: 048252
$94.10
QTY:

Sold By: EA

15

On Diagram

SEAL

Part #: 048254
$77.80
QTY:

Sold By: EA

16

On Diagram

RING

Part #: 048255

This part is made of brass, for a steel ring use part number 033045.

$5.20
QTY:

Sold By: EA

17

On Diagram

DOWEL

Part #: 302575
$1.50
QTY:

Sold By: EA

18

On Diagram

SCREW

Part #: 034463
$2.00
QTY:

Sold By: EA

19

On Diagram

PULLEY

Part #: 046864
$87.40
QTY:

Sold By: EA

20

On Diagram
$2.80
QTY:

Sold By: EA

21

On Diagram

O-RING

Part #: 046624
$1.40
QTY:

Sold By: EA
