Westerbeke Logo

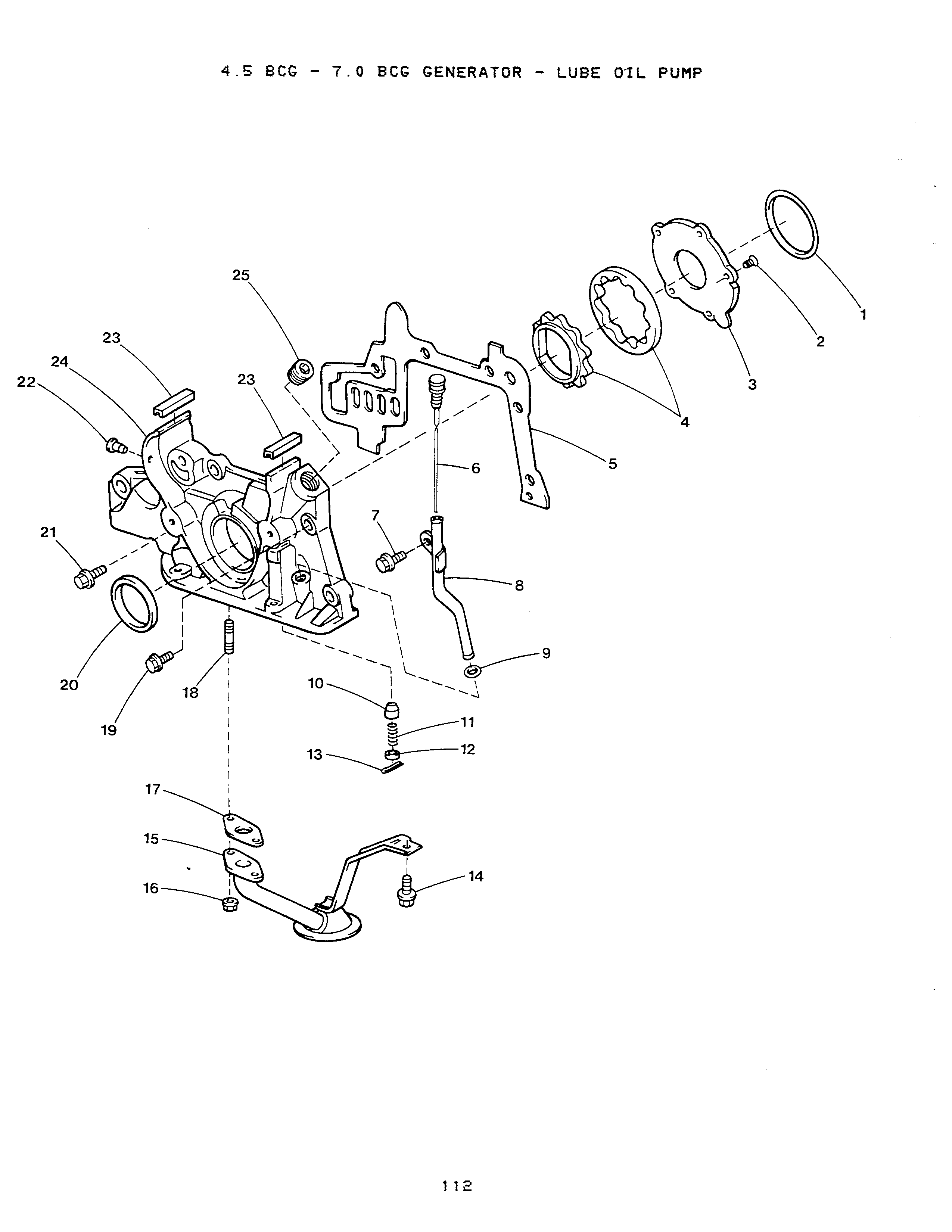

LUBE OIL PUMP

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

O-RING

Part #: 037945
$33.90
QTY:

Sold By: EA

2

On Diagram

SCREW

Part #: 038734
$2.10
QTY:

Sold By: EA

3

On Diagram

COVER

Part #: 037913

This part is no longer available.

$66.60
QTY:

Sold By: EA

4

On Diagram

ROTOR

Part #: 037912
$150.40
QTY:

Sold By: EA

5

On Diagram

GASKET

Part #: 037917
$53.30
QTY:

Sold By: EA

6

On Diagram

DIPSTICK

Part #: 037918
$77.60
QTY:

Sold By: EA

7

On Diagram

CAPSCREW M 8x16 JIS 4 W/LW-FW

Part #: 035801

This part is no longer available.

$3.40
QTY:

Sold By: EA

8-1

On Diagram

TUBE

Part #: 037874
$55.00
QTY:

Sold By: EA

8-2

On Diagram

TUBE

Part #: 041623
$66.60
QTY:

Sold By: EA

9

On Diagram

O-RING

Part #: 037977
$7.00
QTY:

Sold By: EA

10

On Diagram

VALVE

Part #: 037914
$21.80
QTY:

Sold By: EA

11

On Diagram

SPRING

Part #: 035652
$5.70
QTY:

Sold By: EA

12

On Diagram

RETAINER

Part #: 035586
$5.90
QTY:

Sold By: EA

13

On Diagram

PIN

Part #: 038735
$2.10
QTY:

Sold By: EA

14

On Diagram
$3.20
QTY:

Sold By: EA

15

On Diagram

STRAINER

Part #: 037915
$78.40
QTY:

Sold By: EA

16

On Diagram

NUT M 6 JIS-FLANGE

Part #: 036211
$3.40
QTY:

Sold By: EA

17

On Diagram

GASKET

Part #: 037916
$31.70
QTY:

Sold By: EA

18

On Diagram

STUD

Part #: 035683

This part is no longer available.

$4.00
QTY:

Sold By: EA

19

On Diagram
$5.30
QTY:

Sold By: EA

20

On Diagram

SEAL

Part #: 037949
$36.60
QTY:

Sold By: EA

21

On Diagram

BOLT

Part #: 038723

This part is no longer available.

$4.20
QTY:

Sold By: EA

22

On Diagram

PLUG

Part #: 038728

This part is no longer available.

$17.00
QTY:

Sold By: EA

23

On Diagram

SEAL

Part #: 037946
$4.30
QTY:

Sold By: EA

24-1

On Diagram

PUMP

Part #: 037911

This part is no longer available.

$374.10
QTY:

Sold By: EA

24-2

On Diagram

PUMP

Part #: 041638

This part is no longer available.

$425.00
QTY:

Sold By: EA

24-3

On Diagram

PUMP

Part #: 037911

This part is no longer available.

$374.10
QTY:

Sold By: EA

24-4

On Diagram

PUMP

Part #: 041638

This part is no longer available.

$425.00
QTY:

Sold By: EA

25

On Diagram

PLUG

Part #: 038727
$11.70
QTY:

Sold By: EA
