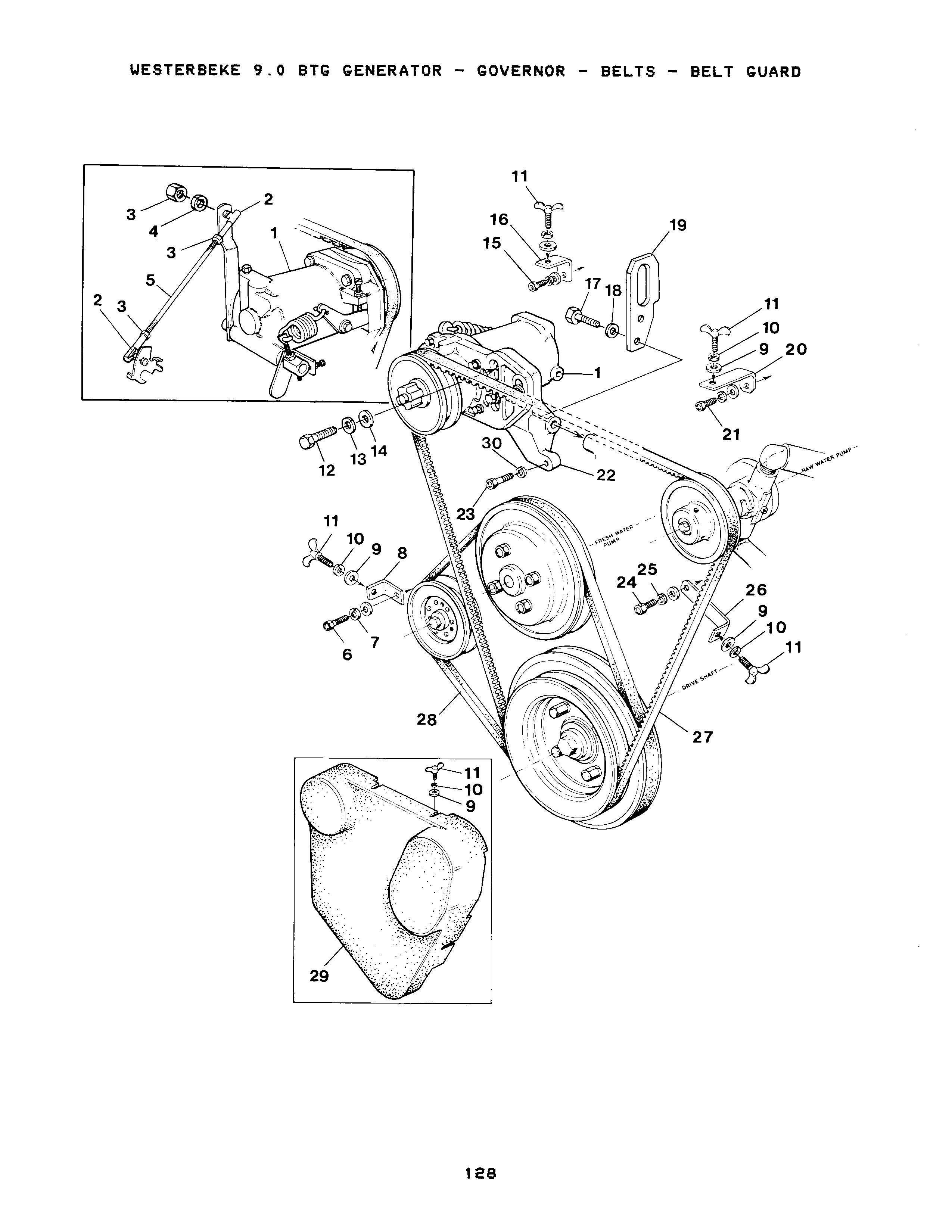

GOVERNOR - BELTS - BELT GUARD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GOVERNOR

Part #: 036380

This part is replaced with part number R036380

Price not found
QTY:

Sold By: EA

2

On Diagram

BALLJOINT

Part #: 019364
$15.00
QTY:

Sold By: EA

3

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

4

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

5

On Diagram

ROD

Part #: 036423
$19.40
QTY:

Sold By: EA

6

On Diagram
$4.60
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

8

On Diagram

BRACKET

Part #: 036418
$4.60
QTY:

Sold By: EA

9

On Diagram

WASHER

Part #: 033372
$0.40
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

11

On Diagram

WINGSCREW 10-32 x 1/2

Part #: 033228
$6.10
QTY:

Sold By: EA

12

On Diagram

CAPSCREW 3/8NCx1

Part #: 031605
$0.50
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

14

On Diagram

WASHER

Part #: 031765
$0.30
QTY:

Sold By: EA

15

On Diagram

BOLT

Part #: 035782
$3.80
QTY:

Sold By: EA

16

On Diagram

BRACKET

Part #: 036419
$4.60
QTY:

Sold By: EA

17

On Diagram
$3.50
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

19

On Diagram

EYE

Part #: 035267
$50.20
QTY:

Sold By: EA

20

On Diagram

BRACKET

Part #: 036417
$7.80
QTY:

Sold By: EA

21

On Diagram
$26.00
QTY:

Sold By: EA

22

On Diagram

BRACKET

Part #: 036368

This part is no longer available.

$262.10
QTY:

Sold By: EA

23

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

24

On Diagram

CAPSCREW M 6x30 DIN 933

Part #: 013590
$0.70
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

26

On Diagram

BRACKET

Part #: 035327
$12.90
QTY:

Sold By: EA

27

On Diagram

BELT

Part #: 033361
$63.40
QTY:

Sold By: EA

28

On Diagram

BELT

Part #: 013585
$69.70
QTY:

Sold By: EA

29

On Diagram

GUARD

Part #: 036396
$343.30
QTY:

Sold By: EA

30

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA
