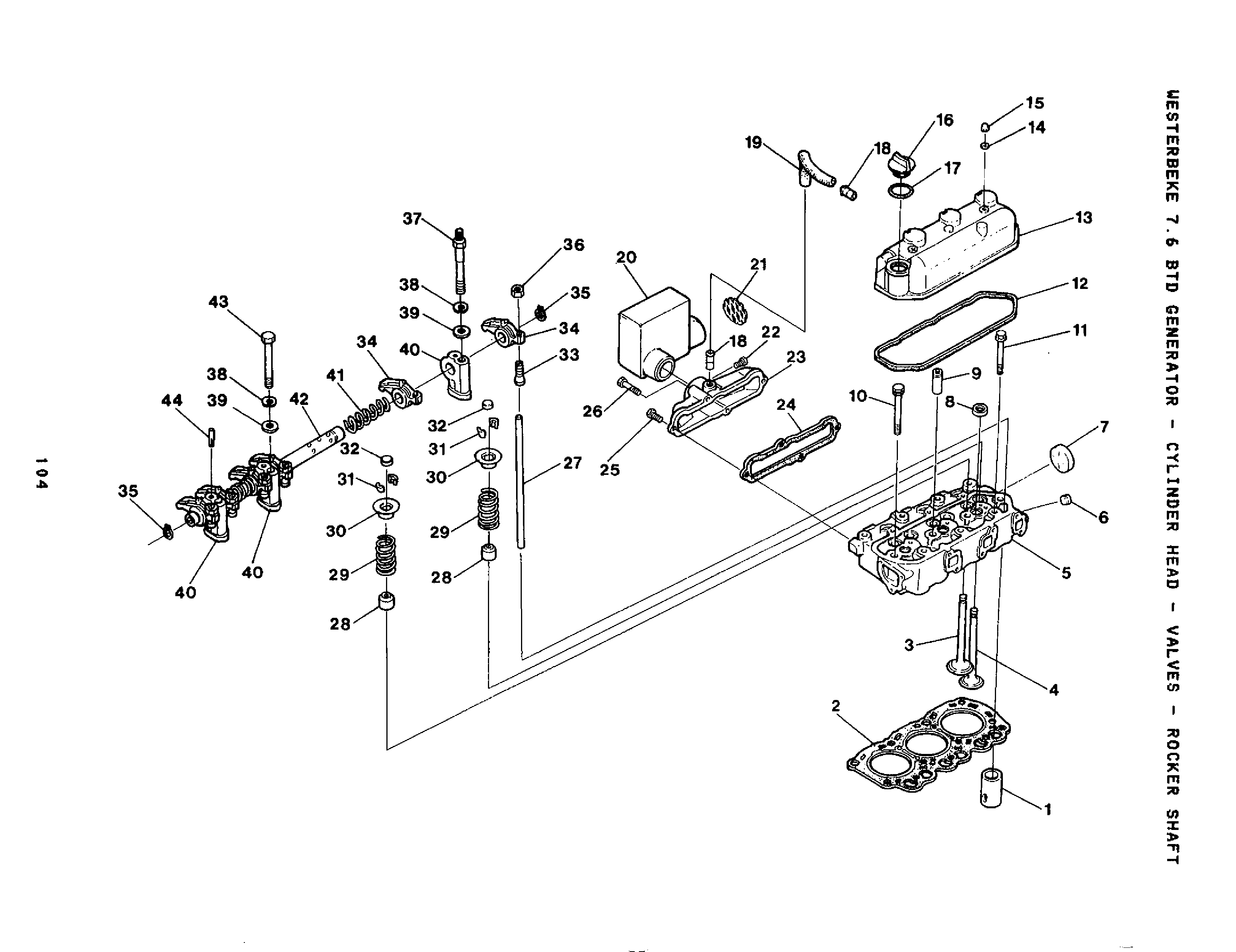

CYLINDER HEAD - VALVES - ROCKER SHAFT

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

TAPPET

Part #: 037056
$38.50
QTY:

Sold By: EA

2

On Diagram

GASKET

Part #: 036969
$195.20
QTY:

Sold By: EA

3

On Diagram

VALVE

Part #: 036958
$61.80
QTY:

Sold By: EA

4

On Diagram

VALVE

Part #: 036959
$61.80
QTY:

Sold By: EA

5

On Diagram

HEAD

Part #: 037084
$2,068.00
QTY:

Sold By: EA

6

On Diagram

PLUG 1/8-28 BSPT DIN 906

Part #: 030711
$4.40
QTY:

Sold By: EA

7

On Diagram

PLUG

Part #: 033657
$5.90
QTY:

Sold By: EA

8

On Diagram

PLUG

Part #: 024369
$4.70
QTY:

Sold By: EA

9

On Diagram

GUIDE

Part #: 033134
$44.80
QTY:

Sold By: EA

10

On Diagram

BOLT

Part #: 036954
$12.80
QTY:

Sold By: EA

11

On Diagram

BOLT

Part #: 036919
$6.20
QTY:

Sold By: EA

12

On Diagram

GASKET

Part #: 037007
$34.60
QTY:

Sold By: EA

13

On Diagram

COVER

Part #: 037087
$557.10
QTY:

Sold By: EA

14

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

15

On Diagram

NUT

Part #: 036936
$1.70
QTY:

Sold By: EA

16

On Diagram

CAP

Part #: 033126
$32.20
QTY:

Sold By: EA

17

On Diagram

O-RING

Part #: 033123
$3.30
QTY:

Sold By: EA

18

On Diagram

NIPPLE

Part #: 030219
$12.60
QTY:

Sold By: EA

19

On Diagram

HOSE

Part #: 037046
$10.40
QTY:

Sold By: EA

20

On Diagram

SILENCER

Part #: 037191
$107.80
QTY:

Sold By: EA

21

On Diagram

SCREEN

Part #: 034620
$5.80
QTY:

Sold By: EA

22-1

On Diagram

CAPSCREW M 6x16 DIN 933

Part #: 017012
$0.50
QTY:

Sold By: EA

22-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

22-3

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

23

On Diagram

MANIFOLD

Part #: 037008
$74.10
QTY:

Sold By: EA

24

On Diagram

GASKET

Part #: 036980
$17.90
QTY:

Sold By: EA

25

On Diagram

CAPSCREW M 6x20 DIN 933

Part #: 018804
$0.70
QTY:

Sold By: EA

26

On Diagram

CAPSCREW M 6x45 DIN 931

Part #: 034642
$0.70
QTY:

Sold By: EA

27

On Diagram

PUSHROD

Part #: 037026
$22.10
QTY:

Sold By: EA

28

On Diagram

SEAL

Part #: 030242
$16.10
QTY:

Sold By: EA

29

On Diagram

SPRING

Part #: 036986
$10.80
QTY:

Sold By: EA

30

On Diagram

SEAT

Part #: 033149
$11.20
QTY:

Sold By: EA

31

On Diagram

COLLET

Part #: 030241
$3.60
QTY:

Sold By: EA

32

On Diagram

CAP

Part #: 036979

This part is no longer available. Use part number 045181.

$11.80
QTY:

Sold By: EA

33

On Diagram

SCREW

Part #: 037029
$12.80
QTY:

Sold By: EA

34

On Diagram

ROCKER

Part #: 037027
$98.20
QTY:

Sold By: EA

35

On Diagram

RING

Part #: 033124
$1.50
QTY:

Sold By: EA

36

On Diagram

NUT M 6 DIN 439 JAM

Part #: 031801
$0.40
QTY:

Sold By: EA

37

On Diagram

BOLT

Part #: 037053
$26.00
QTY:

Sold By: EA

38

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

39

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

40

On Diagram

BRACKET

Part #: 033152

This part is no longer available.

$30.70
QTY:

Sold By: EA

41

On Diagram

SPRING

Part #: 033151
Price not found
QTY:

Sold By: EA

42

On Diagram

SHAFT

Part #: 036967
$152.80
QTY:

Sold By: EA

43

On Diagram

CAPSCREW M 8x60 DIN 931

Part #: 031225
$1.70
QTY:

Sold By: EA

44

On Diagram

PIN

Part #: 036960
$2.30
QTY:

Sold By: EA

45

On Diagram

EYE

Part #: 041250
$15.70
QTY:

Sold By: EA
