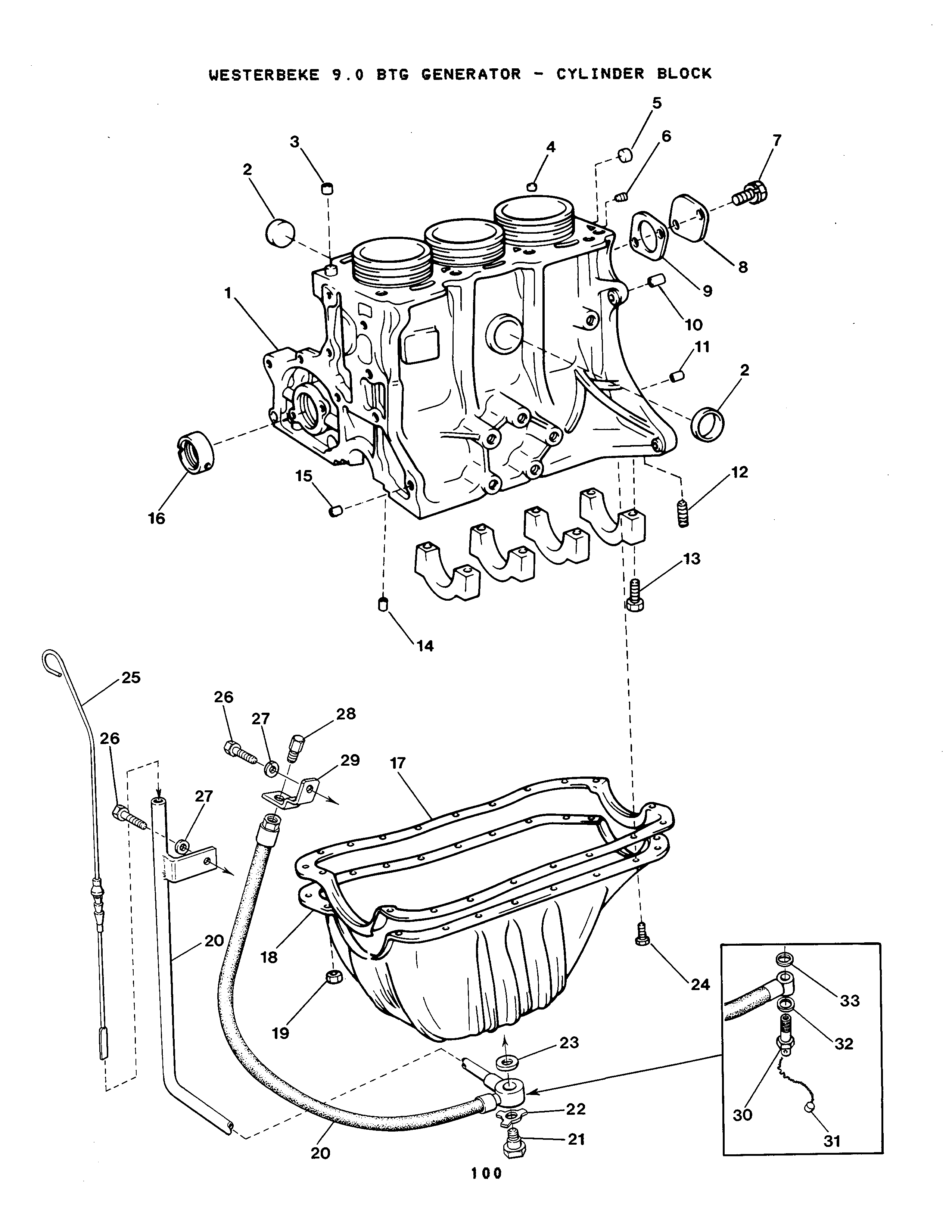

CYLINDER BLOCK

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

ENGINE

Part #: 035989

This part is no longer available.

$4,923.00
QTY:

Sold By: EA

1-2

On Diagram

BLOCK

Part #: 035497

This part is no longer available.

Price not found
QTY:

Sold By: each

2

On Diagram

PLUG

Part #: 024374
$4.70
QTY:

Sold By: EA

3

On Diagram

DOWEL

Part #: 035630
$6.80
QTY:

Sold By: EA

4

On Diagram

TUBE

Part #: 035498
Price not found
QTY:

Sold By: EA

5

On Diagram

PLUG

Part #: 024373
$4.70
QTY:

Sold By: EA

6

On Diagram

PLUG 1/4-19 BSPT

Part #: 030712
$4.30
QTY:

Sold By: EA

7

On Diagram
$2.20
QTY:

Sold By: EA

8

On Diagram

COVER

Part #: 035480

This part is no longer available.

$28.40
QTY:

Sold By: EA

9

On Diagram

GASKET

Part #: 035481

This part is no longer available.

Price not found
QTY:

Sold By: EA

10

On Diagram

DOWEL

Part #: 035629

This part is no longer available.

$6.00
QTY:

Sold By: EA

11

On Diagram

DOWEL

Part #: 035631

This part is no longer available.

$6.30
QTY:

Sold By: EA

12

On Diagram

STUD

Part #: 035683

This part is no longer available.

$4.00
QTY:

Sold By: EA

13

On Diagram

BOLT

Part #: 035661

This part is no longer available.

$13.70
QTY:

Sold By: EA

14

On Diagram

DOWEL

Part #: 035631

This part is no longer available.

$6.30
QTY:

Sold By: EA

15

On Diagram

DOWEL

Part #: 035631

This part is no longer available.

$6.30
QTY:

Sold By: EA

16-1

On Diagram

BEARING SET

Part #: 035507
$113.00
QTY:

Sold By: ST

16-2

On Diagram

BEARING SET

Part #: 035509

This part is no longer available.

$113.00
QTY:

Sold By: ST

17

On Diagram

GASKET

Part #: 035512
$118.60
QTY:

Sold By: EA

18

On Diagram

SUMP

Part #: 035510
$402.00
QTY:

Sold By: EA

19-1

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

19-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

20

On Diagram

TUBE

Part #: 036230
$165.20
QTY:

Sold By: EA

21-1

On Diagram

BOLT

Part #: 035270
$13.60
QTY:

Sold By: EA

21-2

On Diagram

BOLT

Part #: 036646
$13.80
QTY:

Sold By: EA

22

On Diagram

TABWASHER

Part #: 024913
$13.90
QTY:

Sold By: EA

23-1

On Diagram

WASHER

Part #: 035436
$2.40
QTY:

Sold By: EA

23-2

On Diagram

WASHER

Part #: 036647
$3.40
QTY:

Sold By: EA

24

On Diagram
$2.10
QTY:

Sold By: EA

25

On Diagram

DIPSTICK

Part #: 035592

This part is no longer available.

$51.80
QTY:

Sold By: EA

26

On Diagram
$2.10
QTY:

Sold By: EA

27

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

28

On Diagram

CAP 1/4 NPT BRASS

Part #: 024905
$5.40
QTY:

Sold By: EA

29

On Diagram

BRACKET

Part #: 024922
$11.20
QTY:

Sold By: EA

30

On Diagram

BOLT

Part #: 036823
$30.70
QTY:

Sold By: EA

31

On Diagram

SEAL

Part #: 037393
$1.30
QTY:

Sold By: EA

32

On Diagram

WASHER

Part #: 036493
$1.50
QTY:

Sold By: EA

33

On Diagram

WASHER

Part #: 036647
$3.40
QTY:

Sold By: EA
