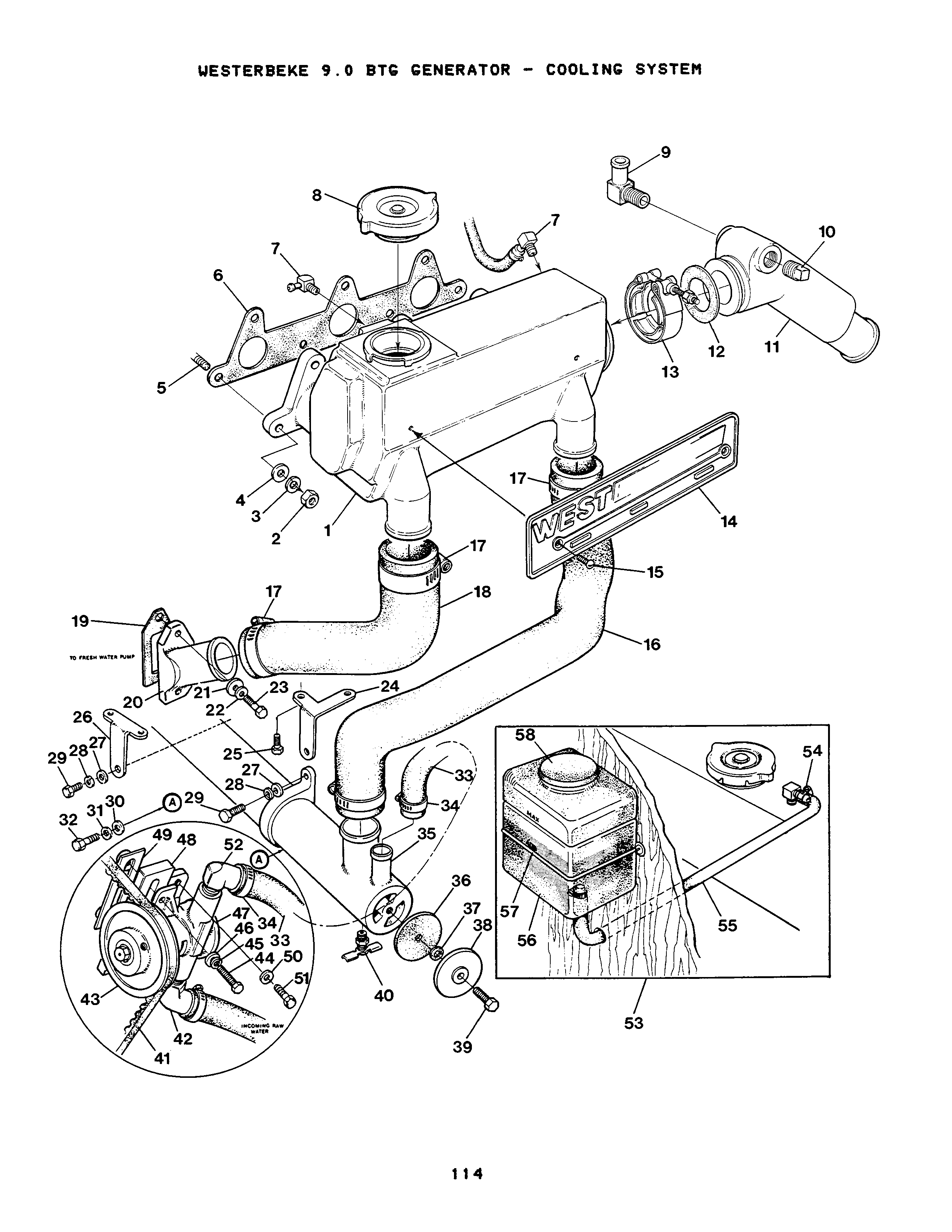

COOLING SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MANIFOLD

Part #: 037317
$1,027.20
QTY:

Sold By: EA

2

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

4

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

5

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

6

On Diagram

GASKET

Part #: 035154
$17.70
QTY:

Sold By: EA

7

On Diagram

ELBOW 1/8NPT x 5/16 HOSE

Part #: 024907
$24.80
QTY:

Sold By: EA

8

On Diagram

CAP

Part #: 024306
$10.80
QTY:

Sold By: EA

9

On Diagram

ELBOW 1/2NPT x 1 HOSE

Part #: 036616
$29.60
QTY:

Sold By: EA

10

On Diagram

PLUG 1/2 NPT

Part #: 035747
$12.90
QTY:

Sold By: EA

11

On Diagram

KIT

Part #: 037402
$173.30
QTY:

Sold By: KT

12

On Diagram

GASKET

Part #: 036425
$5.10
QTY:

Sold By: EA

13

On Diagram

CLAMP

Part #: 036541
$51.30
QTY:

Sold By: EA

14

On Diagram

NAMEPLATE

Part #: 035411

Please contact Westerbeke to obtain this part. Serial numbers of your engine or genset required.

Price not found
QTY:

Sold By: EA

15

On Diagram

SCREW 8-32 X 1/4 SS OVAL

Part #: 031935
$0.50
QTY:

Sold By: EA

16

On Diagram

HOSE

Part #: 035099
$41.80
QTY:

Sold By: EA

17

On Diagram

CLAMP

Part #: 021878
$3.40
QTY:

Sold By: EA

18

On Diagram

HOSE

Part #: 024334
$23.80
QTY:

Sold By: EA

19

On Diagram

GASKET

Part #: 035255
$2.10
QTY:

Sold By: EA

20

On Diagram

CONNECTOR

Part #: 035186

This part is no longer available.

$178.30
QTY:

Sold By: EA

21

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

22

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

23

On Diagram

CAPSCREW M 8x30 DIN 933

Part #: 013619
$0.60
QTY:

Sold By: EA

24

On Diagram

BRACKET

Part #: 035104
$49.00
QTY:

Sold By: EA

25

On Diagram
$2.10
QTY:

Sold By: EA

26

On Diagram

BRACKET

Part #: 035103
$76.40
QTY:

Sold By: EA

27

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

28

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

29

On Diagram

CAPSCREW 5/16NCx3/4

Part #: 031553
$0.40
QTY:

Sold By: EA

30

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

31

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

32

On Diagram

CAPSCREW 1/4NCx1-1/4

Part #: 031506
$0.50
QTY:

Sold By: EA

33

On Diagram

HOSE

Part #: 037443
$72.40
QTY:

Sold By: EA

34

On Diagram

CLAMP

Part #: 011386
$3.00
QTY:

Sold By: EA

35-1

On Diagram

EXCHANGER

Part #: 036901
$1,203.80
QTY:

Sold By: EA

35-2

On Diagram

NIPPLE 3/4 NPT x 1 HOSE

Part #: 036622
$134.80
QTY:

Sold By: EA

36

On Diagram

GASKET

Part #: 022851
$3.40
QTY:

Sold By: EA

37

On Diagram

O-RING

Part #: 019321
$0.60
QTY:

Sold By: EA

38

On Diagram

CAP

Part #: 022850
$16.00
QTY:

Sold By: EA

39

On Diagram
$4.30
QTY:

Sold By: EA

40

On Diagram

PETCOCK

Part #: 011471
$13.80
QTY:

Sold By: EA

41

On Diagram

BELT

Part #: 033361
$63.40
QTY:

Sold By: EA

42

On Diagram

ELBOW 3/8NPT x 1 HOSE

Part #: 036612
$22.40
QTY:

Sold By: EA

43

On Diagram

PULLEY

Part #: 035265
$287.30
QTY:

Sold By: EA

44

On Diagram

CAPSCREW 1/4NCx1-1/4

Part #: 031506
$0.50
QTY:

Sold By: EA

45

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

46

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

47

On Diagram

PUMP

Part #: 032617

This part is no longer available and was replaced with part number 042026 which is also no longer available and replaced with the current part number 055624See Parts Bulletin 2002-1 for more information.

Price not found
QTY:

Sold By: EA

48

On Diagram

BRACKET

Part #: 035260
$222.60
QTY:

Sold By: EA

49

On Diagram

PLATE

Part #: 033018
$9.20
QTY:

Sold By: EA

50

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

51

On Diagram
$2.10
QTY:

Sold By: EA

52

On Diagram

ELBOW 3/8NPT x 7/8 HOSE

Part #: 034710
$21.70
QTY:

Sold By: EA

53

On Diagram

TANK KIT

Part #: 024977
$68.60
QTY:

Sold By: KT

54

On Diagram

CLAMP

Part #: 024906
$2.00
QTY:

Sold By: EA

55

On Diagram

TUBING

Part #: 024637

This part is no longer available. Use part number 056526. ATTENTION - IMPORTANT: This tubing is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.40
QTY:

Sold By: IN

56

On Diagram

TANK

Part #: 024704

This tank DOES NOT include CAP part number 024858. Please order CAP 024858 separately.

$28.10
QTY:

Sold By: EA

57

On Diagram

STRAP

Part #: 024786
$13.20
QTY:

Sold By: EA

58

On Diagram

CAP

Part #: 024858
$0.50
QTY:

Sold By: EA

59

On Diagram

ADAPTER

Part #: 034722

This part is no longer available.

$356.00
QTY:

Sold By: EA

60

On Diagram

STUD

Part #: 011263
$4.00
QTY:

Sold By: EA

61

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

62

On Diagram

GASKET

Part #: 034724
$16.70
QTY:

Sold By: EA

63

On Diagram

GASKET

Part #: 034660
$14.00
QTY:

Sold By: EA

64

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

65

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

66

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

67

On Diagram

STUD

Part #: 011928
$11.00
QTY:

Sold By: EA

68

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

69

On Diagram

COVER

Part #: 034661
$15.50
QTY:

Sold By: EA

70

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

71

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

72

On Diagram

NIPPLE 1 NPT x 1-3/8 HOSE

Part #: 034424
$166.30
QTY:

Sold By: EA

74

On Diagram

MANIFOLD KIT

Part #: 037326
$986.20
QTY:

Sold By: KT

75

On Diagram

FLANGE

Part #: 034734

This part is replaced with part number 037326

$245.40
QTY:

Sold By: EA

76

On Diagram

STUD

Part #: 011263
$4.00
QTY:

Sold By: EA

77-1

On Diagram

NIPPLE 1.5 NPT CLOSE

Part #: 020439
$20.20
QTY:

Sold By: EA

77-2

On Diagram

ADAPTER

Part #: 036660
$112.40
QTY:

Sold By: EA

78

On Diagram

ELBOW

Part #: 033067
$315.50
QTY:

Sold By: EA

79

On Diagram

NIPPLE 1/2 NPT x 7/8 HOSE

Part #: 032230
$204.40
QTY:

Sold By: EA

80

On Diagram

ELBOW

Part #: 034486

This part requires periodic inspection and maintenance. See your Operator's Manual for the maintenance schedule.

$174.20
QTY:

Sold By: EA

81-1

On Diagram

ELBOW 1/2NPT x 7/8 HOSE

Part #: 030183
$23.30
QTY:

Sold By: EA

81-2

On Diagram

ELBOW 1/2NPT x 1 HOSE

Part #: 036616
$29.60
QTY:

Sold By: EA
