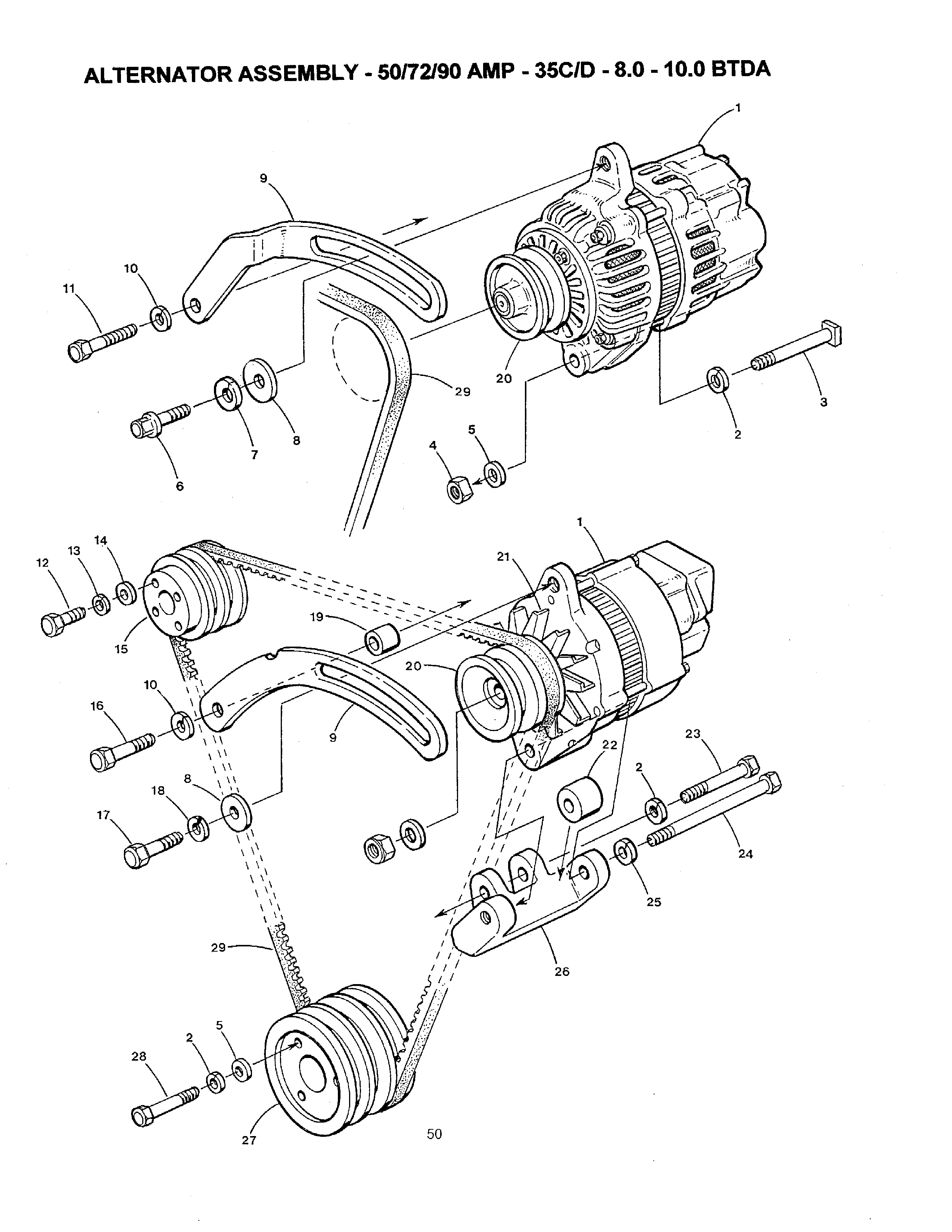

ALTERNATORS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

ALTERNATOR 12VDC

Part #: 043953
$1,079.80
QTY:

Sold By: EA

1-2

On Diagram

ALTERNATOR 24VDC

Part #: 044895
$688.10
QTY:

Sold By: EA

1-3

On Diagram

ALTERNATOR 12VDC 72A

Part #: 300746
$584.20
QTY:

Sold By: EA

1-4

On Diagram

ALTERNATOR

Part #: 042065

This part is replaced with part number 030735

Price not found
QTY:

Sold By: EA

1-5

On Diagram
$953.50
QTY:

Sold By: EA

1-6

On Diagram

ALTERNATOR 24VDC

Part #: 044338
$984.50
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

BOLT

Part #: 043954
$29.80
QTY:

Sold By: EA

4

On Diagram

NUT M10 X 1.25 DIN 934

Part #: 024950
$1.10
QTY:

Sold By: EA

5

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

6-1

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

6-2

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

7-1

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

7-2

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

8

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

9-1

On Diagram

STRAP

Part #: 047145
$22.10
QTY:

Sold By: EA

9-2

On Diagram

STRAP

Part #: 043998
$124.70
QTY:

Sold By: EA

9-3

On Diagram

STRAP

Part #: 040030
$91.70
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

11

On Diagram

CAPSCREW M 8x70 DIN 931

Part #: 018812
$3.30
QTY:

Sold By: EA

12

On Diagram

CAPSCREW M 6x16 DIN 933

Part #: 017012
$0.50
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

14

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

15

On Diagram

PULLEY

Part #: 043832
$262.40
QTY:

Sold By: EA

16

On Diagram

CAPSCREW M 8x75 DIN 931

Part #: 024983
$3.20
QTY:

Sold By: EA

17

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

19

On Diagram

SPACER

Part #: 040406
$34.30
QTY:

Sold By: EA

20-1

On Diagram

PULLEY

Part #: 048021
$67.40
QTY:

Sold By: EA

20-2

On Diagram

PULLEY

Part #: 043838
$205.50
QTY:

Sold By: EA

20-3

On Diagram

PULLEY

Part #: 011548
$111.90
QTY:

Sold By: EA

21

On Diagram

FAN

Part #: 042066
$18.10
QTY:

Sold By: EA

22-1

On Diagram

SPACER

Part #: 043844
$47.30
QTY:

Sold By: EA

22-2

On Diagram

SPACER

Part #: 033473
$50.80
QTY:

Sold By: EA

23

On Diagram
$3.90
QTY:

Sold By: EA

24-1

On Diagram

CAPSCREW 1/2NCx4-1/4

Part #: 031718
$9.00
QTY:

Sold By: EA

24-2

On Diagram

CAPSCREW 3/8NCx4-1/4

Part #: 031618
$1.50
QTY:

Sold By: EA

25-1

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

25-2

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

26-1

On Diagram

BRACKET

Part #: 043824
$296.60
QTY:

Sold By: EA

26-2

On Diagram

BRACKET

Part #: 043848

This part is no longer available. Use part number 055620.

$256.00
QTY:

Sold By: EA

27

On Diagram

PULLEY

Part #: 043830

This part is no longer available.

$220.70
QTY:

Sold By: EA

28

On Diagram
$4.40
QTY:

Sold By: EA

29-1

On Diagram

BELT

Part #: 045232
$31.80
QTY:

Sold By: EA

29-2

On Diagram

BELT

Part #: 037830
$81.70
QTY:

Sold By: EA

29-3

On Diagram

BELT

Part #: 035299
$81.70
QTY:

Sold By: EA

29-4

On Diagram

BELT

Part #: 030475
$25.10
QTY:

Sold By: EA

30

On Diagram

REGULATOR

Part #: 021611
$174.70
QTY:

Sold By: EA
