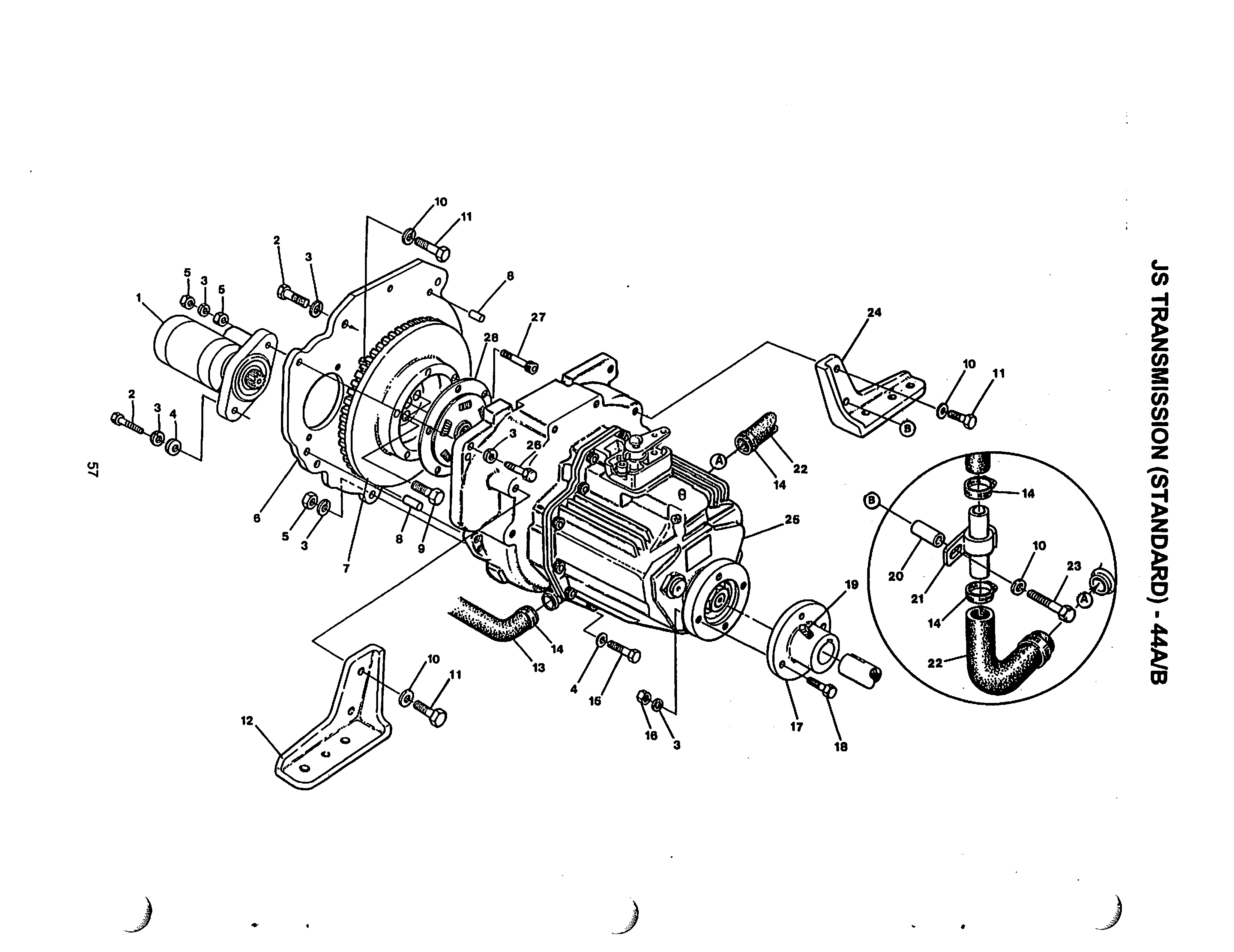

44A/B - BACK END - JS TRANSMISSION

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MOTOR

Part #: 030593
$1,892.70
QTY:

Sold By: EA

2

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

4

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

5

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

6

On Diagram

PLATE

Part #: 043416
$412.30
QTY:

Sold By: EA

7

On Diagram

FLYWHEEL ASSEMBLY

Part #: 041768
$609.50
QTY:

Sold By: EA

8

On Diagram

DOWEL

Part #: 013919
$1.10
QTY:

Sold By: EA

9

On Diagram

BOLT

Part #: 033279
$7.80
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

11

On Diagram
$3.00
QTY:

Sold By: EA

12

On Diagram

MOUNT

Part #: 042030

This part is no longer available.

$251.40
QTY:

Sold By: EA

13

On Diagram

HOSE

Part #: 044379
$66.60
QTY:

Sold By: EA

14

On Diagram

CLAMP

Part #: 011405
$3.20
QTY:

Sold By: EA

15

On Diagram

CAPSCREW M10x45 DIN 931

Part #: 034470
$1.40
QTY:

Sold By: EA

16

On Diagram

NUT M10 X 1.25 DIN 934

Part #: 024950
$1.10
QTY:

Sold By: EA

17-1

On Diagram

COUPLING 0.750

Part #: 023706
$343.30
QTY:

Sold By: EA

17-2

On Diagram

COUPLING 0.875

Part #: 023707
$365.60
QTY:

Sold By: EA

17-3

On Diagram

COUPLING 1.000

Part #: 023708
$475.70
QTY:

Sold By: EA

17-4

On Diagram

COUPLING 1.125

Part #: 023709
$631.00
QTY:

Sold By: EA

17-5

On Diagram

COUPLING 1.250

Part #: 023710
$631.00
QTY:

Sold By: EA

17-6

On Diagram

COUPLING 1.375

Part #: 023711

This part is no longer available.

$338.70
QTY:

Sold By: EA

17-7

On Diagram

COUPLING 1.500

Part #: 023712
$631.00
QTY:

Sold By: EA

18

On Diagram
$2.10
QTY:

Sold By: EA

19-1

On Diagram

SETSCREW

Part #: 023651

This part is no longer available.

Price not found
QTY:

Sold By: EA

19-2

On Diagram

SCREW

Part #: 023652
$7.30
QTY:

Sold By: EA

20

On Diagram

SPACER

Part #: 034189
$39.20
QTY:

Sold By: EA

21

On Diagram

CONNECTOR

Part #: 037504
$74.20
QTY:

Sold By: EA

22

On Diagram

HOSE

Part #: 037456

This part is replaced with part number 011779 (10 in. reqd.)

Price not found
QTY:

Sold By: EA

23

On Diagram
$5.30
QTY:

Sold By: EA

24

On Diagram

MOUNT

Part #: 042032
$214.30
QTY:

Sold By: EA

25

On Diagram

GEAR

Part #: 035822

This part is no longer available.

Price not found
QTY:

Sold By: EA

26

On Diagram
$5.10
QTY:

Sold By: EA

27

On Diagram

SCREW

Part #: 024778
$5.10
QTY:

Sold By: EA

28

On Diagram

DAMPER

Part #: 030940

This part is no longer available and is replaced with part number 056032.

Price not found
QTY:

Sold By: EA
