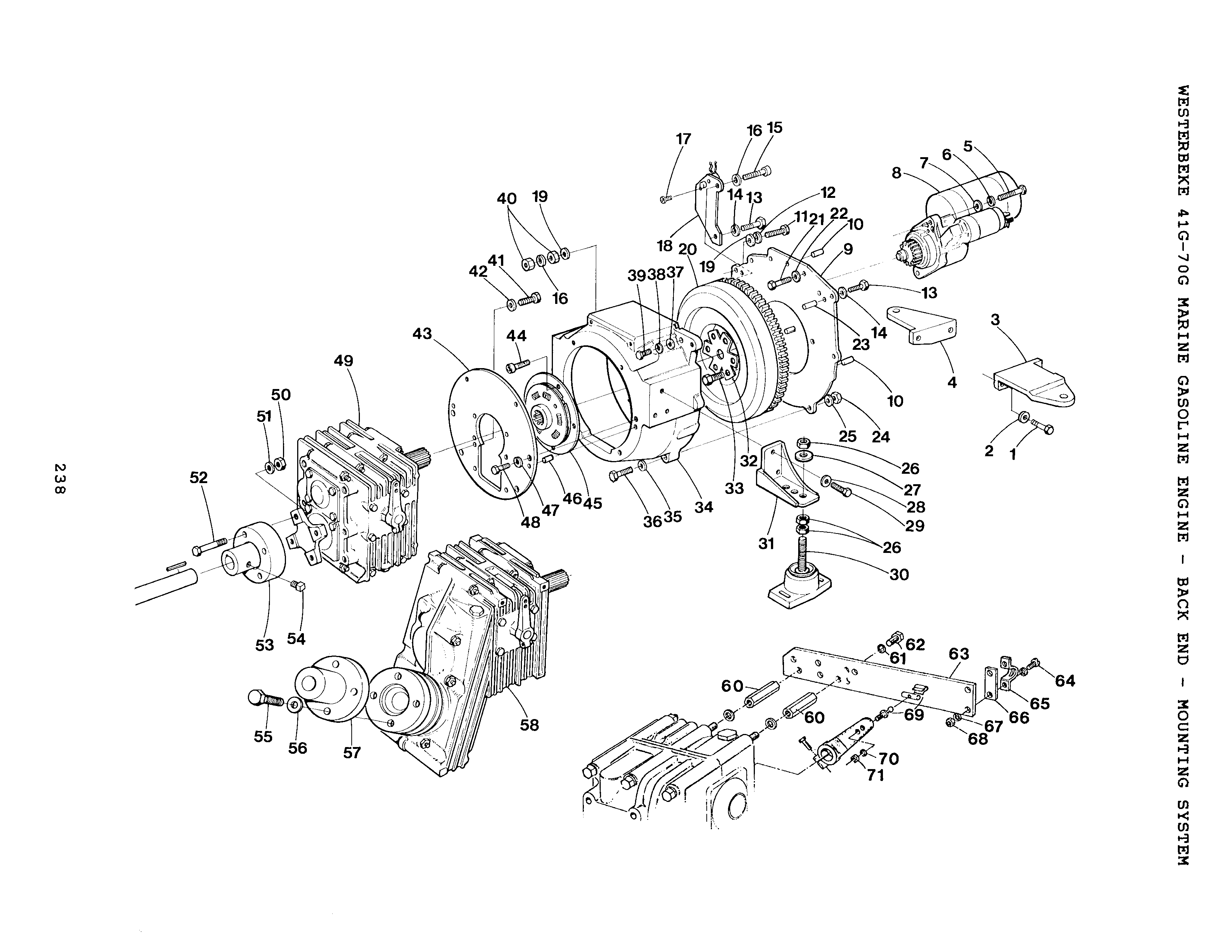

41G-70G - BACK END - MOUNTING SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram
$2.10
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

MOUNT

Part #: 034770

This part is no longer available.

$513.20
QTY:

Sold By: EA

4

On Diagram

MOUNT

Part #: 034768
$1,496.80
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

7

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

8

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

9

On Diagram

PLATE

Part #: 034624
$583.90
QTY:

Sold By: EA

10

On Diagram

DOWEL

Part #: 033311
$20.00
QTY:

Sold By: EA

11

On Diagram

CAPSCREW M10x55 DIN 933

Part #: 013631
$2.30
QTY:

Sold By: EA

12

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

13

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

14

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

15

On Diagram
$3.00
QTY:

Sold By: EA

16

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

17

On Diagram

SCREW 10-32 X 7/8 SS

Part #: 031875
$0.50
QTY:

Sold By: EA

18

On Diagram

BRACKET

Part #: 033602
$16.10
QTY:

Sold By: EA

19

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

20-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 034648
$837.80
QTY:

Sold By: EA

20-2

On Diagram

GEAR

Part #: 032996
$120.70
QTY:

Sold By: EA

21

On Diagram
$3.60
QTY:

Sold By: EA

22

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

23

On Diagram

DOWEL

Part #: 013919
$1.10
QTY:

Sold By: EA

24

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

26

On Diagram

NUT 5/8-18 NF JAM

Part #: 031826
$0.90
QTY:

Sold By: EA

27

On Diagram

LOCKWASHER 5/8 MED

Part #: 031827
$0.30
QTY:

Sold By: EA

28

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

29

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

30

On Diagram

ISOLATOR 40 DUR

Part #: 032013
$201.50
QTY:

Sold By: EA

31

On Diagram

MOUNT

Part #: 033890
$284.20
QTY:

Sold By: EA

32

On Diagram

TABWASHER

Part #: 033863
$65.10
QTY:

Sold By: EA

33

On Diagram
$2.50
QTY:

Sold By: EA

34

On Diagram

HOUSING

Part #: 034682
$2,629.60
QTY:

Sold By: EA

35

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

36

On Diagram

CAPSCREW M10x45 DIN 931

Part #: 034470
$1.40
QTY:

Sold By: EA

37

On Diagram

WASHER M12 DIN 125

Part #: 031793
$0.50
QTY:

Sold By: EA

38

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

39

On Diagram
$4.60
QTY:

Sold By: EA

40

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

41-1

On Diagram

CAPSCREW M 8x18 DIN 933

Part #: 020650
$0.70
QTY:

Sold By: EA

41-2

On Diagram

CAPSCREW M10x40 DIN 933

Part #: 034590
$1.70
QTY:

Sold By: EA

42-1

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

42-2

On Diagram

WASHER M10 DIN 137B

Part #: 031790
$0.30
QTY:

Sold By: EA

43-1

On Diagram

ADAPTER

Part #: 031267
$294.30
QTY:

Sold By: EA

43-2

On Diagram

ADAPTER

Part #: 030063
$216.70
QTY:

Sold By: EA

44

On Diagram

SCREW

Part #: 024778
$5.10
QTY:

Sold By: EA

45-1

On Diagram

DAMPER

Part #: 019398
$1,219.30
QTY:

Sold By: EA

45-2

On Diagram

DAMPER

Part #: 030789

This part is no longer available.

Price not found
QTY:

Sold By: each

45-3

On Diagram

DAMPER

Part #: 011618
$705.20
QTY:

Sold By: EA

46

On Diagram

DOWEL

Part #: 019039
$1.20
QTY:

Sold By: EA

47

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

48

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

49-1

On Diagram

HBW GEAR

Part #: 030140

This part is no longer available.

Price not found
QTY:

Sold By: EA

49-2

On Diagram

HBW GEAR

Part #: 024630

This part is no longer available.

Price not found
QTY:

Sold By: EA

49-3

On Diagram

HBW GEAR

Part #: 031248
Price not found
QTY:

Sold By: EA

49-4

On Diagram

TRANSMISSION 1.9:1 ZF15M

Part #: 024631
$2,085.80
QTY:

Sold By: EA

49-5

On Diagram

TRANSMISSION 2.6:1 ZF12M

Part #: 030049

This part is no longer available.

$2,022.90
QTY:

Sold By: EA

50

On Diagram

NUT M10 X 1.25 DIN 934

Part #: 024950
$1.10
QTY:

Sold By: EA

51

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

52

On Diagram
$2.10
QTY:

Sold By: EA

53-1

On Diagram

COUPLING

Part #: 023679

This part is replaced with part number 023706

Price not found
QTY:

Sold By: EA

53-2

On Diagram

COUPLING

Part #: 023680

This part is replaced with part number 023707

Price not found
QTY:

Sold By: EA

53-3

On Diagram

COUPLING

Part #: 023681

This part is replaced with part number 023708

Price not found
QTY:

Sold By: EA

53-4

On Diagram

COUPLING

Part #: 023682

This part is replaced with part number 023709

Price not found
QTY:

Sold By: EA

53-5

On Diagram

COUPLING

Part #: 023683

This part is replaced with part number 023710

Price not found
QTY:

Sold By: EA

53-6

On Diagram

COUPLING

Part #: 023684

This part is replaced with part number 023711

Price not found
QTY:

Sold By: EA

53-7

On Diagram

COUPLING

Part #: 023685

This part is replaced with part number 023712

Price not found
QTY:

Sold By: EA

54-1

On Diagram

SETSCREW

Part #: 023450
$4.10
QTY:

Sold By: EA

54-2

On Diagram

SETSCREW

Part #: 023651

This part is no longer available.

Price not found
QTY:

Sold By: EA

54-3

On Diagram

SCREW

Part #: 023652
$7.30
QTY:

Sold By: EA

55

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

56

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

57-1

On Diagram

COUPLING 0.750

Part #: 023706
$343.30
QTY:

Sold By: EA

57-2

On Diagram

COUPLING 0.875

Part #: 023707
$365.60
QTY:

Sold By: EA

57-3

On Diagram

COUPLING 1.000

Part #: 023708
$475.70
QTY:

Sold By: EA

57-4

On Diagram

COUPLING 1.125

Part #: 023709
$631.00
QTY:

Sold By: EA

57-5

On Diagram

COUPLING 1.250

Part #: 023710
$631.00
QTY:

Sold By: EA

57-6

On Diagram

COUPLING 1.375

Part #: 023711

This part is no longer available.

$338.70
QTY:

Sold By: EA

57-7

On Diagram

COUPLING 1.500

Part #: 023712
$631.00
QTY:

Sold By: EA

58-1

On Diagram

HBW GEAR

Part #: 031249

This part is no longer available.

Price not found
QTY:

Sold By: EA

58-2

On Diagram

TRANSMISSION 2:1 ZF15MIV

Part #: 030048
$3,516.00
QTY:

Sold By: EA

58-3

On Diagram

TRANSMISSION 3:1 ZF15MIV

Part #: 031250

This part is no longer available.

$3,930.30
QTY:

Sold By: EA

59

On Diagram

GEAR

Part #: 035816

This part is no longer available.

Price not found
QTY:

Sold By: each

60

On Diagram

NUT

Part #: 030716

This part is replaced with part number 033657

Price not found
QTY:

Sold By: EA

61

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

62

On Diagram

CAPSCREW 3/8NFx1

Part #: 031630
$0.50
QTY:

Sold By: EA

63-1

On Diagram

BRACKET

Part #: 032161
$32.10
QTY:

Sold By: EA

63-2

On Diagram

BRACKET

Part #: 030181
$27.50
QTY:

Sold By: EA

64

On Diagram

SCREW 10-32 X 5/8 SS

Part #: 031873
$0.50
QTY:

Sold By: EA

65

On Diagram

CLAMP

Part #: 013325
$4.00
QTY:

Sold By: EA

66

On Diagram

SHIM

Part #: 013870
$3.20
QTY:

Sold By: EA

67

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

68

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

69

On Diagram

BALLJOINT

Part #: 033482
$15.00
QTY:

Sold By: EA

70

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

71

On Diagram

NUT 1/4-28 NF

Part #: 031754
$0.20
QTY:

Sold By: EA

72

On Diagram

COOLER

Part #: 034544
$354.70
QTY:

Sold By: EA

73

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

74

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

75

On Diagram

ELBOW 1/2NPT x 7/8 HOSE

Part #: 030183
$23.30
QTY:

Sold By: EA
