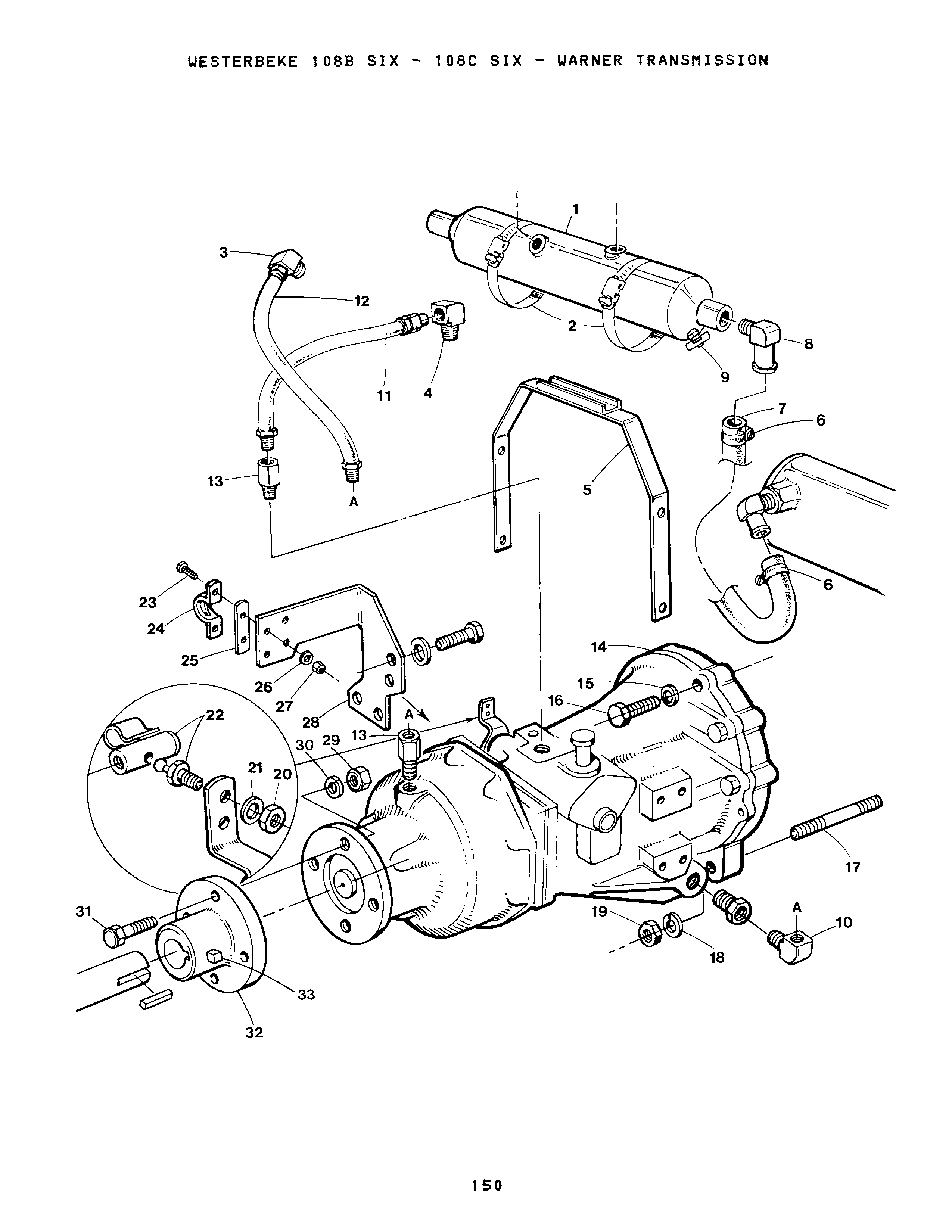

108B/C - WARNER TRANSMISSION

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

COOLER

Part #: 036650
$383.20
QTY:

Sold By: EA

2

On Diagram

CLAMP

Part #: 011411
$3.60
QTY:

Sold By: EA

3

On Diagram

ELBOW

Part #: 013330
$49.30
QTY:

Sold By: EA

4

On Diagram
$9.20
QTY:

Sold By: EA

5

On Diagram

BRACKET

Part #: 013057
$121.30
QTY:

Sold By: EA

6

On Diagram

CLAMP

Part #: 011405
$3.20
QTY:

Sold By: EA

7

On Diagram

HOSE 1 IN WIRE INSERTED

Part #: 011779

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$1.70
QTY:

Sold By: IN

8

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

9

On Diagram

PETCOCK

Part #: 011471
$13.80
QTY:

Sold By: EA

10

On Diagram

ELBOW

Part #: 013330
$49.30
QTY:

Sold By: EA

11

On Diagram

HOSE

Part #: 011921
$106.00
QTY:

Sold By: EA

12-1

On Diagram

HOSE

Part #: 022114
$144.50
QTY:

Sold By: EA

12-2

On Diagram

HOSE

Part #: 023567
$153.50
QTY:

Sold By: EA

13-1

On Diagram

CONNECTOR

Part #: 013348
$11.70
QTY:

Sold By: EA

13-2

On Diagram

CONNECTOR

Part #: 013348
$11.70
QTY:

Sold By: EA

14-1

On Diagram

TRANSMISSION 1:1 HYD 71

Part #: 011630
$4,654.70
QTY:

Sold By: EA

14-2

On Diagram

TRANSMISSION 1.5:1 HYD 71

Part #: 011631
$5,875.30
QTY:

Sold By: EA

14-3

On Diagram

GEAR

Part #: 037297

This part is no longer available.

Price not found
QTY:

Sold By: EA

14-4

On Diagram

GEAR

Part #: 011632

This part is no longer available.

Price not found
QTY:

Sold By: EA

14-5

On Diagram

GEAR

Part #: 011633

This part is no longer available.

Price not found
QTY:

Sold By: EA

14-6

On Diagram

GEAR

Part #: 011634

This part is no longer available.

Price not found
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

16

On Diagram

CAPSCREW 7/16NCx3-1/2

Part #: 031665
$2.50
QTY:

Sold By: EA

17

On Diagram

STUD

Part #: 023467
$1.70
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

19

On Diagram

NUT 7/16-14 NC

Part #: 031768
$0.40
QTY:

Sold By: EA

20

On Diagram

NUT 1/4-28 NF

Part #: 031754
$0.20
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

22

On Diagram

BALLJOINT

Part #: 033482
$15.00
QTY:

Sold By: EA

23

On Diagram

SCREW 10-32 X 5/8 SS

Part #: 031873
$0.50
QTY:

Sold By: EA

24

On Diagram

CLAMP

Part #: 013325
$4.00
QTY:

Sold By: EA

25

On Diagram

SHIM

Part #: 013870
$3.20
QTY:

Sold By: EA

26

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

27

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

28

On Diagram

BRACKET

Part #: 032315
$116.20
QTY:

Sold By: EA

29

On Diagram

NUT 7/16-14 NC

Part #: 031768
$0.40
QTY:

Sold By: EA

30

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

31

On Diagram

CAPSCREW 7/16NCx1

Part #: 031655
$1.30
QTY:

Sold By: EA

32-10

On Diagram

COUPLING

Part #: 011963

This part is replaced with part number 023688

Price not found
QTY:

Sold By: EA

32-1

On Diagram

COUPLING 0.750

Part #: 023706
$343.30
QTY:

Sold By: EA

32-11

On Diagram

COUPLING

Part #: 011964

This part is replaced with part number 023689

Price not found
QTY:

Sold By: EA

32-12

On Diagram

COUPLING

Part #: 023609

This part is replaced with part number 023690

Price not found
QTY:

Sold By: EA

32-13

On Diagram

COUPLING 1.75IN BORE

Part #: 039323
$157.00
QTY:

Sold By: EA

32-2

On Diagram

COUPLING 0.875

Part #: 023707
$365.60
QTY:

Sold By: EA

32-3

On Diagram

COUPLING 1.000

Part #: 023708
$475.70
QTY:

Sold By: EA

32-4

On Diagram

COUPLING 1.125

Part #: 023709
$631.00
QTY:

Sold By: EA

32-5

On Diagram

COUPLING 1.250

Part #: 023710
$631.00
QTY:

Sold By: EA

32-6

On Diagram

COUPLING 1.375

Part #: 023711

This part is no longer available.

$338.70
QTY:

Sold By: EA

32-7

On Diagram

COUPLING 1.500

Part #: 023712
$631.00
QTY:

Sold By: EA

32-8

On Diagram

COUPLING

Part #: 011961

This part is replaced with part number 023686

Price not found
QTY:

Sold By: EA

32-9

On Diagram

COUPLING

Part #: 011962

This part is replaced with part number 023687

$84.00
QTY:

Sold By: EA

33-1

On Diagram

SCREW

Part #: 023652
$7.30
QTY:

Sold By: EA

33-2

On Diagram

SCREW

Part #: 023653
$3.60
QTY:

Sold By: EA
