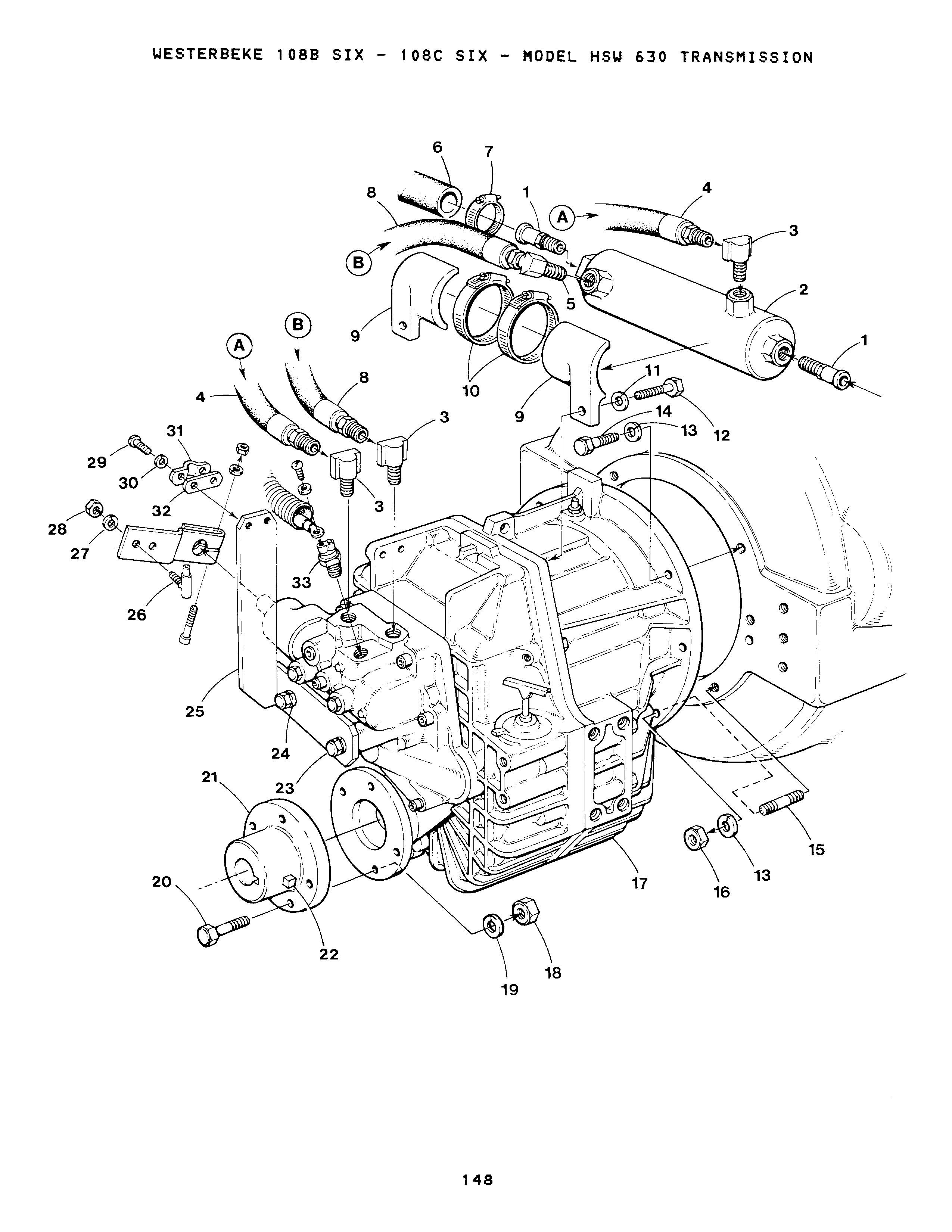

108B/C - HSW 630 TRANSMISSION

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

NIPPLE 3/4 NPT x 1 HOSE

Part #: 036622
$134.80
QTY:

Sold By: EA

2

On Diagram

COOLER

Part #: 036650
$383.20
QTY:

Sold By: EA

3

On Diagram

ELBOW

Part #: 013330
$49.30
QTY:

Sold By: EA

4

On Diagram

HOSE

Part #: 023567
$153.50
QTY:

Sold By: EA

5

On Diagram

ELBOW

Part #: 013331
$41.60
QTY:

Sold By: EA

6

On Diagram

HOSE 1 IN WIRE INSERTED

Part #: 011779

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$1.70
QTY:

Sold By: IN

7

On Diagram

CLAMP

Part #: 011405
$3.20
QTY:

Sold By: EA

8

On Diagram

HOSE

Part #: 036121
$140.70
QTY:

Sold By: EA

9

On Diagram

BRACKET

Part #: 039155
$218.30
QTY:

Sold By: ST

10

On Diagram

CLAMP

Part #: 011411
$3.60
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

12

On Diagram

CAPSCREW M10x40 DIN 933

Part #: 034590
$1.70
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

14

On Diagram

CAPSCREW 7/16NCx1-1/4

Part #: 031656
$0.70
QTY:

Sold By: EA

15

On Diagram

STUD

Part #: 039276
$15.90
QTY:

Sold By: EA

16

On Diagram

NUT 7/16-14 NC

Part #: 031768
$0.40
QTY:

Sold By: EA

17-1

On Diagram

TRANSMISSION 2:1 ZF63

Part #: 038608

This part is no longer available.

$4,306.10
QTY:

Sold By: EA

17-2

On Diagram

TRANSMISSION 2.5:1 ZF63

Part #: 039789
$4,145.20
QTY:

Sold By: EA

17-3

On Diagram

TRANSMISSION 2.8:1 ZF63

Part #: 038609
$4,145.20
QTY:

Sold By: EA

17-4

On Diagram

TRANSMISSION 2:1 ZF63A

Part #: 038610

This part is no longer available.

$2,857.60
QTY:

Sold By: EA

17-5

On Diagram

TRANSMISSION 2.5:1 ZF63A

Part #: 038611

This part is no longer available.

$2,857.60
QTY:

Sold By: EA

17-6

On Diagram

TRANSMISSION 2:1 ZF63V

Part #: 038132
$3,758.90
QTY:

Sold By: EA

18

On Diagram

NUT 7/16-20 NF

Part #: 031772

This part is no longer available.

$0.60
QTY:

Sold By: EA

19

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

20

On Diagram

CAPSCREW 7/16NFx1-1/2

Part #: 031682
$1.40
QTY:

Sold By: EA

21-1

On Diagram

COUPLING

Part #: 011961

This part is replaced with part number 023686

Price not found
QTY:

Sold By: EA

21-2

On Diagram

COUPLING

Part #: 011962

This part is replaced with part number 023687

$84.00
QTY:

Sold By: EA

21-3

On Diagram

COUPLING

Part #: 011963

This part is replaced with part number 023688

Price not found
QTY:

Sold By: EA

21-4

On Diagram

COUPLING

Part #: 011964

This part is replaced with part number 023689

Price not found
QTY:

Sold By: EA

21-5

On Diagram

COUPLING

Part #: 023609

This part is replaced with part number 023690

Price not found
QTY:

Sold By: EA

21-6

On Diagram

COUPLING 1.75IN BORE

Part #: 039323
$157.00
QTY:

Sold By: EA

22

On Diagram

SCREW

Part #: 023653
$3.60
QTY:

Sold By: EA

23

On Diagram

CAPSCREW 3/8NCx3/4

Part #: 031603
$0.50
QTY:

Sold By: EA

24

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

25

On Diagram

BRACKET

Part #: 039154
$140.30
QTY:

Sold By: EA

26

On Diagram

BALLJOINT

Part #: 033482
$15.00
QTY:

Sold By: EA

27

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

28

On Diagram

NUT 1/4-28 NF

Part #: 031754
$0.20
QTY:

Sold By: EA

29

On Diagram

SCREW 10-32 X 5/8 SS

Part #: 031873
$0.50
QTY:

Sold By: EA

30

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

31

On Diagram

CLAMP

Part #: 013325
$4.00
QTY:

Sold By: EA

32

On Diagram

SHIM

Part #: 013870
$3.20
QTY:

Sold By: EA
