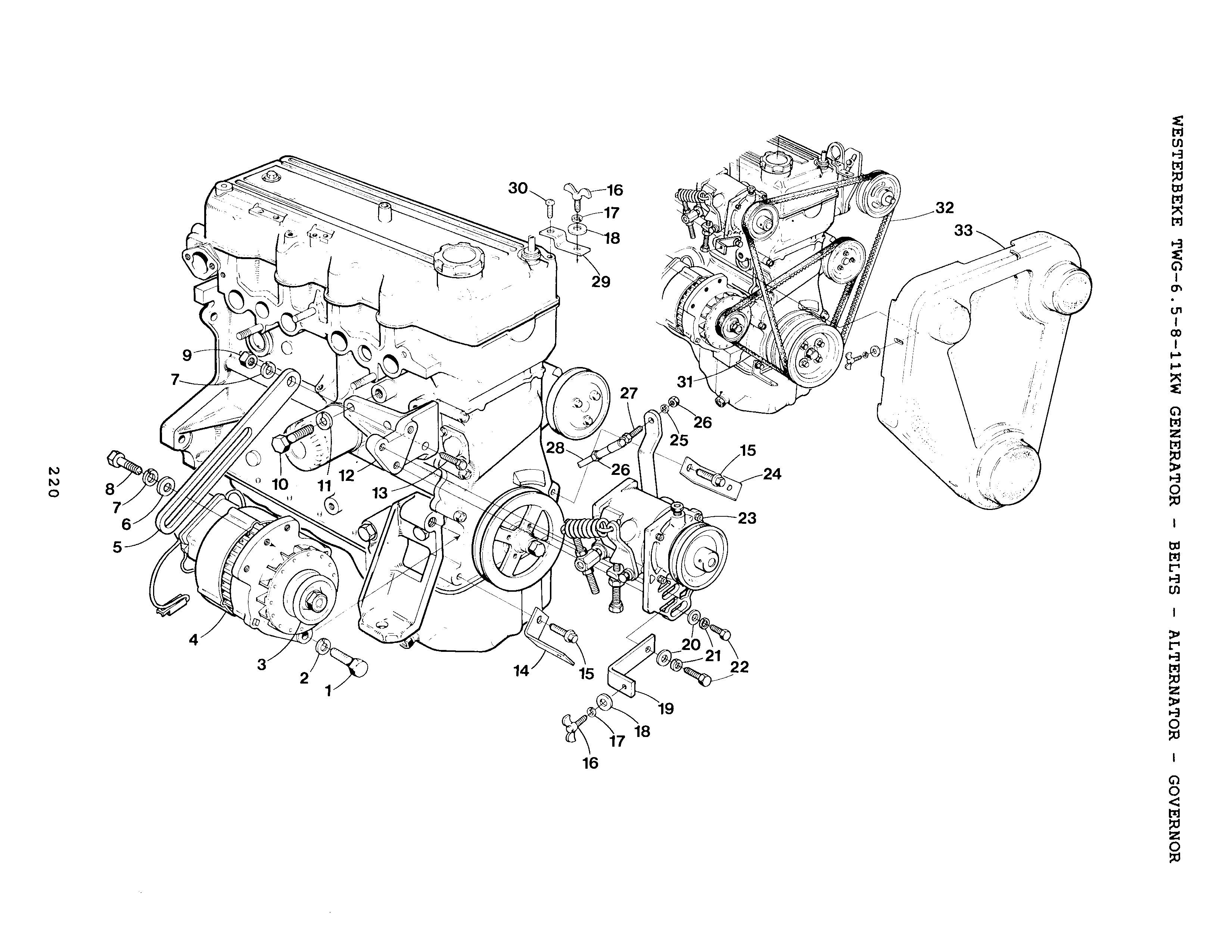

TWG-6.5-8-11KW - BELTS - ALTERNATOR - GOVERNOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

CAPSCREW 1/2NCx2-1/2

Part #: 031711
$6.20
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

3

On Diagram

PULLEY

Part #: 011548
$111.90
QTY:

Sold By: EA

4

On Diagram

ALTERNATOR 12VDC 51A

Part #: 024684

This part is no longer available.

$640.10
QTY:

Sold By: EA

5

On Diagram

STRAP

Part #: 033064
$62.40
QTY:

Sold By: EA

6

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

8

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

9

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

10

On Diagram
$9.90
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER M14 DIN 127

Part #: 031797
$0.50
QTY:

Sold By: EA

12

On Diagram

BRACKET

Part #: 033252
$132.80
QTY:

Sold By: EA

13

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

14

On Diagram

BRACKET

Part #: 033227
$4.80
QTY:

Sold By: EA

15

On Diagram
$5.10
QTY:

Sold By: EA

16

On Diagram

WINGSCREW 10-32 x 1/2

Part #: 033228
$6.10
QTY:

Sold By: EA

17

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

18

On Diagram

WASHER

Part #: 033372
$0.40
QTY:

Sold By: EA

19

On Diagram

BRACKET

Part #: 033699
$41.70
QTY:

Sold By: EA

20

On Diagram

WASHER

Part #: 031765
$0.30
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

22

On Diagram

CAPSCREW 3/8NCx1-1/4

Part #: 031606
$0.50
QTY:

Sold By: EA

23

On Diagram

GOVERNOR

Part #: 033560

This part is replaced with part number R033560

Price not found
QTY:

Sold By: EA

24

On Diagram

BRACKET

Part #: 033380
$11.80
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

26

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

27

On Diagram

BALLJOINT

Part #: 019364
$15.00
QTY:

Sold By: EA

28

On Diagram

ROD

Part #: 033317
$6.20
QTY:

Sold By: EA

29

On Diagram

BRACKET

Part #: 033607
$12.60
QTY:

Sold By: EA

30

On Diagram

SCREW M 5 X 12 TAPPING

Part #: 034175
$1.40
QTY:

Sold By: EA

31

On Diagram

BELT

Part #: 030592
$24.00
QTY:

Sold By: EA

32

On Diagram

BELT

Part #: 033681
$67.60
QTY:

Sold By: EA

33

On Diagram

GUARD

Part #: 033573

This part is replaced with part number 036237

Price not found
QTY:

Sold By: EA
