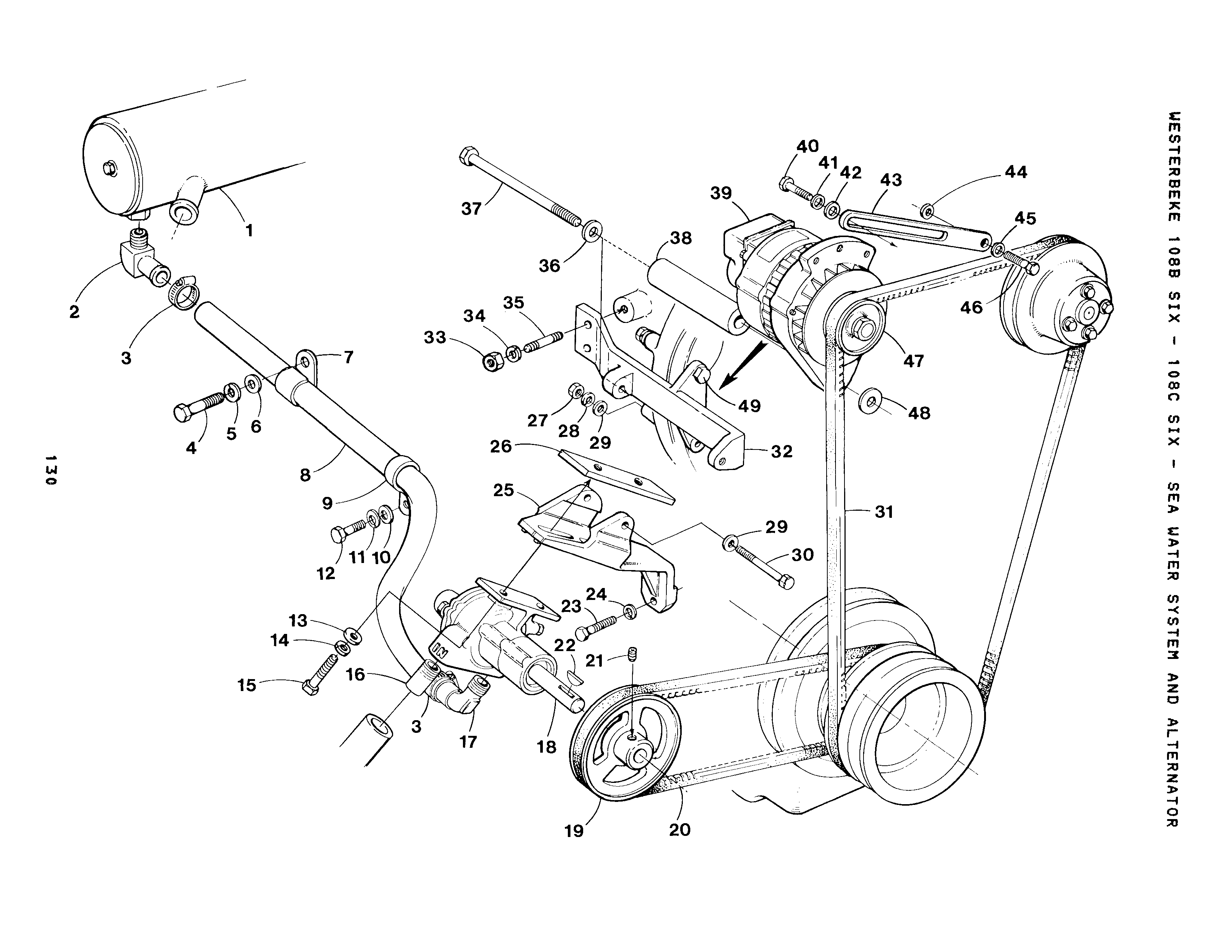

SEA WATER SYSTEM & ALTERNATOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

EXCHANGER

Part #: 039230
$1,855.20
QTY:

Sold By: EA

2

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

3

On Diagram

CLAMP

Part #: 011405
$3.00
QTY:

Sold By: EA

4

On Diagram

CAPSCREW 1/2NFx1

Part #: 031730
$1.20
QTY:

Sold By: EA

5

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

6

On Diagram

WASHER

Part #: 031777
$0.80
QTY:

Sold By: EA

7

On Diagram

CLAMP

Part #: 037505
$16.80
QTY:

Sold By: EA

8

On Diagram

HOSE 1 IN WIRE INSERTED

Part #: 011779

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$1.70
QTY:

Sold By: IN

9

On Diagram

CLAMP

Part #: 013741
$6.20
QTY:

Sold By: EA

10

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

12

On Diagram

CAPSCREW 5/16NCx3/4

Part #: 031553
$0.40
QTY:

Sold By: EA

13

On Diagram

WASHER

Part #: 031765
$0.30
QTY:

Sold By: EA

14

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

15

On Diagram

CAPSCREW 3/8NFx1-1/4

Part #: 031631
$0.70
QTY:

Sold By: EA

16-1

On Diagram

NIPPLE 3/4 NPT x 1 HOSE

Part #: 036622
$134.80
QTY:

Sold By: EA

16-2

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

17

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

18

On Diagram

PUMP

Part #: 038445
$1,455.50
QTY:

Sold By: EA

19-1

On Diagram

PULLEY

Part #: 011371
$163.40
QTY:

Sold By: EA

19-2

On Diagram

PULLEY

Part #: 038865
$87.10
QTY:

Sold By: EA

20-1

On Diagram

BELT

Part #: 015768
$46.50
QTY:

Sold By: EA

20-2

On Diagram

BELT

Part #: 013810
$32.70
QTY:

Sold By: EA

21

On Diagram

SETSCREW 5/16NCx3/8 SOCKET

Part #: 011357
$2.80
QTY:

Sold By: EA

22

On Diagram

KEY

Part #: 022392
$4.20
QTY:

Sold By: EA

23

On Diagram

CAPSCREW M10x1.25x35 DIN 961

Part #: 024953
$1.20
QTY:

Sold By: EA

24

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

25-1

On Diagram

BRACKET

Part #: 038513
$450.70
QTY:

Sold By: EA

25-2

On Diagram

BRACKET

Part #: 040536

This part is no longer available.

$592.80
QTY:

Sold By: EA

26

On Diagram

PLATE

Part #: 038435
$38.90
QTY:

Sold By: EA

27

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

28

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

29

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

30

On Diagram

CAPSCREW 5/16NFx4

Part #: 031592
$1.70
QTY:

Sold By: EA

31

On Diagram

BELT

Part #: 032544
$100.90
QTY:

Sold By: EA

32-1

On Diagram

BRACKET

Part #: 032222

This part is no longer available.

$426.10
QTY:

Sold By: EA

32-2

On Diagram

BRACKET

Part #: 032584

This part is no longer available.

$426.10
QTY:

Sold By: EA

33

On Diagram

NUT 3/8-24 NF

Part #: 031766
$0.30
QTY:

Sold By: EA

34

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

35

On Diagram

STUD

Part #: 012502
$8.40
QTY:

Sold By: EA

36-1

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

36-2

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

37-1

On Diagram

CAPSCREW 1/2NCx5-1/4

Part #: 031722
$4.30
QTY:

Sold By: EA

37-2

On Diagram

CAPSCREW 3/8NCx5-1/4

Part #: 031622
$4.30
QTY:

Sold By: EA

38-1

On Diagram

SPACER

Part #: 030182
$69.70
QTY:

Sold By: EA

38-2

On Diagram

SPACER

Part #: 031169
$75.60
QTY:

Sold By: EA

38-3

On Diagram

SPACER

Part #: 038111
$45.00
QTY:

Sold By: EA

39

On Diagram

DIAGRAM

Part #: 031201
Price not found
QTY:

Sold By: each

39-1

On Diagram

ALTERNATOR 12VDC 51A

Part #: 024684

This part is no longer available.

$640.10
QTY:

Sold By: EA

39-2

On Diagram

REGULATOR 12VDC ALTNR 24684

Part #: 024579
$86.80
QTY:

Sold By: EA

39-3

On Diagram

GASKET

Part #: 024580
$1.50
QTY:

Sold By: EA

39-4

On Diagram

ALTERNATOR 12VDC 90A

Part #: 030735

This part is no longer available.

$737.90
QTY:

Sold By: EA

40

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

41

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

42

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

43-1

On Diagram

STRAP

Part #: 033064
$62.40
QTY:

Sold By: EA

43-2

On Diagram

STRAP

Part #: 039978
$103.40
QTY:

Sold By: EA

44

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

45-1

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

45-2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

46-1

On Diagram

CAPSCREW 5/16NFx3/4

Part #: 031578
$0.50
QTY:

Sold By: EA

46-2

On Diagram

CAPSCREW M10x20 DIN 933

Part #: 018813
$1.10
QTY:

Sold By: EA

47

On Diagram

PULLEY

Part #: 032543
$66.00
QTY:

Sold By: EA

48

On Diagram

SPACER

Part #: 030168
$30.90
QTY:

Sold By: EA

49

On Diagram

CAPSCREW 5/16NFx3

Part #: 031588
$1.50
QTY:

Sold By: EA
