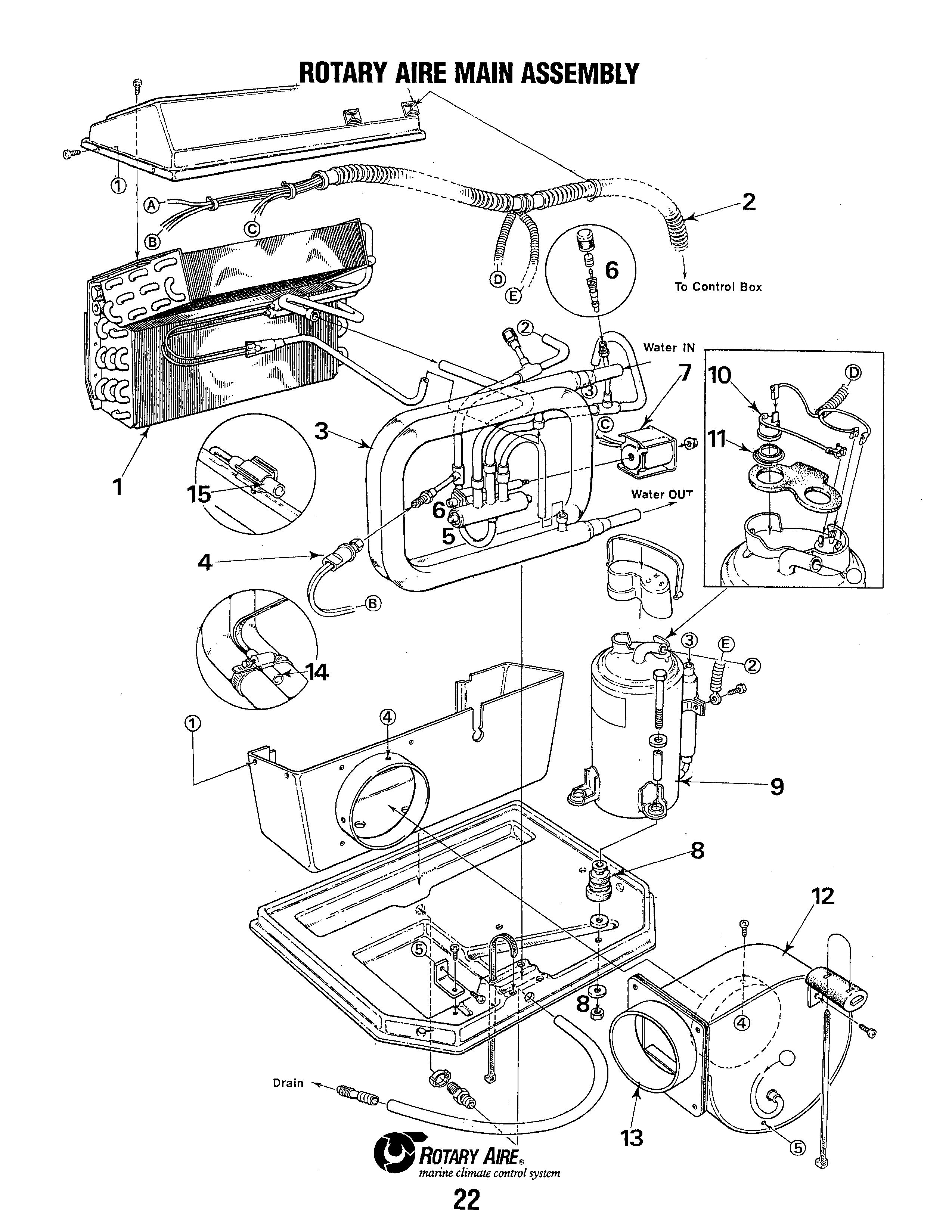

ROTARY AIRE MARINE CLIMATE CONTROL SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

EVAPORATOR ASSEMBLY 10

Part #: 050535
$848.80
QTY:

Sold By: EA

1-2

On Diagram

EVAPORATOR ASSEMBLY 17

Part #: 050536
$846.20
QTY:

Sold By: EA

2-1

On Diagram

HARNESS

Part #: 050405
$73.90
QTY:

Sold By: EA

2-2

On Diagram

HARNESS

Part #: 050408
$266.30
QTY:

Sold By: EA

2-3

On Diagram

HARNESS

Part #: 050539
$245.70
QTY:

Sold By: EA

3-1

On Diagram

CONDENSER ASSEMBLY 10

Part #: 050537
$1,122.70
QTY:

Sold By: EA

3-2

On Diagram

CONDENSER ASSEMBLY 17

Part #: 050538
$1,467.70
QTY:

Sold By: EA

4

On Diagram

SWITCH

Part #: 050140
$75.30
QTY:

Sold By: EA

5

On Diagram

VALVE

Part #: 050167

This part is replaced with part number 050568 for 120V models or 050569 for 220V models

Price not found
QTY:

Sold By: EA

6

On Diagram

VALVE

Part #: 050163
$15.00
QTY:

Sold By: EA

7-1

On Diagram

SOLENOID

Part #: 050168

This part is replaced with part number 050568

Price not found
QTY:

Sold By: EA

7-2

On Diagram

SOLENOID

Part #: 050246

This part is replaced with part number 050569

Price not found
QTY:

Sold By: EA

8

On Diagram

KIT

Part #: 050529
$6.80
QTY:

Sold By: KT

9-1

On Diagram

COMPRESSOR

Part #: 050150

This part is replaced with part number 050604

Price not found
QTY:

Sold By: EA

9-2

On Diagram

COMPRESSOR

Part #: 050443

This part is replaced with part number 050445

Price not found
QTY:

Sold By: EA

9-3

On Diagram

COMPRESSOR

Part #: 050151

This part is replaced with part number 050607

Price not found
QTY:

Sold By: EA

9-4

On Diagram

COMPRESSOR

Part #: 050155

This part is replaced with part number 050608

Price not found
QTY:

Sold By: EA

9-5

On Diagram

COMPRESSOR

Part #: 050445

This part is replaced with part number 050611

Price not found
QTY:

Sold By: EA

9-6

On Diagram

COMPRESSOR

Part #: 050156

This part is replaced with part number 050609

Price not found
QTY:

Sold By: EA

10-1

On Diagram

OVERLOAD

Part #: 050273
$5.90
QTY:

Sold By: EA

10-2

On Diagram

OVERLOAD

Part #: 050274
$7.00
QTY:

Sold By: EA

10-3

On Diagram

OVERLOAD

Part #: 050451
$5.90
QTY:

Sold By: EA

10-4

On Diagram

OVERLOAD

Part #: 050453
$8.40
QTY:

Sold By: EA

10-5

On Diagram

OVERLOAD

Part #: 050283
$5.90
QTY:

Sold By: EA

10-6

On Diagram

OVERLOAD

Part #: 050284
$18.00
QTY:

Sold By: EA

11

On Diagram

SPRING

Part #: 050275
$2.10
QTY:

Sold By: EA

12-1

On Diagram

FAN

Part #: 050141
Price not found
QTY:

Sold By: EA

12-2

On Diagram

FAN

Part #: 050450
Price not found
QTY:

Sold By: EA

12-3

On Diagram

FAN

Part #: 050142
Price not found
QTY:

Sold By: EA

13-1

On Diagram

FLANGE 5" BLOWER

Part #: 050159
$12.40
QTY:

Sold By: EA

13-2

On Diagram

FLANGE 6" BLOWER

Part #: 050160
$24.00
QTY:

Sold By: EA

30-1

On Diagram

PUMP

Part #: 050021
$643.00
QTY:

Sold By: EA

30-2

On Diagram

PUMP

Part #: 050449
$1,113.10
QTY:

Sold By: EA

30-3

On Diagram

PUMP

Part #: 050294
$684.00
QTY:

Sold By: EA

30-4

On Diagram

FITTING KIT

Part #: 050025
$15.00
QTY:

Sold By: KT

30-5

On Diagram

KIT

Part #: 050394
$102.20
QTY:

Sold By: KT

31-1

On Diagram

PUMP

Part #: 050022
$717.00
QTY:

Sold By: EA

31-2

On Diagram

PUMP

Part #: 050452
$888.40
QTY:

Sold By: EA

31-3

On Diagram

PUMP

Part #: 050363
$730.00
QTY:

Sold By: EA

31-4

On Diagram

FITTING KIT

Part #: 050269
$15.00
QTY:

Sold By: KT

31-5

On Diagram

KIT

Part #: 050395
$114.60
QTY:

Sold By: KT

32-1

On Diagram

PUMP

Part #: 050019
$858.20
QTY:

Sold By: EA

32-2

On Diagram

FITTING KIT

Part #: 050391
$18.10
QTY:

Sold By: KT

33

On Diagram

PUMP

Part #: 050023
$1,153.40
QTY:

Sold By: EA

34-1

On Diagram

STRAINER

Part #: 050127
$617.00
QTY:

Sold By: EA

34-2

On Diagram

FITTING KIT

Part #: 050270
$9.00
QTY:

Sold By: KT

35-1

On Diagram

RELAY

Part #: 050015
$303.00
QTY:

Sold By: EA

35-2

On Diagram

RELAY

Part #: 050016
$561.20
QTY:

Sold By: EA

36-1

On Diagram

PADDING 10

Part #: 050454
$10.20
QTY:

Sold By: EA

36-2

On Diagram

PADDING 17

Part #: 050455
$11.90
QTY:

Sold By: EA

37-1

On Diagram

FILTER SET 2 EA 4x13-1/2

Part #: 050387
$7.60
QTY:

Sold By: ST

38-2

On Diagram

FILTER SET 2 EA 7x15

Part #: 050388
$10.70
QTY:

Sold By: ST
