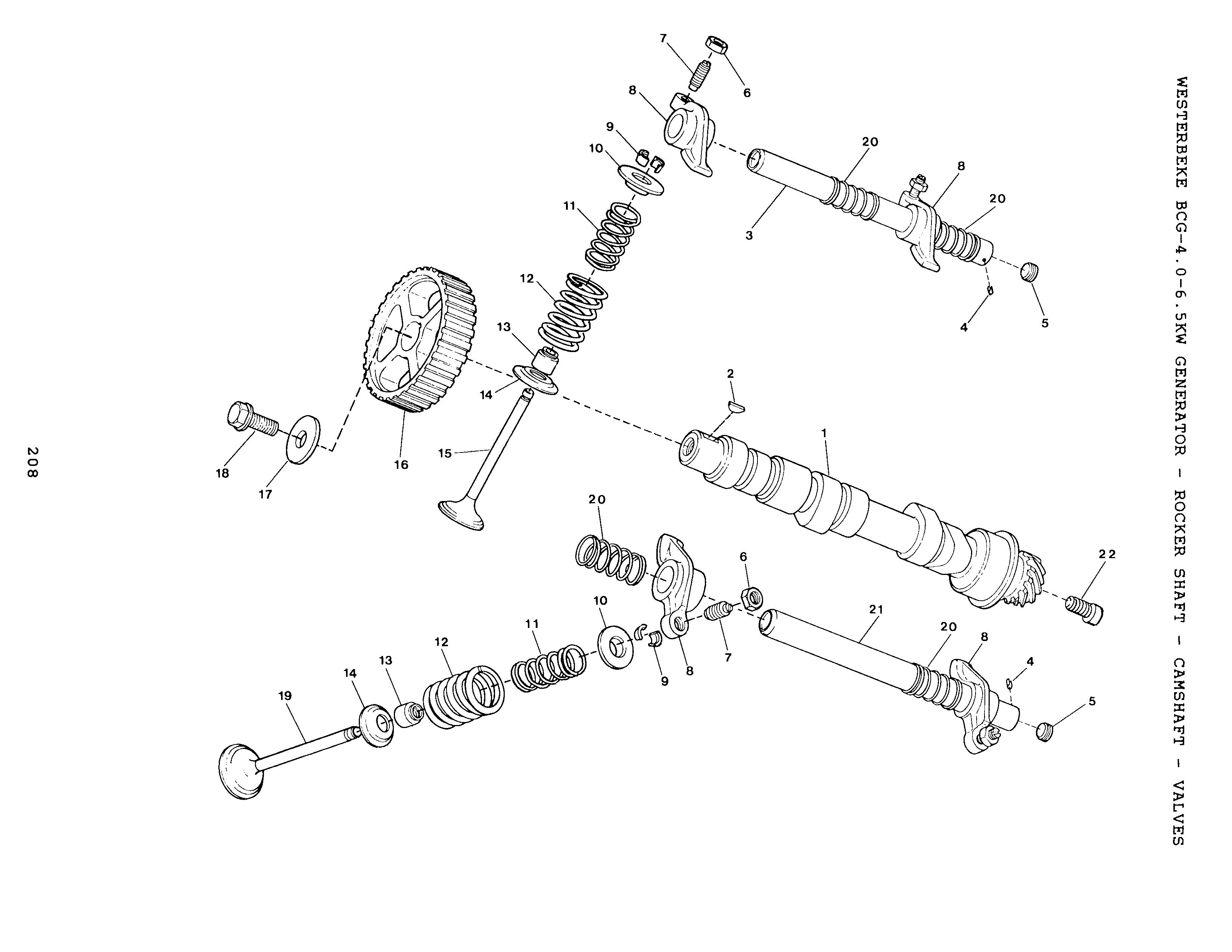

ROCKER SHAFT - CAMSHAFT - VALVES

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

CAMSHAFT

Part #: 035561

This part is no longer available.

Price not found
QTY:

Sold By: EA

1-2

On Diagram

CAMSHAFT

Part #: 035560
$1,459.20
QTY:

Sold By: EA

2

On Diagram

KEY

Part #: 035633
$1.60
QTY:

Sold By: EA

3-1

On Diagram

SHAFT

Part #: 035569

This part is no longer available.

$136.00
QTY:

Sold By: EA

3-2

On Diagram

SHAFT

Part #: 035570
$239.50
QTY:

Sold By: EA

4-1

On Diagram

PIN

Part #: 035814

This part is no longer available.

$4.90
QTY:

Sold By: EA

4-2

On Diagram

PIN

Part #: 035650

This part is no longer available.

$2.80
QTY:

Sold By: EA

5

On Diagram

PLUG

Part #: 035649

This part is no longer available.

$10.30
QTY:

Sold By: EA

6-1

On Diagram

NUT

Part #: 035813
$3.40
QTY:

Sold By: EA

6-2

On Diagram

NUT

Part #: 035813
$3.40
QTY:

Sold By: EA

7-1

On Diagram

SCREW

Part #: 035664

This part is replaced with part number 037967

Price not found
QTY:

Sold By: EA

7-2

On Diagram

SCREW

Part #: 035664

This part is replaced with part number 037967

Price not found
QTY:

Sold By: EA

8-1

On Diagram

ROCKER

Part #: 035568

This part is no longer available.

$92.60
QTY:

Sold By: EA

8-2

On Diagram

ROCKER

Part #: 035568

This part is no longer available.

$92.60
QTY:

Sold By: EA

9-1

On Diagram

CAM

Part #: 035563
$23.70
QTY:

Sold By: EA

9-2

On Diagram

CAM

Part #: 035563
$23.70
QTY:

Sold By: EA

10-1

On Diagram

SEAT

Part #: 035567
$22.70
QTY:

Sold By: EA

10-2

On Diagram

SEAT

Part #: 035567
$22.70
QTY:

Sold By: EA

11

On Diagram

SPRING

Part #: 035656
$28.20
QTY:

Sold By: EA

12-1

On Diagram

SPRING

Part #: 035655
$24.60
QTY:

Sold By: EA

12-2

On Diagram

SPRING

Part #: 035654
$36.40
QTY:

Sold By: EA

13-1

On Diagram

SEAL

Part #: 035662

This part is replaced with part number 037965

Price not found
QTY:

Sold By: EA

13-2

On Diagram

SEAL

Part #: 035662

This part is replaced with part number 037965

Price not found
QTY:

Sold By: EA

14-1

On Diagram

SEAT

Part #: 035566

This part is no longer available.

$6.00
QTY:

Sold By: EA

14-2

On Diagram

SEAT

Part #: 035566

This part is no longer available.

$6.00
QTY:

Sold By: EA

15-1

On Diagram

VALVE

Part #: 035564
$189.90
QTY:

Sold By: EA

15-2

On Diagram

VALVE

Part #: 035564
$189.90
QTY:

Sold By: EA

16

On Diagram

GEAR

Part #: 035562
$335.40
QTY:

Sold By: EA

17

On Diagram

WASHER

Part #: 035625
$4.00
QTY:

Sold By: EA

18

On Diagram

CAPSCREW M10x1.25x25 JIS-FLANG

Part #: 036215
$2.50
QTY:

Sold By: EA

19-1

On Diagram

VALVE

Part #: 035565
$226.40
QTY:

Sold By: EA

19-2

On Diagram

VALVE

Part #: 035565
$226.40
QTY:

Sold By: EA

20-1

On Diagram

SPRING

Part #: 035653
$8.40
QTY:

Sold By: EA

20-2

On Diagram

SPRING

Part #: 035653
$8.40
QTY:

Sold By: EA

21-1

On Diagram

SHAFT

Part #: 035571

This part is no longer available.

$136.00
QTY:

Sold By: EA

21-2

On Diagram

SHAFT

Part #: 035572
$193.80
QTY:

Sold By: EA

22

On Diagram

CAM

Part #: 035563
$23.70
QTY:

Sold By: EA
