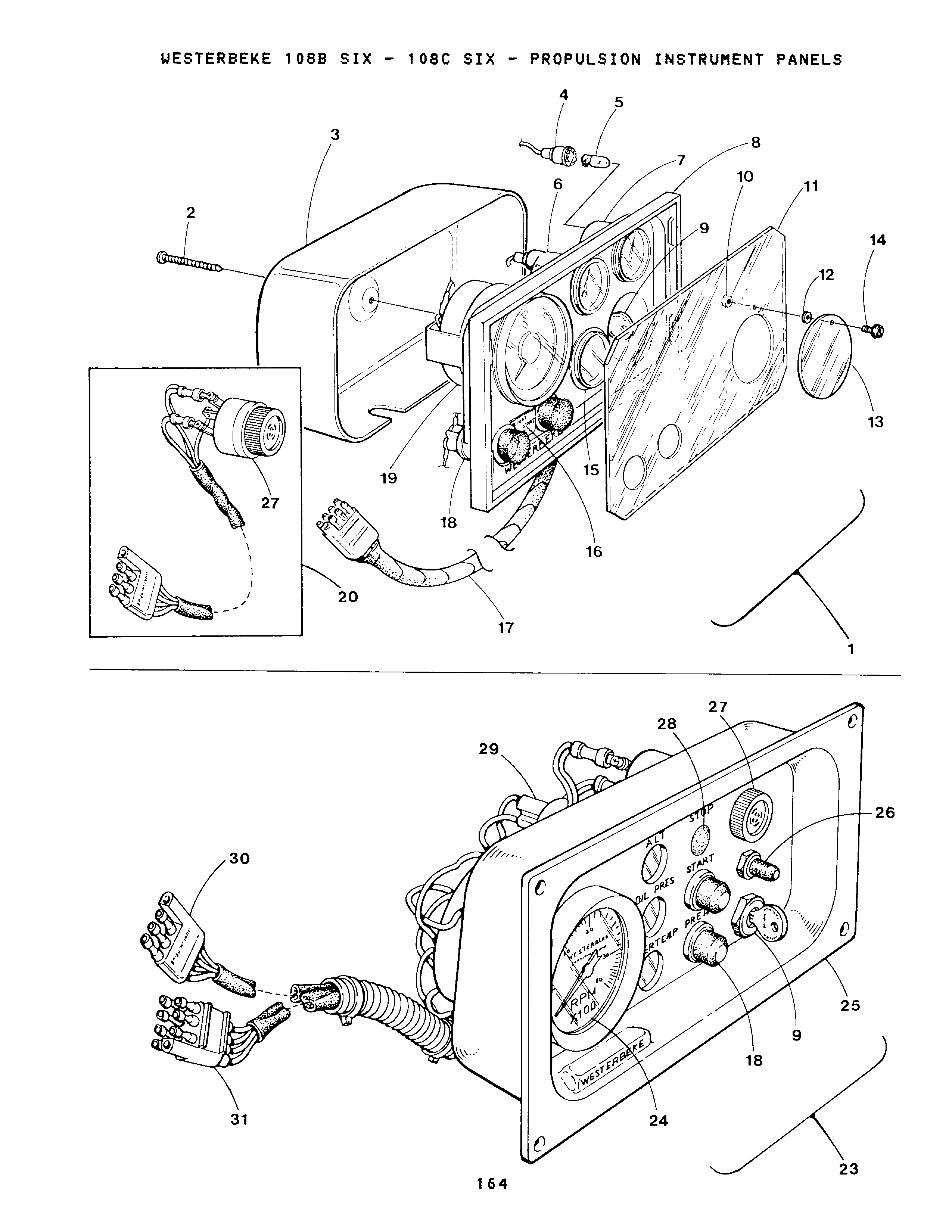

PROPULSION INSTRUMENT PANELS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

PANEL KIT

Part #: 036842

$849.50

QTY:

Sold By: KT

2

On Diagram

SCREW 10 X 2 SMS

Part #: 030913

$0.80

QTY:

Sold By: EA

3

On Diagram

COVER

Part #: 030119

$46.90

QTY:

Sold By: EA

4

On Diagram

HOLDER

Part #: 035118

This part is replaced with part number 042893

Price not found

QTY:

Sold By: EA

5

On Diagram

LAMP

Part #: 035114

$4.00

QTY:

Sold By: EA

6

On Diagram

METER

Part #: 037601

$72.20

QTY:

Sold By: EA

7

On Diagram

METER

Part #: 037603

$92.60

QTY:

Sold By: EA

8

On Diagram

PANEL

Part #: 033865

$65.10

QTY:

Sold By: EA

9

On Diagram

SWITCH

Part #: 033693

$89.70

QTY:

Sold By: EA

10

On Diagram

NUT

Part #: 030003

$1.10

QTY:

Sold By: EA

11

On Diagram

COVER

Part #: 033684

$32.40

QTY:

Sold By: EA

12

On Diagram

WASHER 6 NYLON

Part #: 030002

$0.40

QTY:

Sold By: EA

13

On Diagram

WINDOW

Part #: 024996

$7.40

QTY:

Sold By: EA

14

On Diagram

SCREW 6-32 x 1/2 NYLON

Part #: 030001

$3.40

QTY:

Sold By: EA

15

On Diagram

METER

Part #: 037605

$106.30

QTY:

Sold By: EA

16

On Diagram

DECAL

Part #: 033682

$4.10

QTY:

Sold By: EA

17

On Diagram

CABLE

Part #: 030148

$329.70

QTY:

Sold By: EA

18-1

On Diagram

SWITCH

Part #: 033764

$23.70

QTY:

Sold By: EA

18-2

On Diagram

CAP

Part #: 019031

$7.20

QTY:

Sold By: EA

19

On Diagram

METER

Part #: 011917

$345.60

QTY:

Sold By: EA

20

On Diagram

ALARM ASSEMBLY

Part #: 036829

$294.60

QTY:

Sold By: EA

21

On Diagram

WIRE

Part #: 035825

$5.80

QTY:

Sold By: EA

22

On Diagram

DIAGRAM

Part #: 039144

Price not found

QTY:

Sold By: each

23

On Diagram

PANEL

Part #: 036473

$555.30

QTY:

Sold By: EA

24

On Diagram

METER

Part #: 036590

$185.80

QTY:

Sold By: EA

25

On Diagram

PANEL

Part #: 036043

This part is replaced with part number 047256

Price not found

QTY:

Sold By: EA

26-1

On Diagram

SWITCH

Part #: 036479

$27.60

QTY:

Sold By: EA

26-2

On Diagram

CAP

Part #: 036490

$8.70

QTY:

Sold By: EA

27

On Diagram

BUZZER

Part #: 013355

$34.40

QTY:

Sold By: EA

28

On Diagram

PLUG

Part #: 030946

$0.30

QTY:

Sold By: EA

29-1

On Diagram

LAMP

Part #: 024947

$3.50

QTY:

Sold By: EA

29-2

On Diagram

HOLDER

Part #: 036483

$11.00

QTY:

Sold By: EA

30

On Diagram

HARNESS

Part #: 036626

$119.30

QTY:

Sold By: EA

31

On Diagram

HARNESS

Part #: 036627

$179.70

QTY:

Sold By: EA

32

On Diagram

TERMINAL-DIODE ASSEMBLY

Part #: 036477

$108.80

QTY:

Sold By: EA

33

On Diagram

SPACER

Part #: 036544

This part is no longer available.

$2.10

QTY:

Sold By: EA

34

On Diagram

SCREW 6-32 X 3/4 TAPPING SS

Part #: 036545

$0.50

QTY:

Sold By: EA

35

On Diagram

DRAWING

Part #: 036630

Price not found

QTY:

Sold By: EA
