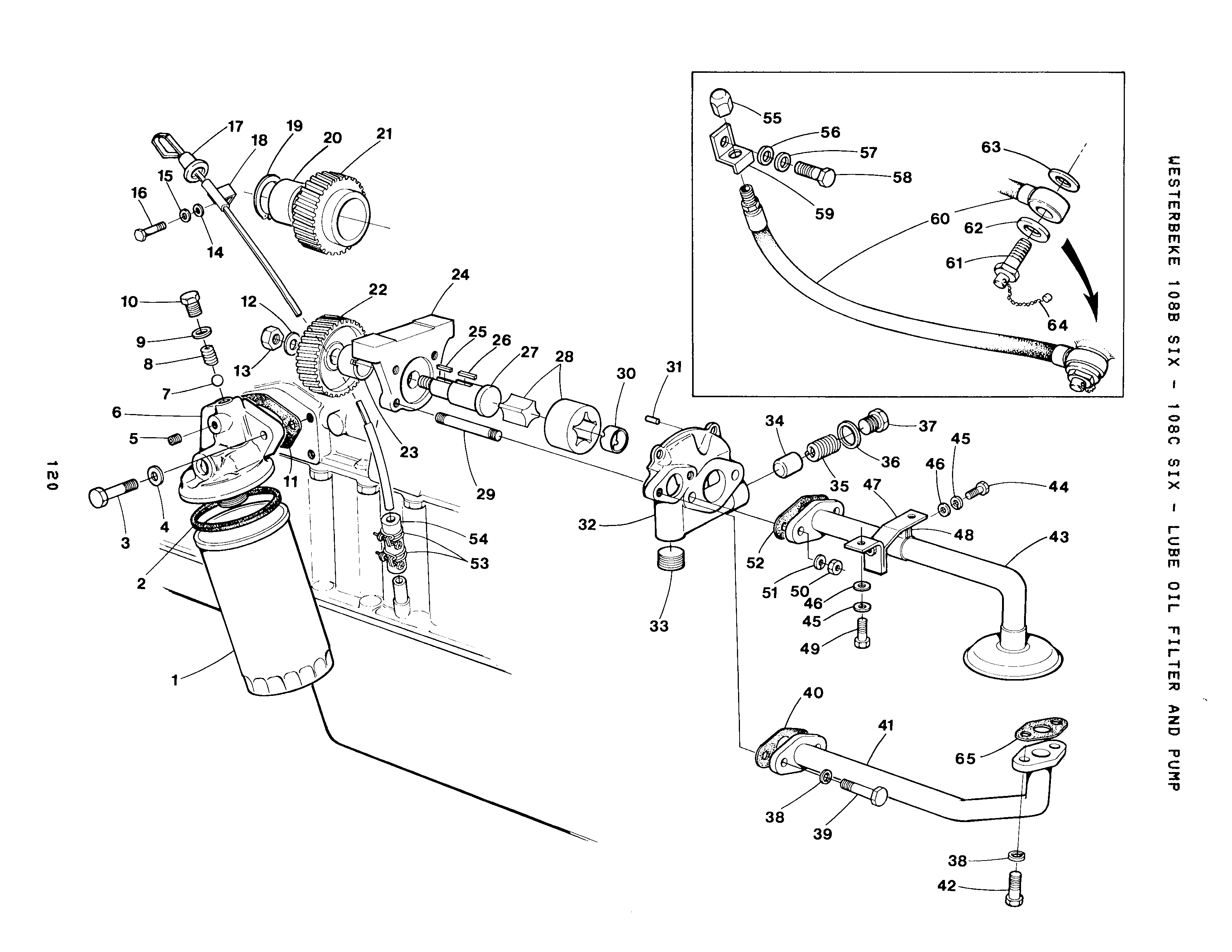

LUBE OIL FILTER AND PUMP

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

FILTER

Part #: 040154
$34.80
QTY:

Sold By: EA

2

On Diagram

GASKET

Part #: 032873
$30.00
QTY:

Sold By: EA

3

On Diagram

BOLT

Part #: 032886
$15.80
QTY:

Sold By: EA

4

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

5

On Diagram

PLUG 1/8-28 BSPT DIN 906

Part #: 030711
$4.40
QTY:

Sold By: EA

6

On Diagram

ADAPTER

Part #: 032867

This part is no longer available.

Price not found
QTY:

Sold By: EA

7

On Diagram

BALL

Part #: 032887
$3.70
QTY:

Sold By: EA

8

On Diagram

SPRING

Part #: 032862
$5.10
QTY:

Sold By: EA

9

On Diagram

O-RING

Part #: 032861
$6.20
QTY:

Sold By: EA

10

On Diagram

PLUG

Part #: 032860

This part is no longer available.

$6.40
QTY:

Sold By: EA

11

On Diagram

GASKET

Part #: 032851
$6.50
QTY:

Sold By: EA

12

On Diagram

WASHER

Part #: 031777
$0.80
QTY:

Sold By: EA

13

On Diagram

NUT

Part #: 031779
Price not found
QTY:

Sold By: each

14

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

16

On Diagram

CAPSCREW 5/16NFx5/8

Part #: 031577
$0.50
QTY:

Sold By: EA

17-1

On Diagram

DIPSTICK

Part #: 032759

This part is no longer available.

$35.80
QTY:

Sold By: EA

17-2

On Diagram

DIPSTICK 108C

Part #: 040650
$4.10
QTY:

Sold By: EA

18-1

On Diagram

TUBE

Part #: 032758
$41.60
QTY:

Sold By: EA

18-2

On Diagram

TUBE

Part #: 040410

This part is no longer available.

$125.80
QTY:

Sold By: EA

19

On Diagram

CIRCLIP

Part #: 033655
$4.30
QTY:

Sold By: EA

20

On Diagram

BUSHING

Part #: 032844
$10.60
QTY:

Sold By: EA

21

On Diagram

GEAR

Part #: 032843

This part is no longer available.

$200.50
QTY:

Sold By: EA

22-1

On Diagram

GEAR

Part #: 032836

This part is no longer available.

$222.50
QTY:

Sold By: EA

22-2

On Diagram

GEAR

Part #: 040726
$160.10
QTY:

Sold By: EA

23

On Diagram

BUSHING

Part #: 032831
$6.00
QTY:

Sold By: EA

24-1

On Diagram

PUMP

Part #: 032830

This part is no longer available.

$707.50
QTY:

Sold By: EA

24-2

On Diagram

PUMP

Part #: 040723
$364.30
QTY:

Sold By: EA

25

On Diagram

KEY

Part #: 032837

This part is no longer available.

$4.10
QTY:

Sold By: EA

26

On Diagram

KEY

Part #: 032838

This part is no longer available.

$4.10
QTY:

Sold By: EA

27-1

On Diagram

SHAFT

Part #: 032835
Price not found
QTY:

Sold By: EA

27-2

On Diagram

SHAFT

Part #: 040725
$93.70
QTY:

Sold By: EA

28

On Diagram

ROTOR

Part #: 032839

This part is no longer available.

$134.90
QTY:

Sold By: EA

29

On Diagram

STUD

Part #: 032832

This part is no longer available.

$4.60
QTY:

Sold By: EA

30

On Diagram

BUSHING

Part #: 032834
$8.00
QTY:

Sold By: EA

31

On Diagram

DOWEL 4MM x 12MM DIN 6325

Part #: 033665
$1.40
QTY:

Sold By: EA

32-1

On Diagram

COVER

Part #: 032833
$262.80
QTY:

Sold By: EA

32-2

On Diagram

COVER

Part #: 040724
$130.90
QTY:

Sold By: EA

33

On Diagram

PLUG 3/8-19 BSPT DIN 906

Part #: 024903
$4.90
QTY:

Sold By: EA

34

On Diagram

PLUNGER

Part #: 032840

This part is no longer available.

$16.20
QTY:

Sold By: EA

35

On Diagram

SPRING

Part #: 032841
$8.50
QTY:

Sold By: EA

36

On Diagram

WASHER

Part #: 033666
$3.90
QTY:

Sold By: EA

37

On Diagram

PLUG

Part #: 032842

This part is no longer available.

$11.20
QTY:

Sold By: EA

38

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

39

On Diagram

CAPSCREW 1/4NFx5/8

Part #: 031527
$0.50
QTY:

Sold By: EA

40

On Diagram

GASKET

Part #: 030969

This part is no longer available.

$5.20
QTY:

Sold By: EA

41-1

On Diagram

LINE

Part #: 032849

This part is no longer available.

$31.20
QTY:

Sold By: EA

41-2

On Diagram

LINE

Part #: 040728
$139.40
QTY:

Sold By: EA

42

On Diagram

CAPSCREW

Part #: 031528
Price not found
QTY:

Sold By: EA

43-1

On Diagram

STRAINER

Part #: 032788

This part is no longer available.

Price not found
QTY:

Sold By: EA

43-2

On Diagram

STRAINER

Part #: 040727
$122.90
QTY:

Sold By: EA

44

On Diagram

CAPSCREW 1/4NFx1

Part #: 031530
$0.50
QTY:

Sold By: EA

45

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

46

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

47

On Diagram

BRACKET

Part #: 032847
$3.50
QTY:

Sold By: EA

48

On Diagram

CLAMP

Part #: 032846

This part is no longer available.

$3.50
QTY:

Sold By: EA

49

On Diagram

CAPSCREW 1/4NFx1/2

Part #: 031526
$0.40
QTY:

Sold By: EA

50

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

51

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

52

On Diagram

GASKET

Part #: 032845
$4.80
QTY:

Sold By: EA

53

On Diagram

CLAMP

Part #: 017298
$2.70
QTY:

Sold By: EA

54

On Diagram

HOSE

Part #: 032875
$10.90
QTY:

Sold By: EA

55

On Diagram

CAP 1/4 NPT BRASS

Part #: 024905
$4.50
QTY:

Sold By: EA

56

On Diagram

WASHER

Part #: 031765
$0.30
QTY:

Sold By: EA

57

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

58

On Diagram

CAPSCREW 3/8NCx1-1/4

Part #: 031606
$0.50
QTY:

Sold By: EA

59

On Diagram

BRACKET

Part #: 024922
$8.90
QTY:

Sold By: EA

60-1

On Diagram

HOSE

Part #: 030845
$96.20
QTY:

Sold By: EA

60-2

On Diagram

HOSE

Part #: 030848
$101.10
QTY:

Sold By: EA

60-3

On Diagram

HOSE

Part #: 040210
$189.80
QTY:

Sold By: EA

61-1

On Diagram

BOLT

Part #: 036821
$31.20
QTY:

Sold By: EA

61-2

On Diagram

BOLT

Part #: 040199
$35.00
QTY:

Sold By: EA

62-1

On Diagram

WASHER

Part #: 036493
$1.50
QTY:

Sold By: EA

62-2

On Diagram

WASHER

Part #: 040201
$33.80
QTY:

Sold By: EA

63-1

On Diagram

WASHER

Part #: 030291
$9.40
QTY:

Sold By: EA

63-2

On Diagram

WASHER

Part #: 040201
$33.80
QTY:

Sold By: EA

64

On Diagram

SEAL

Part #: 037393
$1.30
QTY:

Sold By: EA

65-1

On Diagram

O-RING

Part #: 041398
$15.50
QTY:

Sold By: EA

65-2

On Diagram

GASKET

Part #: 032845
$4.80
QTY:

Sold By: EA
