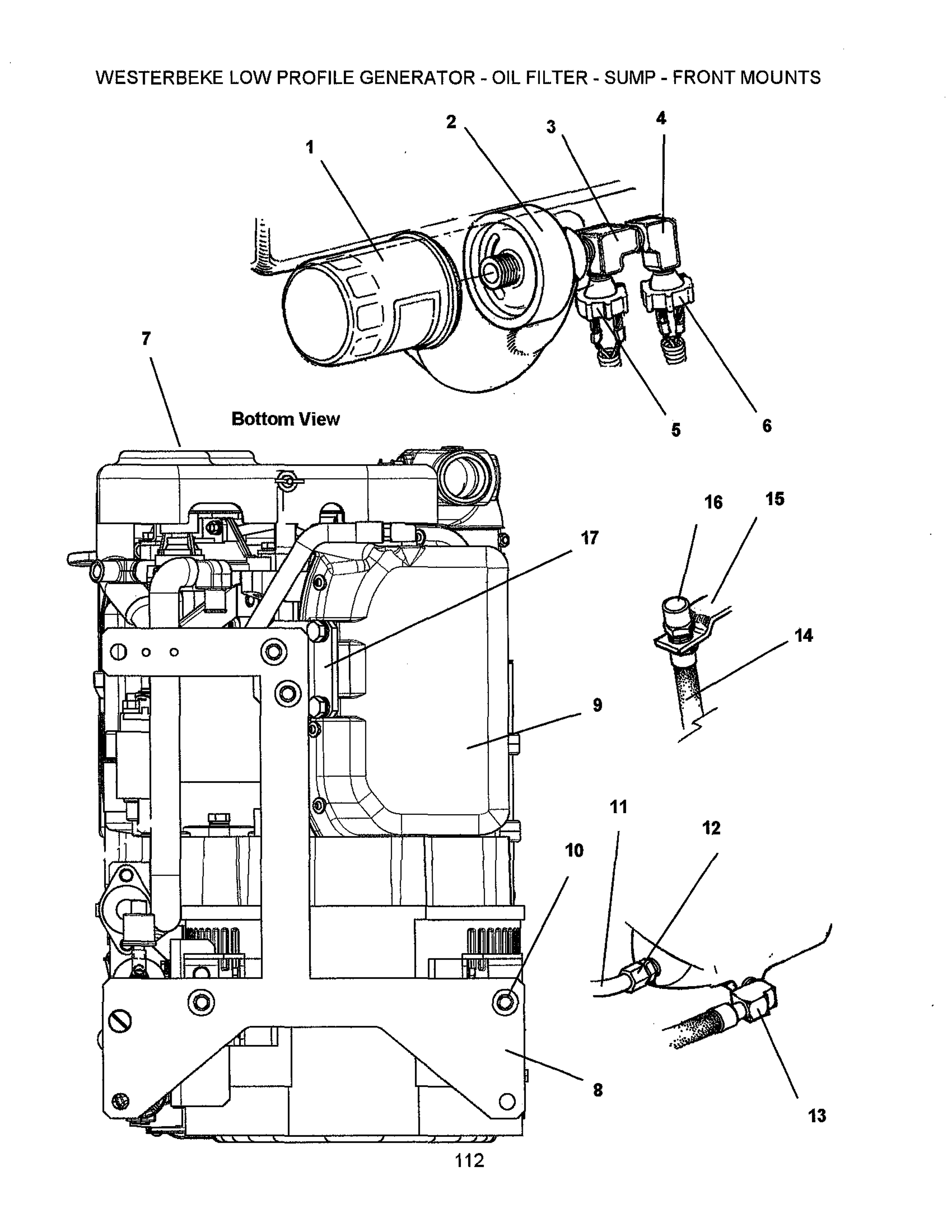

LUBE OIL FILTER - SUMP - FRONT MOUNTS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

FILTER

Part #: 036918
$16.40
QTY:

Sold By: EA

2-1

On Diagram

ADAPTER

Part #: 046279
$110.90
QTY:

Sold By: EA

2-2

On Diagram

GASKET

Part #: 041323
$5.80
QTY:

Sold By: EA

2-3

On Diagram

NIPPLE

Part #: 034663
$29.10
QTY:

Sold By: EA

2-4

On Diagram

PLUG 1/8 NPT SOCKET

Part #: 024523
$5.80
QTY:

Sold By: EA

3

On Diagram
$34.40
QTY:

Sold By: EA

4

On Diagram
$9.80
QTY:

Sold By: EA

5

On Diagram

SWITCH

Part #: 037323
$31.20
QTY:

Sold By: EA

6

On Diagram

SWITCH

Part #: 011552

Replaced By Part Number 056484

$31.20
QTY:

Sold By: EA

7

On Diagram

GUARD

Part #: 046425

This part is no longer available.

$92.50
QTY:

Sold By: EA

8

On Diagram

BASE

Part #: 046747
$252.00
QTY:

Sold By: EA

9-1

On Diagram

SUMP

Part #: 046285
$334.60
QTY:

Sold By: EA

9-2

On Diagram

GASKET

Part #: 042020
$52.10
QTY:

Sold By: EA

10

On Diagram

ISOLATOR

Part #: 046272
$16.40
QTY:

Sold By: EA

11-1

On Diagram

TUBE

Part #: 046434
$64.00
QTY:

Sold By: EA

11-2

On Diagram

DIPSTICK

Part #: 048810
$32.30
QTY:

Sold By: EA

12

On Diagram

CONNECTOR

Part #: 023894
$7.30
QTY:

Sold By: EA

13

On Diagram
$20.80
QTY:

Sold By: EA

14

On Diagram

HOSE

Part #: 046785
$68.00
QTY:

Sold By: EA

15

On Diagram

BRACKET

Part #: 037198
$13.30
QTY:

Sold By: EA

16

On Diagram

CAP 1/4 NPT BRASS

Part #: 024905
$5.40
QTY:

Sold By: EA

17

On Diagram

MOUNT

Part #: 046165
$50.90
QTY:

Sold By: EA
