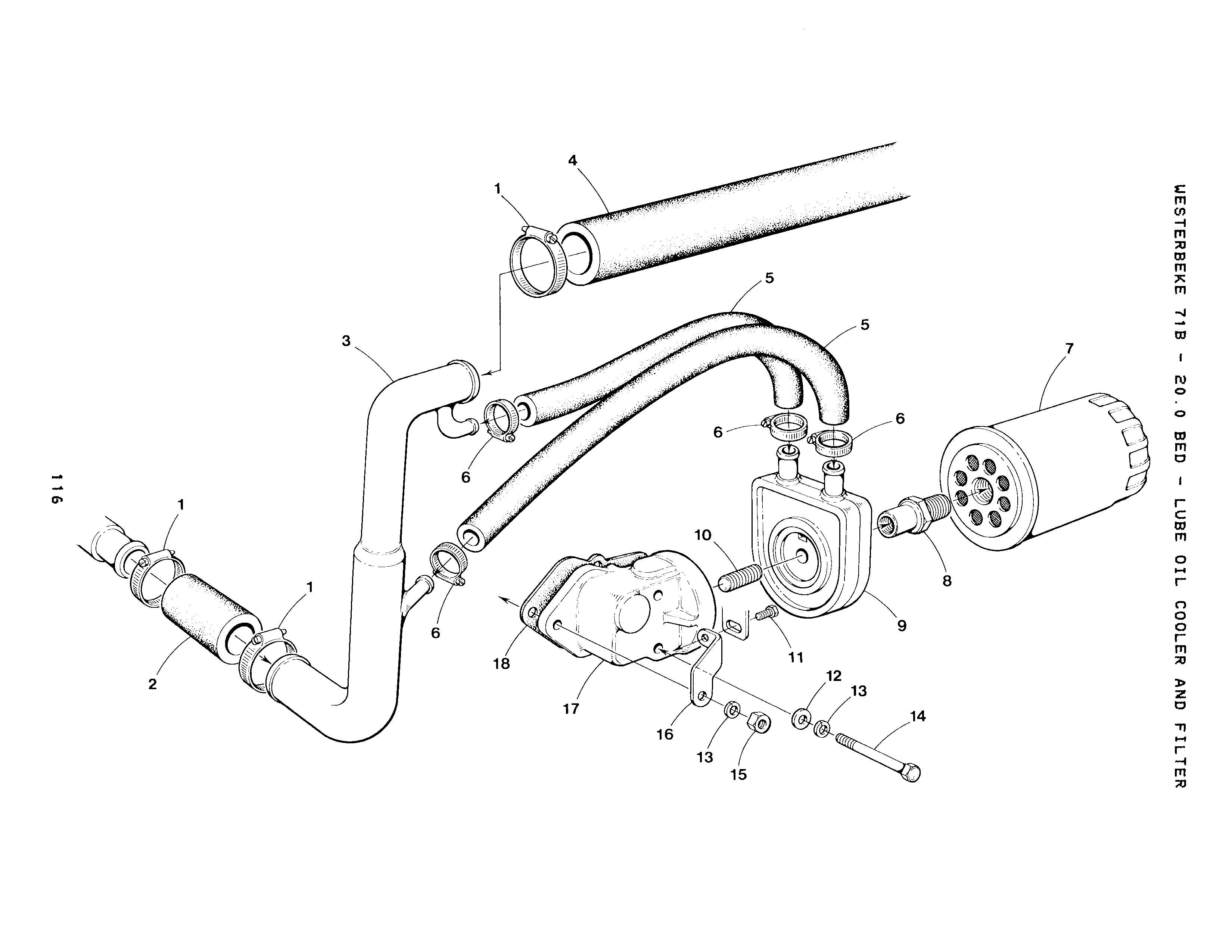

LUBE OIL COOLER AND FILTER

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

CLAMP

Part #: 038193
$3.50
QTY:

Sold By: EA

2

On Diagram

HOSE 1-3/4 IN SOFT WALL

Part #: 038848

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$2.70
QTY:

Sold By: IN

3

On Diagram

TUBE

Part #: 038591
$315.80
QTY:

Sold By: EA

4

On Diagram

HOSE

Part #: 038603
$89.30
QTY:

Sold By: EA

5

On Diagram

HOSE 5/8 IN WIRE INSERTED

Part #: 021516

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$1.10
QTY:

Sold By: IN

6

On Diagram

CLAMP

Part #: 011341
$2.00
QTY:

Sold By: EA

7

On Diagram

FILTER

Part #: 035828
$26.20
QTY:

Sold By: EA

8

On Diagram

CONNECTOR

Part #: 038514
$41.40
QTY:

Sold By: EA

9

On Diagram

COOLER

Part #: 038582
$423.10
QTY:

Sold By: EA

10

On Diagram

NIPPLE

Part #: 034663
$29.10
QTY:

Sold By: EA

12

On Diagram

WASHER

Part #: 031771
$0.30
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

14

On Diagram

CAPSCREW 7/16NFx3-3/4

Part #: 031691
$2.50
QTY:

Sold By: EA

15

On Diagram

NUT 7/16-20 NF

Part #: 031772

This part is no longer available.

$0.60
QTY:

Sold By: EA

17

On Diagram

ADAPTER

Part #: 038030

This part is no longer available.

$231.70
QTY:

Sold By: EA

18

On Diagram

GASKET

Part #: 038062
$6.90
QTY:

Sold By: EA
