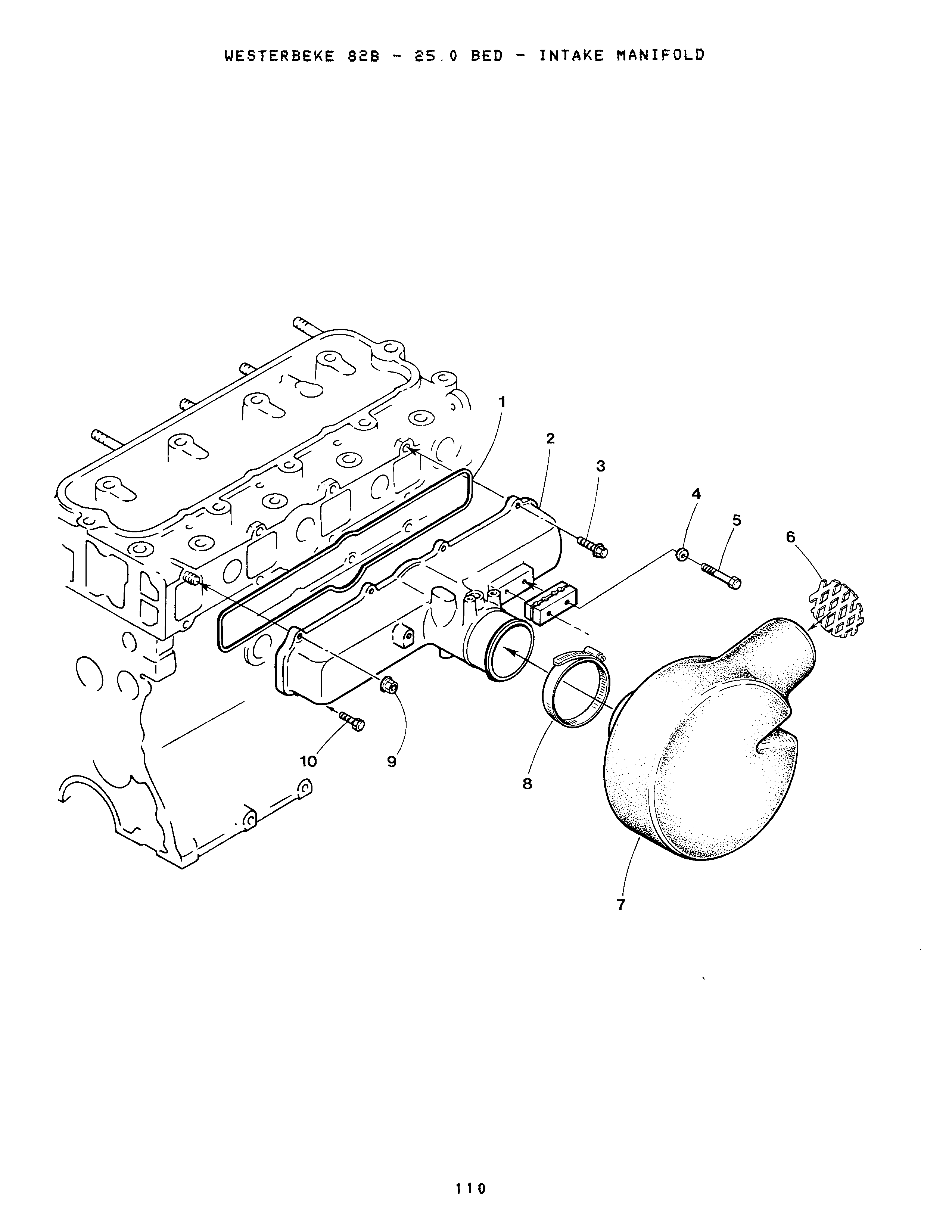

INTAKE MANIFOLD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GASKET

Part #: 032687

This part is replaced with part number 041365

Price not found
QTY:

Sold By: EA

2

On Diagram

MANIFOLD

Part #: 033707
$191.00
QTY:

Sold By: EA

3

On Diagram
$4.40
QTY:

Sold By: EA

4

On Diagram

LOCKWASHER M 5 DIN 127

Part #: 031780
$0.20
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M 5x25 DIN 933

Part #: 018248
$0.50
QTY:

Sold By: EA

6

On Diagram

SCREEN

Part #: 037641
$37.30
QTY:

Sold By: EA

7-1

On Diagram

SILENCER

Part #: 037449

This part is replaced with part number 048804

Price not found
QTY:

Sold By: EA

7-2

On Diagram

SILENCER

Part #: 037450
$235.90
QTY:

Sold By: EA

8

On Diagram

CLAMP

Part #: 011505
$3.10
QTY:

Sold By: EA

9

On Diagram

NUT M 8 JIS-FLANGE

Part #: 033668

This part is no longer available.

$3.00
QTY:

Sold By: EA

10

On Diagram
$3.60
QTY:

Sold By: EA
