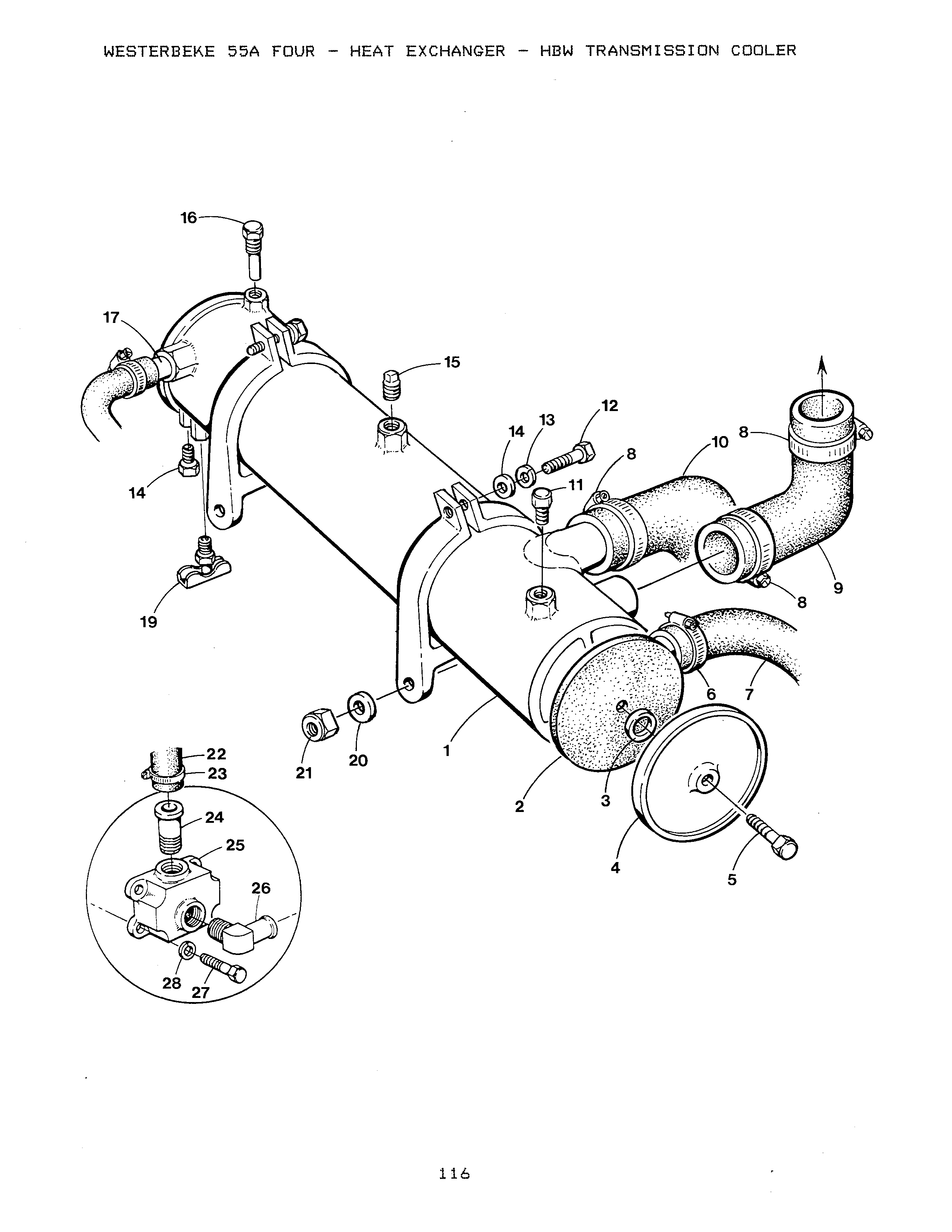

HEAT EXCHANGER - HBW TRANSMISSION COOLER

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

EXCHANGER

Part #: 040164

$1,375.00

QTY:

Sold By: EA

2

On Diagram

GASKET

Part #: 033300

$10.50

QTY:

Sold By: EA

3

On Diagram

O-RING

Part #: 019321

$0.60

QTY:

Sold By: EA

4

On Diagram

CAP

Part #: 033299

This part is replaced with part number 200244

$42.90

QTY:

Sold By: EA

5

On Diagram

CAPSCREW 3/8NCx3/4 BRASS OR SS

Part #: 022852

$4.30

QTY:

Sold By: EA

6

On Diagram

CLAMP

Part #: 011386

$3.00

QTY:

Sold By: EA

7

On Diagram

HOSE 1 IN WIRE INSERTED

Part #: 011779

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$1.70

QTY:

Sold By: IN

8

On Diagram

CLAMP

Part #: 038193

$3.50

QTY:

Sold By: EA

9

On Diagram

HOSE

Part #: 039820

$33.70

QTY:

Sold By: EA

10

On Diagram

HOSE

Part #: 039821

This part is no longer available.

$93.50

QTY:

Sold By: EA

11

On Diagram

PLUG 1/4 NPT

Part #: 013341

$3.80

QTY:

Sold By: EA

12

On Diagram

CAPSCREW 1/4NCx1-1/4

Part #: 031506

$0.50

QTY:

Sold By: EA

13

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752

$0.20

QTY:

Sold By: EA

14

On Diagram

WASHER

Part #: 031753

$0.20

QTY:

Sold By: EA

15

On Diagram

PLUG 1/2 NPT

Part #: 035747

$12.90

QTY:

Sold By: EA

16

On Diagram

ZINC

Part #: 011885

$14.60

QTY:

Sold By: EA

17

On Diagram

NIPPLE 3/4 NPT x 1 HOSE

Part #: 036622

$134.80

QTY:

Sold By: EA

18

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369

$3.80

QTY:

Sold By: EA

19

On Diagram

PETCOCK

Part #: 011471

$12.90

QTY:

Sold By: EA

20

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786

$0.20

QTY:

Sold By: EA

21

On Diagram

NUT M 8 DIN 934

Part #: 018242

$0.30

QTY:

Sold By: EA

22

On Diagram

HOSE 1 IN WIRE INSERTED

Part #: 011779

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$1.70

QTY:

Sold By: IN

23

On Diagram

CLAMP

Part #: 011405

$3.00

QTY:

Sold By: EA

24

On Diagram

NIPPLE 3/4 NPT x 1 HOSE

Part #: 036622

$134.80

QTY:

Sold By: EA

25

On Diagram

COOLER

Part #: 040036

$64.60

QTY:

Sold By: EA

26

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614

$27.30

QTY:

Sold By: EA

27

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196

$0.60

QTY:

Sold By: EA

28

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786

$0.20

QTY:

Sold By: EA
