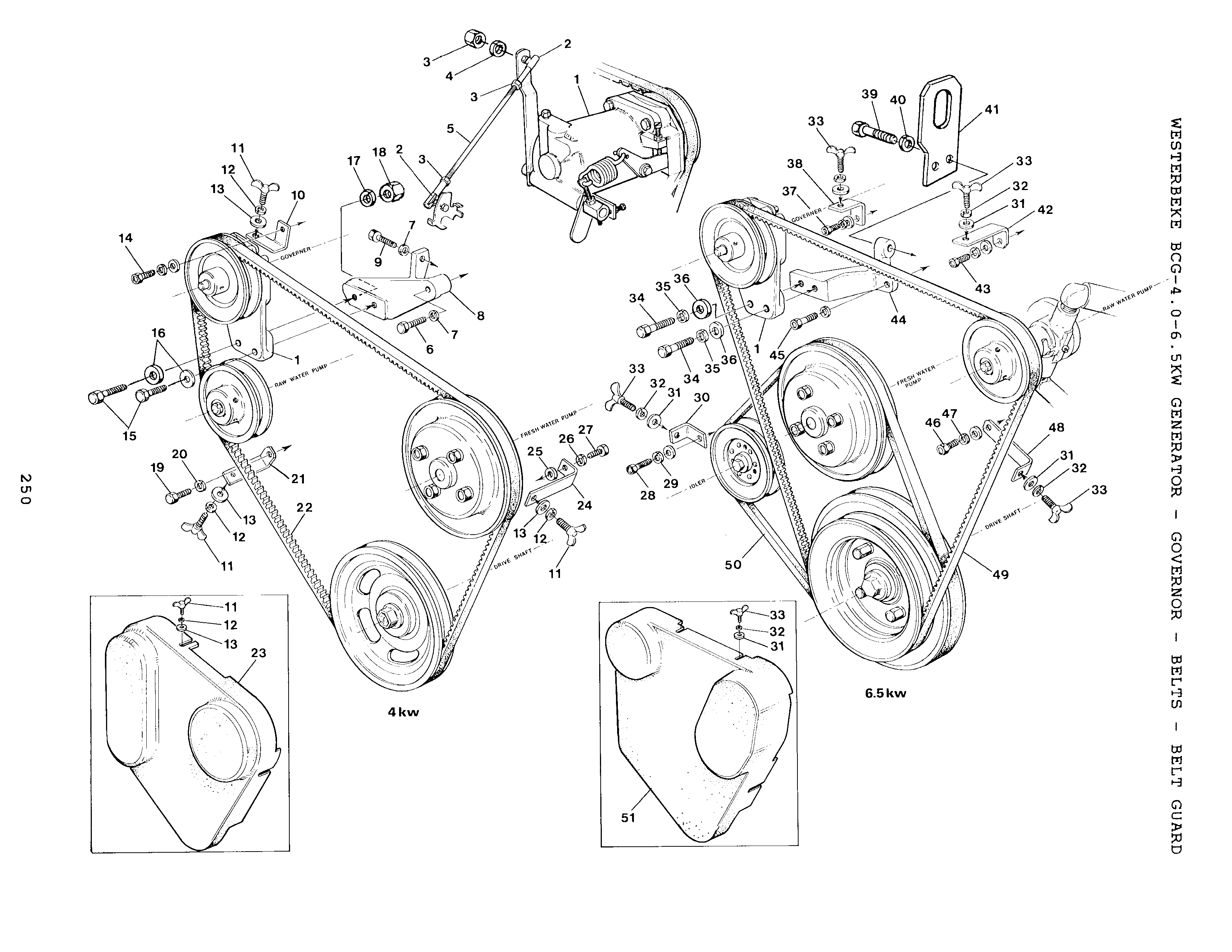

GOVERNOR - BELTS - BELT GUARD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GOVERNOR

Part #: 034821

This part is no longer available.

Price not found
QTY:

Sold By: EA

2

On Diagram

BALLJOINT

Part #: 019364
$13.30
QTY:

Sold By: EA

3

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

4

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

5-1

On Diagram

ROD

Part #: 035277
$13.70
QTY:

Sold By: EA

5-2

On Diagram

ROD

Part #: 035276
$17.90
QTY:

Sold By: EA

6

On Diagram

CAPSCREW M 8x45 DIN 931

Part #: 024948
$1.20
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

8

On Diagram

BRACKET

Part #: 035090

This part is no longer available.

Price not found
QTY:

Sold By: EA

9

On Diagram

CAPSCREW M 8x30 DIN 933

Part #: 013619
$0.60
QTY:

Sold By: EA

10

On Diagram

BRACKET

Part #: 035280

This part is no longer available.

$24.60
QTY:

Sold By: EA

11

On Diagram

WINGSCREW 10-32 x 1/2

Part #: 033228
$6.10
QTY:

Sold By: EA

12

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

13

On Diagram

WASHER

Part #: 033372
$0.40
QTY:

Sold By: EA

14

On Diagram

CAPSCREW M 6x45 JIS 6 W/LW

Part #: 035789
$2.50
QTY:

Sold By: EA

15

On Diagram

CAPSCREW 5/16NCx1-1/2

Part #: 031557
$0.50
QTY:

Sold By: EA

16

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

17

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

18

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

19

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

20

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

21

On Diagram

BRACKET

Part #: 035278
Price not found
QTY:

Sold By: EA

22

On Diagram

BELT

Part #: 035299
$27.00
QTY:

Sold By: EA

23

On Diagram

GUARD

Part #: 035156

This part is no longer available.

Price not found
QTY:

Sold By: EA

24

On Diagram

BRACKET

Part #: 035279

This part is no longer available.

$22.30
QTY:

Sold By: EA

25

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

26

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

27

On Diagram

CAPSCREW M 8x35 JIS 6 W/LW

Part #: 035795
$23.40
QTY:

Sold By: EA

28

On Diagram

CAPSCREW M10x1.25x30 DIN 961

Part #: 031228
$2.10
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

30

On Diagram

BRACKET

Part #: 035328
$17.30
QTY:

Sold By: EA

31

On Diagram

WASHER

Part #: 033372
$0.40
QTY:

Sold By: EA

32

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

33

On Diagram

WINGSCREW 10-32 x 1/2

Part #: 033228
$6.10
QTY:

Sold By: EA

34

On Diagram

CAPSCREW 5/16NCx1-1/4

Part #: 031556
$0.50
QTY:

Sold By: EA

35

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

36

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

37

On Diagram

BOLT

Part #: 035782
$3.80
QTY:

Sold By: EA

38

On Diagram

BRACKET

Part #: 033240
$16.30
QTY:

Sold By: EA

39

On Diagram

CAPSCREW M12x1.25x35 DIN 961

Part #: 024960
$3.50
QTY:

Sold By: EA

40

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

41

On Diagram

EYE

Part #: 035267
$48.60
QTY:

Sold By: EA

42

On Diagram

BRACKET

Part #: 033380
$11.80
QTY:

Sold By: EA

43

On Diagram

CAPSCREW M 6x25 JIS 6 W/LW-FW

Part #: 035810
$2.40
QTY:

Sold By: EA

44

On Diagram

BRACKET

Part #: 035042

This part is no longer available.

$190.40
QTY:

Sold By: EA

45

On Diagram

CAPSCREW M 8x25 JIS 7 W/LW

Part #: 035793
$3.20
QTY:

Sold By: EA

46

On Diagram

CAPSCREW M 6x30 DIN 933

Part #: 013590
$0.70
QTY:

Sold By: EA

47

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

48

On Diagram

BRACKET

Part #: 035327
$12.90
QTY:

Sold By: EA

49

On Diagram

BELT

Part #: 032977
$81.90
QTY:

Sold By: EA

50

On Diagram

BELT

Part #: 035440
$26.40
QTY:

Sold By: EA

51

On Diagram

GUARD

Part #: 035157

This part is no longer available.

Price not found
QTY:

Sold By: EA
