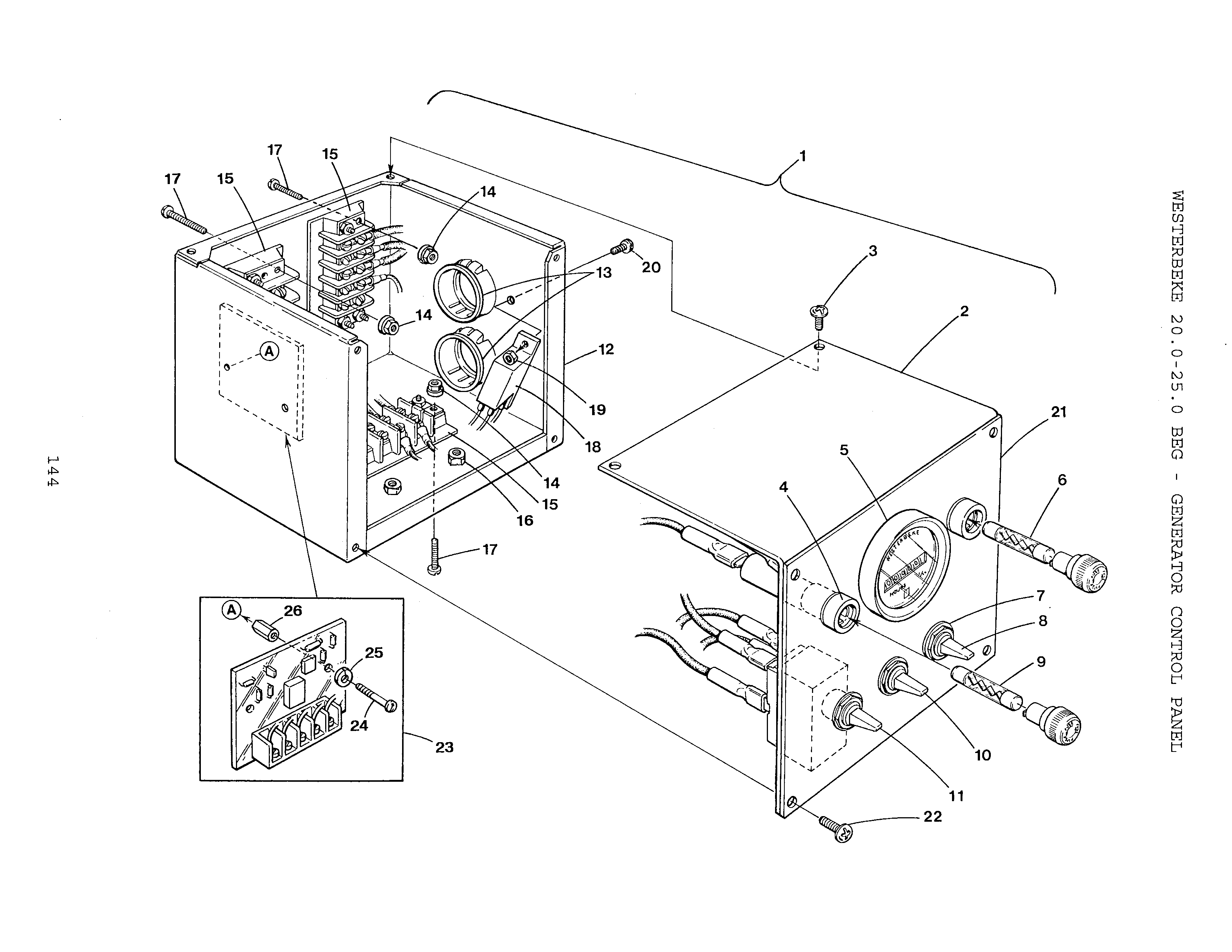

GENERATOR CONTROL PANEL

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

PANEL

Part #: 040628
$1,396.40
QTY:

Sold By: EA

1-2

On Diagram

PANEL

Part #: 044633
$1,298.30
QTY:

Sold By: EA

2

On Diagram

COVER

Part #: 037147
$35.70
QTY:

Sold By: EA

3

On Diagram

SCREW 8-32 X 3/8 TRUSS

Part #: 031891
$0.30
QTY:

Sold By: EA

4

On Diagram

HOLDER

Part #: 033767
$7.30
QTY:

Sold By: EA

5

On Diagram

METER

Part #: 036192
$146.30
QTY:

Sold By: EA

6

On Diagram

FUSE 15 AMP

Part #: 011468
$3.90
QTY:

Sold By: EA

7

On Diagram

LOCKRING

Part #: 031999
$1.60
QTY:

Sold By: EA

8

On Diagram

SWITCH

Part #: 033631

This part is replaced with part number 048263

Price not found
QTY:

Sold By: EA

9

On Diagram

FUSE 8 AMP

Part #: 033769
$1.60
QTY:

Sold By: EA

10

On Diagram

SWITCH

Part #: 033632

This part is no longer available. Use part number 048261.

Price not found
QTY:

Sold By: EA

11

On Diagram

SWITCH

Part #: 033633

This part is replaced with part number 048304

Price not found
QTY:

Sold By: EA

12

On Diagram

BOX

Part #: 037146
$84.90
QTY:

Sold By: EA

13

On Diagram

BUSHING

Part #: 023938
$0.70
QTY:

Sold By: EA

14

On Diagram

NUT 6-32 KEPS

Part #: 050234
$0.30
QTY:

Sold By: EA

15-1

On Diagram

BLOCK

Part #: 019121
$7.30
QTY:

Sold By: EA

15-2

On Diagram

MARKER

Part #: 019122
$2.50
QTY:

Sold By: EA

15-3

On Diagram

PLATE

Part #: 015222
$1.50
QTY:

Sold By: EA

15-4

On Diagram

JUMPER

Part #: 015223
$1.50
QTY:

Sold By: EA

16

On Diagram

NUT 10-32 KEPS

Part #: 200125
$0.30
QTY:

Sold By: EA

17

On Diagram

SCREW 6-32 X 5/8 SS

Part #: 031855
$0.30
QTY:

Sold By: EA

18-1

On Diagram

RELAY 12VDC 40A

Part #: 037833
$31.60
QTY:

Sold By: EA

18-2

On Diagram

RELAY 12VDC 40A

Part #: 037833
$31.60
QTY:

Sold By: EA

19-1

On Diagram

NUT 8-32 SS

Part #: 031842
$0.20
QTY:

Sold By: EA

19-2

On Diagram

WASHER

Part #: 031843
$0.20
QTY:

Sold By: EA

19-3

On Diagram

LOCKWASHER 8 MED SS

Part #: 031844
$0.30
QTY:

Sold By: EA

19-4

On Diagram

NUT 8-32 SS

Part #: 031842
$0.20
QTY:

Sold By: EA

19-5

On Diagram

WASHER

Part #: 031843
$0.20
QTY:

Sold By: EA

19-6

On Diagram

LOCKWASHER 8 MED SS

Part #: 031844
$0.30
QTY:

Sold By: EA

20-1

On Diagram

SCREW 8-32 X 3/8 SS

Part #: 031862
$0.30
QTY:

Sold By: EA

20-2

On Diagram

SCREW 8-32 X 3/8 SS

Part #: 031862
$0.30
QTY:

Sold By: EA

21

On Diagram

PLATE

Part #: 038372
$45.10
QTY:

Sold By: EA

22

On Diagram

SCREW 8-32 X 3/8 TRUSS

Part #: 034421
$2.00
QTY:

Sold By: EA

23

On Diagram

SHUTDOWN KIT

Part #: 041196
$409.80
QTY:

Sold By: KT

24

On Diagram

SCREW 6-32 X 3/8 SS

Part #: 031853
$0.20
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER 6 EXT TOOTH SS

Part #: 031841
$0.20
QTY:

Sold By: EA

26

On Diagram

STANDOFF

Part #: 041180
$1.90
QTY:

Sold By: EA

27

On Diagram

CAPACITOR ASSY 20.0 BEG

Part #: 043751
$17.90
QTY:

Sold By: EA

28

On Diagram

DIODE

Part #: 039240
$2.50
QTY:

Sold By: EA

29-1

On Diagram

HARNESS

Part #: 040623
$144.30
QTY:

Sold By: EA

29-2

On Diagram

HARNESS

Part #: 044634
$171.70
QTY:

Sold By: EA

30-1

On Diagram

HARNESS

Part #: 040624
$70.20
QTY:

Sold By: EA

30-2

On Diagram

HARNESS

Part #: 044616
$55.40
QTY:

Sold By: EA

31

On Diagram

DECAL

Part #: 033514
$3.40
QTY:

Sold By: EA

32

On Diagram

LABEL

Part #: 033748
$4.20
QTY:

Sold By: EA
