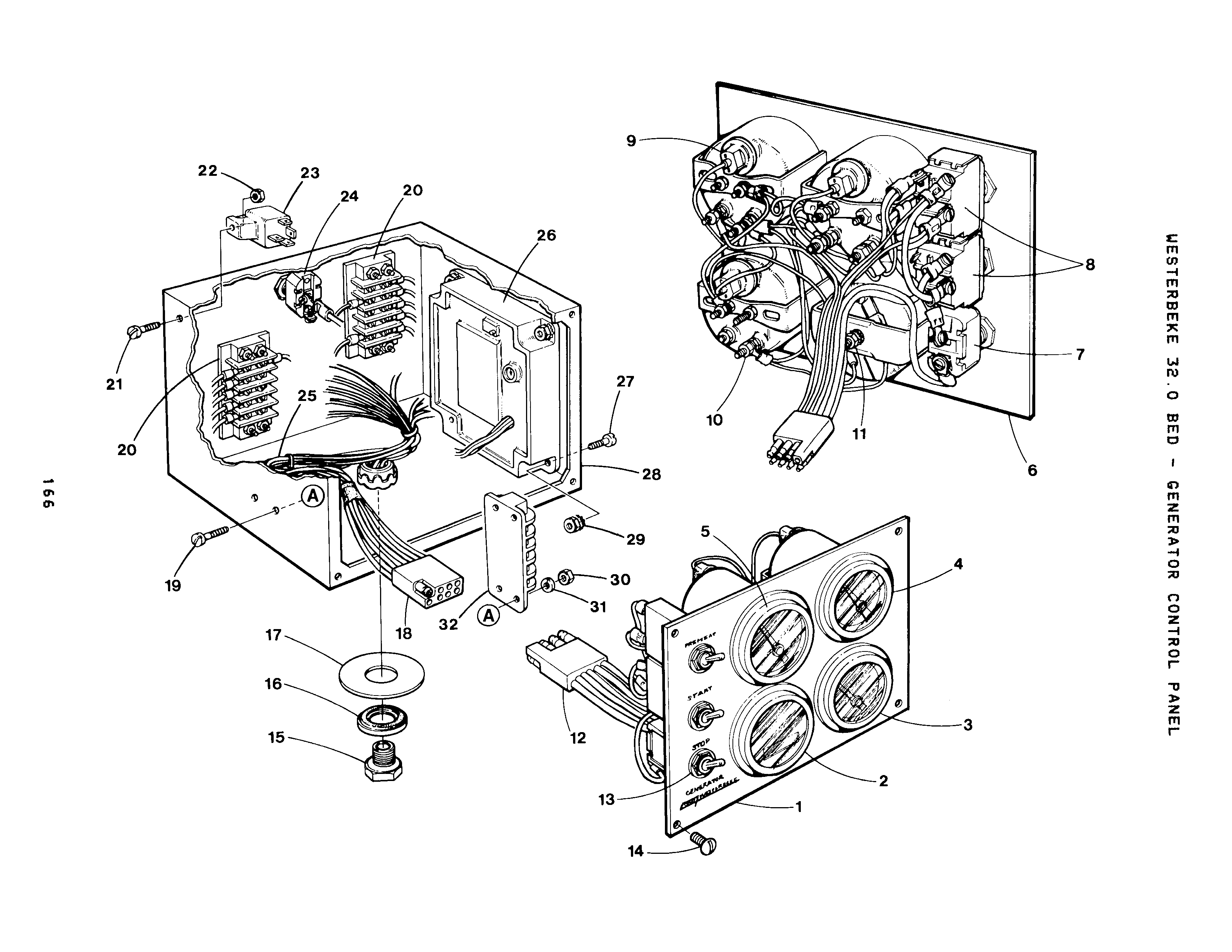

GENERATOR CONTROL PANEL

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

PANEL

Part #: 036539
$562.70
QTY:

Sold By: EA

2

On Diagram

METER

Part #: 036192
$146.30
QTY:

Sold By: EA

3

On Diagram

METER

Part #: 037605
$148.30
QTY:

Sold By: EA

4

On Diagram

METER

Part #: 037603
$129.40
QTY:

Sold By: EA

5

On Diagram

METER

Part #: 037601
$80.60
QTY:

Sold By: EA

6-1

On Diagram

PANEL

Part #: 034485
$36.70
QTY:

Sold By: EA

6-2

On Diagram

COVER

Part #: 035303
$34.40
QTY:

Sold By: EA

7

On Diagram

SWITCH

Part #: 024731
$40.30
QTY:

Sold By: EA

8

On Diagram

SWITCH

Part #: 024732
$46.50
QTY:

Sold By: EA

9-1

On Diagram

LAMP

Part #: 035114
$4.00
QTY:

Sold By: EA

9-2

On Diagram

HOLDER

Part #: 035118

This part is replaced with part number 042893

Price not found
QTY:

Sold By: EA

9-3

On Diagram

WIRE

Part #: 035825
$12.00
QTY:

Sold By: EA

10-1

On Diagram

NUT 10-32 BRASS

Part #: 031900
$0.30
QTY:

Sold By: EA

10-2

On Diagram

LOCKWASHER 10 MED BRONZE

Part #: 031902
$0.20
QTY:

Sold By: EA

11-1

On Diagram

NUT 8-32 SS

Part #: 031842
$0.20
QTY:

Sold By: EA

11-2

On Diagram

LOCKWASHER 8 MED SS

Part #: 031844
$0.30
QTY:

Sold By: EA

12

On Diagram

HARNESS

Part #: 036538
$54.40
QTY:

Sold By: EA

13

On Diagram

LOCKRING

Part #: 031999
$1.60
QTY:

Sold By: EA

14

On Diagram

SCREW 8-32 X 3/8 TRUSS

Part #: 034421
$2.00
QTY:

Sold By: EA

15

On Diagram

NIPPLE

Part #: 036464
$20.70
QTY:

Sold By: EA

16

On Diagram

RING

Part #: 036492
$8.70
QTY:

Sold By: EA

17

On Diagram

WASHER

Part #: 036837
$1.20
QTY:

Sold By: EA

18

On Diagram

HARNESS

Part #: 039925
$234.00
QTY:

Sold By: EA

19

On Diagram

SCREW 6-32 X 5/8 SS

Part #: 031855
$0.60
QTY:

Sold By: EA

20-1

On Diagram

BLOCK

Part #: 039928
$33.90
QTY:

Sold By: EA

20-2

On Diagram

MARKER

Part #: 039929
$5.00
QTY:

Sold By: EA

20-3

On Diagram

PLATE

Part #: 015222
$1.50
QTY:

Sold By: EA

21

On Diagram

SCREW 10-32 X 1/2 SS

Part #: 031872
$0.40
QTY:

Sold By: EA

22

On Diagram

NUT 10-32 KEPS

Part #: 200125
$0.30
QTY:

Sold By: EA

23-1

On Diagram

RELAY 12VDC 40A

Part #: 037833
$31.60
QTY:

Sold By: EA

23-2

On Diagram

RELAY 24VDC 20A

Part #: 039858
$61.30
QTY:

Sold By: EA

24-1

On Diagram

SWITCH

Part #: 033259
$16.90
QTY:

Sold By: EA

24-2

On Diagram

BOOT

Part #: 033258
$16.80
QTY:

Sold By: EA

24-3

On Diagram

LABEL

Part #: 033251
$3.40
QTY:

Sold By: EA

25

On Diagram

HARNESS

Part #: 036232

This part is no longer available.

$22.80
QTY:

Sold By: EA

26-1

On Diagram

CONTROLLER

Part #: 303008

This part is replaced with part number 049608

Price not found
QTY:

Sold By: EA

26-2

On Diagram

CONTROLLER

Part #: 039747

This part is replaced with part number 049608

Price not found
QTY:

Sold By: EA

27

On Diagram

SCREW 10-32 X 1/2 SS

Part #: 031872
$0.40
QTY:

Sold By: EA

28-1

On Diagram

PANEL

Part #: 039836

This part is no longer available.

$1,054.10
QTY:

Sold By: EA

28-2

On Diagram

BOX

Part #: 039368
$97.80
QTY:

Sold By: EA

28-3

On Diagram

COVER

Part #: 040185
$24.60
QTY:

Sold By: EA

29

On Diagram

NUT 10-32 KEPS

Part #: 200125
$0.30
QTY:

Sold By: EA

30

On Diagram

NUT 6-32 SS

Part #: 031837
$0.30
QTY:

Sold By: EA

31

On Diagram

LOCKWASHER 6 MED SS

Part #: 031839
$0.20
QTY:

Sold By: EA

32-1

On Diagram

BLOCK

Part #: 050201
$8.00
QTY:

Sold By: EA

32-2

On Diagram

MARKER

Part #: 050374
$2.60
QTY:

Sold By: EA

33

On Diagram

DECAL

Part #: 024968
$3.30
QTY:

Sold By: EA

34

On Diagram

DIAGRAM

Part #: 039422
Price not found
QTY:

Sold By: each
