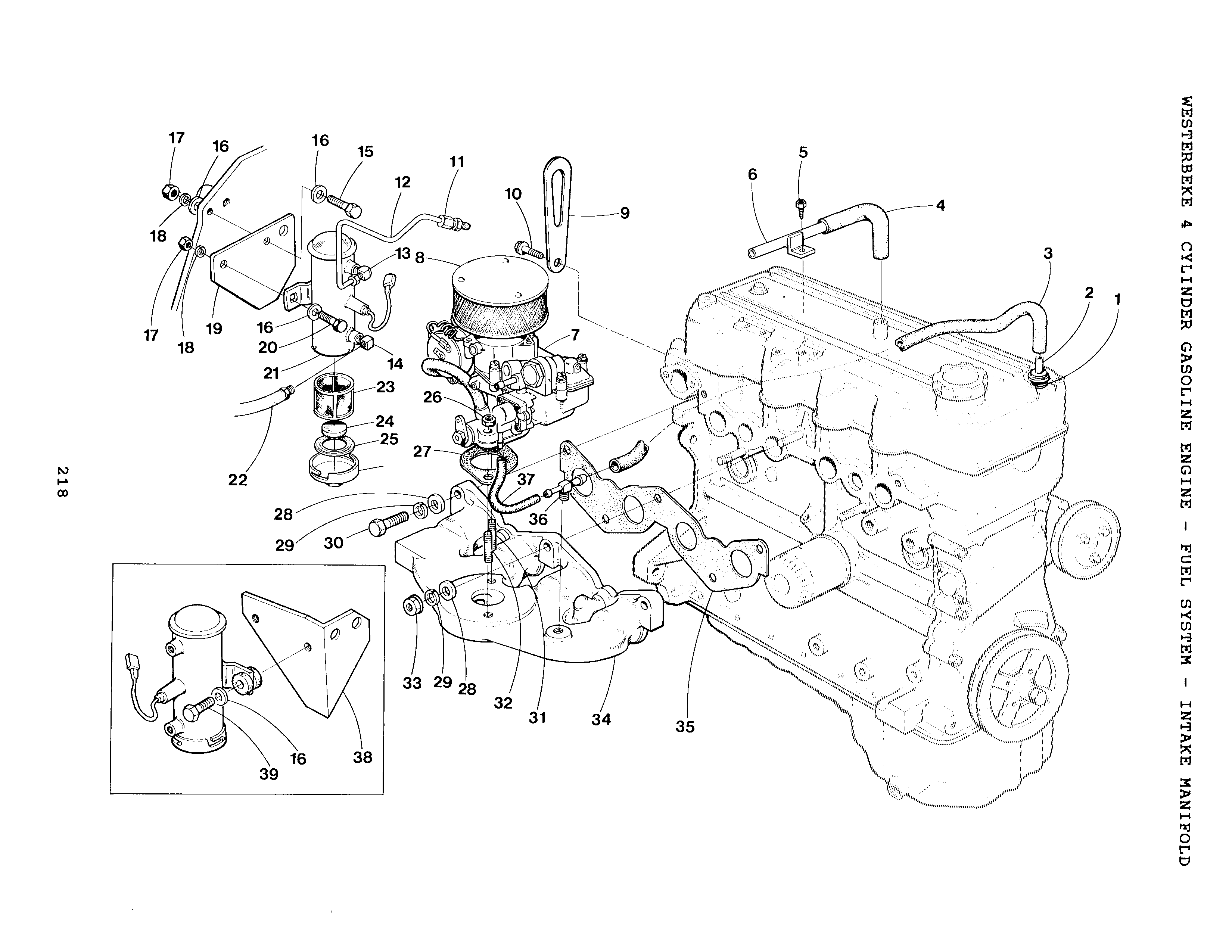

FUEL SYSTEM - INTAKE MANIFOLD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

SEAL

Part #: 034078
$7.20
QTY:

Sold By: EA

2

On Diagram

VALVE

Part #: 033808
$42.80
QTY:

Sold By: EA

3

On Diagram

HOSE

Part #: 034077
$45.90
QTY:

Sold By: EA

4

On Diagram

HOSE

Part #: 034076
$19.50
QTY:

Sold By: EA

5

On Diagram

SCREW M 5 X 12 TAPPING

Part #: 034175
$1.40
QTY:

Sold By: EA

6

On Diagram

TUBE

Part #: 033925

This part is replaced with part numbers 034076 & 034894

Price not found
QTY:

Sold By: each

7-1

On Diagram

CARBURETOR

Part #: 033751

This part is no longer available.

Price not found
QTY:

Sold By: EA

7-2

On Diagram

CARBURETOR

Part #: 033577
Price not found
QTY:

Sold By: each

8

On Diagram

ARRESTOR

Part #: 034894
$221.80
QTY:

Sold By: EA

9

On Diagram

EYE

Part #: 030131
$32.30
QTY:

Sold By: EA

10

On Diagram
$3.60
QTY:

Sold By: EA

11-1

On Diagram

CONNECTOR

Part #: 019449
$4.50
QTY:

Sold By: EA

11-2

On Diagram

NUT

Part #: 016676
$2.80
QTY:

Sold By: EA

11-3

On Diagram

FERRULE 1/4OD TUBE

Part #: 011597
$1.20
QTY:

Sold By: EA

12-1

On Diagram

TUBE

Part #: 033752
$34.00
QTY:

Sold By: EA

12-2

On Diagram

TUBE

Part #: 036223
$39.50
QTY:

Sold By: EA

13-1

On Diagram

ELBOW

Part #: 013329
$4.50
QTY:

Sold By: EA

13-2

On Diagram

NUT

Part #: 016676
$2.80
QTY:

Sold By: EA

13-3

On Diagram

FERRULE 1/4OD TUBE

Part #: 011597
$1.20
QTY:

Sold By: EA

14

On Diagram
$9.80
QTY:

Sold By: EA

15

On Diagram

CAPSCREW 1/4NCx1

Part #: 031505
$0.50
QTY:

Sold By: EA

16

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

17

On Diagram

NUT 1/4-20 NC

Part #: 031750
$0.40
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

19-1

On Diagram

BRACKET

Part #: 033698
Price not found
QTY:

Sold By: each

19-2

On Diagram

BRACKET

Part #: 033698
Price not found
QTY:

Sold By: each

20

On Diagram

CAPSCREW 1/4NCx3/4

Part #: 031503
$0.40
QTY:

Sold By: EA

21

On Diagram

PUMP

Part #: 033630
$489.90
QTY:

Sold By: EA

23

On Diagram

FILTER

Part #: 035920
$20.40
QTY:

Sold By: EA

24

On Diagram

MAGNET

Part #: 033792
$9.60
QTY:

Sold By: EA

26

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

27

On Diagram

GASKET

Part #: 033606
$6.50
QTY:

Sold By: EA

28

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

30

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

31

On Diagram

STUD

Part #: 011928
$11.00
QTY:

Sold By: EA

32

On Diagram

STUD

Part #: 011263
$4.00
QTY:

Sold By: EA

33

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

34

On Diagram

MANIFOLD

Part #: 033370

This part is no longer available.

$420.30
QTY:

Sold By: EA

35

On Diagram

GASKET

Part #: 033419
$38.20
QTY:

Sold By: EA

36-1

On Diagram

TEE

Part #: 033753
$37.80
QTY:

Sold By: EA

36-2

On Diagram

ELBOW 1/8NPT x 5/16 HOSE

Part #: 024907
$24.80
QTY:

Sold By: EA

37

On Diagram

HOSE

Part #: 033975

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.30
QTY:

Sold By: IN

38

On Diagram

BRACKET

Part #: 036052

This part is no longer available.

$16.80
QTY:

Sold By: EA

39

On Diagram

CAPSCREW 1/4NCx3/4

Part #: 031503
$0.40
QTY:

Sold By: EA
