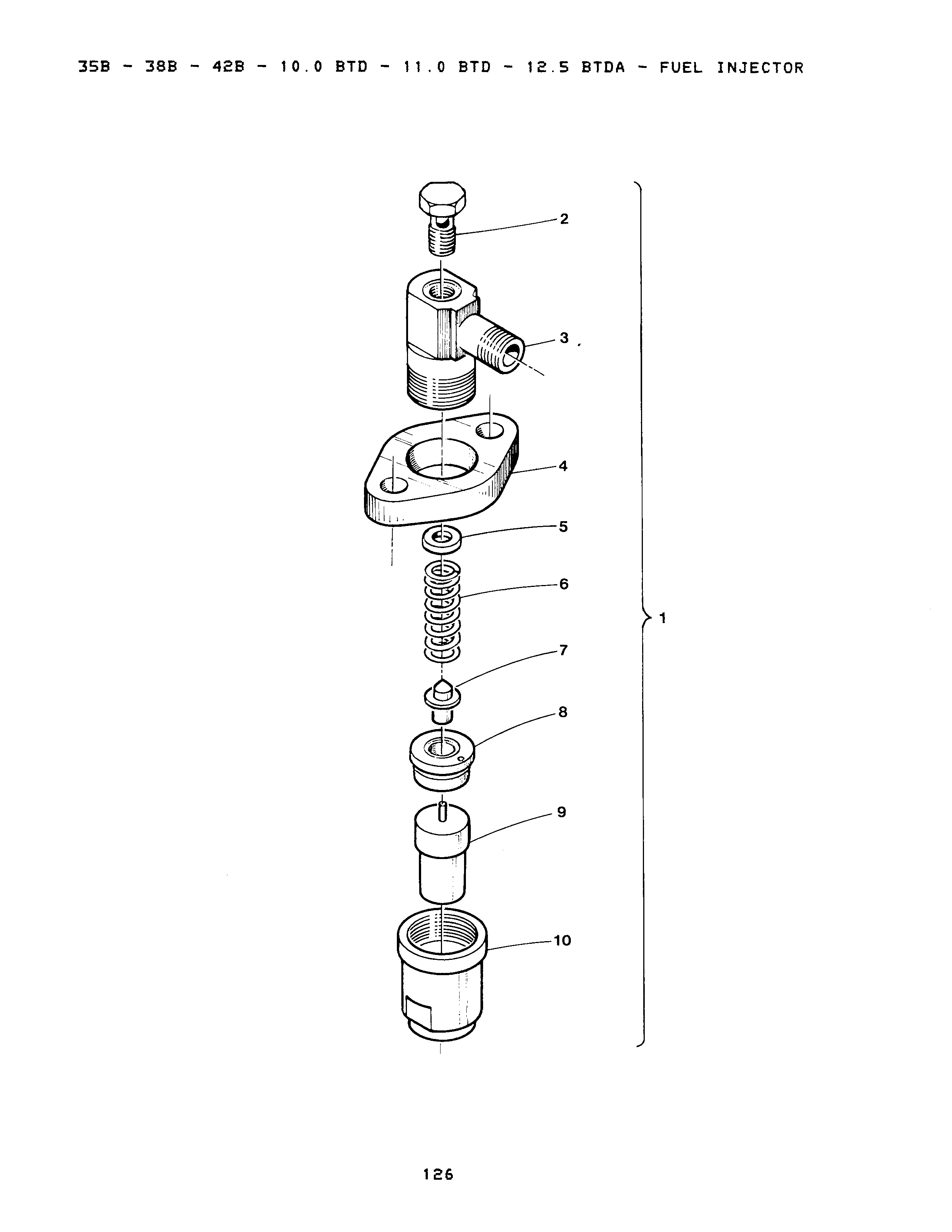

FUEL INJECTOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

INJECTOR

Part #: 030538
$395.50
QTY:

Sold By: EA

2

On Diagram

BOLT

Part #: 016988
$18.20
QTY:

Sold By: EA

3

On Diagram

BODY

Part #: 030684
$131.60
QTY:

Sold By: EA

4

On Diagram

FLANGE

Part #: 030629

This part is no longer available.

$41.10
QTY:

Sold By: EA

5-1

On Diagram

SHIM

Part #: 030621
$4.80
QTY:

Sold By: EA

5-2

On Diagram

SHIM

Part #: 030622

This part is no longer available.

$5.20
QTY:

Sold By: EA

5-3

On Diagram

SHIM

Part #: 030623
$5.30
QTY:

Sold By: EA

5-4

On Diagram

SHIM

Part #: 030624
$6.10
QTY:

Sold By: EA

5-5

On Diagram

SHIM

Part #: 030625
$5.20
QTY:

Sold By: EA

5-6

On Diagram

SHIM

Part #: 030626
$4.70
QTY:

Sold By: EA

5-7

On Diagram

SHIM

Part #: 030627
$5.20
QTY:

Sold By: EA

5-8

On Diagram

SHIM

Part #: 030628
$4.70
QTY:

Sold By: EA

6

On Diagram

SPRING

Part #: 030598
$13.00
QTY:

Sold By: EA

7

On Diagram

PIN

Part #: 030597
$8.00
QTY:

Sold By: EA

8

On Diagram

SPACER

Part #: 030599
$25.50
QTY:

Sold By: EA

9

On Diagram

NOZZLE

Part #: 030297
$197.60
QTY:

Sold By: EA

10

On Diagram

NUT

Part #: 030630
$110.20
QTY:

Sold By: EA
