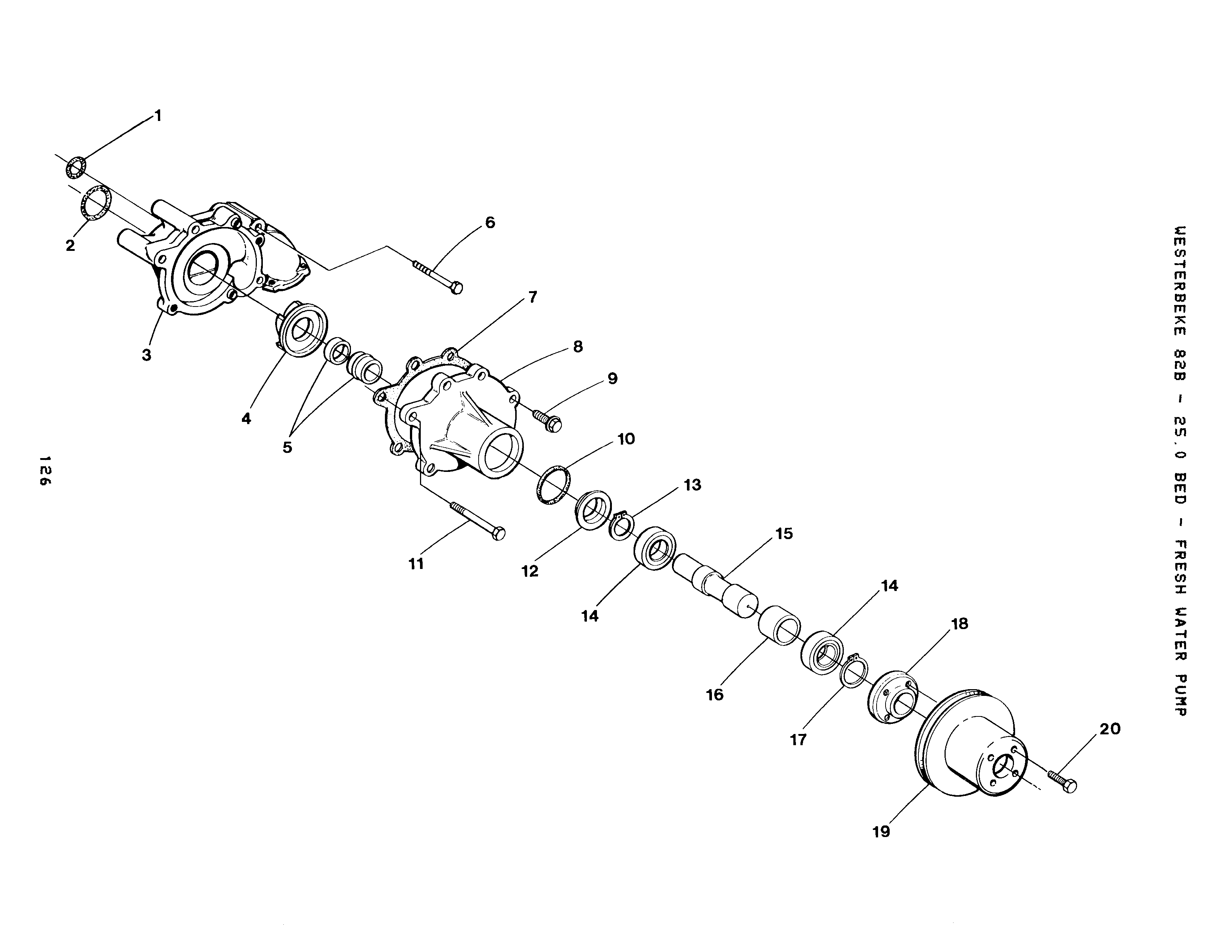

FRESH WATER PUMP

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GASKET

Part #: 032708
$18.10
QTY:

Sold By: EA

2

On Diagram

GASKET

Part #: 032709
$28.10
QTY:

Sold By: EA

3

On Diagram

HOUSING

Part #: 032710

This part is no longer available.

$143.70
QTY:

Sold By: EA

5

On Diagram

SEAL

Part #: 024480
$38.70
QTY:

Sold By: EA

6

On Diagram
$5.70
QTY:

Sold By: EA

7

On Diagram

GASKET

Part #: 032712

This part is replaced with part number 041376

Price not found
QTY:

Sold By: EA

8

On Diagram

HOUSING

Part #: 032711
$256.30
QTY:

Sold By: EA

9

On Diagram
$4.40
QTY:

Sold By: EA

11

On Diagram
$6.30
QTY:

Sold By: EA

12

On Diagram

PLATE

Part #: 024479

This part is no longer available.

$5.70
QTY:

Sold By: EA

13

On Diagram

CIRCLIP

Part #: 024414
$4.30
QTY:

Sold By: EA

14

On Diagram

BEARING

Part #: 024568
$64.50
QTY:

Sold By: EA

16

On Diagram

SPACER

Part #: 024477
$7.90
QTY:

Sold By: EA

17

On Diagram

CIRCLIP

Part #: 024413
$6.80
QTY:

Sold By: EA

18

On Diagram

FLANGE

Part #: 032713
$36.70
QTY:

Sold By: EA

19

On Diagram

PULLEY

Part #: 031037

This part is no longer available.

$60.30
QTY:

Sold By: EA

20

On Diagram
$3.60
QTY:

Sold By: EA
