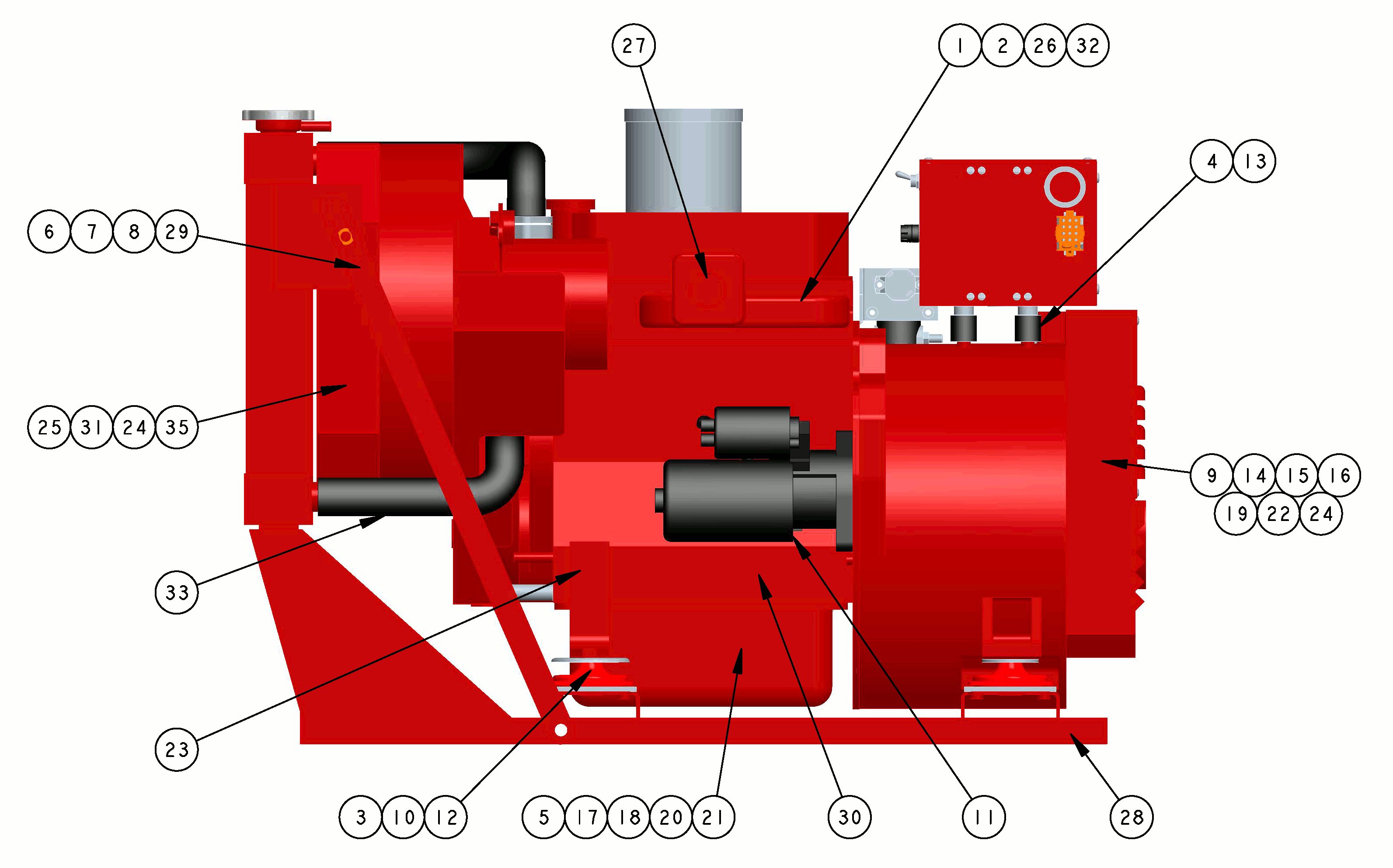

EXHAUST VIEW

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

STUD M 8x25 DIN 939

Part #: 015830

$3.50

QTY:

Sold By: EA

2

On Diagram

NUT M 8 DIN 934

Part #: 018242

$0.30

QTY:

Sold By: EA

3

On Diagram

WASHER

Part #: 024674

$2.20

QTY:

Sold By: EA

4

On Diagram

SPACER

Part #: 024836

$7.60

QTY:

Sold By: EA

5

On Diagram

HOSE

Part #: 030846

$96.60

QTY:

Sold By: EA

6

On Diagram

CAPSCREW 1/2NCx1-1/4

Part #: 031706

$1.50

QTY:

Sold By: EA

7

On Diagram

NUT 1/2-13 NC

Part #: 031774

$0.40

QTY:

Sold By: EA

8

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776

$0.20

QTY:

Sold By: EA

9

On Diagram

GEAR

Part #: 032996

$120.70

QTY:

Sold By: EA

10

On Diagram

SHIELD

Part #: 033530

$6.30

QTY:

Sold By: EA

11

On Diagram

MOTOR

Part #: 034552

$835.20

QTY:

Sold By: EA

12

On Diagram

STRAP

Part #: 034593

$16.50

QTY:

Sold By: EA

13

On Diagram

ISOLATOR

Part #: 034731

$8.40

QTY:

Sold By: EA

14

On Diagram

PLATE

Part #: 035927

$92.30

QTY:

Sold By: EA

15

On Diagram

FAN

Part #: 035929

$175.80

QTY:

Sold By: EA

16

On Diagram

ARMATURE BT 8KW 1PH

Part #: 035930

$2,884.90

QTY:

Sold By: EA

17

On Diagram

WASHER

Part #: 036493

$1.50

QTY:

Sold By: EA

18

On Diagram

BOLT

Part #: 036819

$36.40

QTY:

Sold By: EA

19

On Diagram

BOLT

Part #: 036924

$7.80

QTY:

Sold By: EA

20

On Diagram

GASKET

Part #: 036988

$35.60

QTY:

Sold By: EA

21

On Diagram

SUMP

Part #: 037095

$341.20

QTY:

Sold By: EA

22

On Diagram

GENERATOR 8.0KW BT 1 Phase

Part #: 037428

$5,309.90

QTY:

Sold By: EA

23

On Diagram

MOUNT

Part #: 038113

$78.00

QTY:

Sold By: EA

24

On Diagram

FLYWHEEL ASSEMBLY

Part #: 038202

$452.40

QTY:

Sold By: EA

25

On Diagram

FAN

Part #: 038995

$136.50

QTY:

Sold By: EA

26

On Diagram

GASKET

Part #: 039477

$15.70

QTY:

Sold By: EA

27

On Diagram

ADAPTER

Part #: 039508

$176.40

QTY:

Sold By: EA

28

On Diagram

BASE

Part #: 039863

$305.60

QTY:

Sold By: EA

29

On Diagram

BRACKET

Part #: 039882

$52.00

QTY:

Sold By: EA

30

On Diagram

ENGINE

Part #: 054199

This part is no longer available.

$3,691.90

QTY:

Sold By: EA

31

On Diagram

GUARD

Part #: 040472

$627.10

QTY:

Sold By: EA

32

On Diagram

MANIFOLD

Part #: 040503

$359.00

QTY:

Sold By: EA

33

On Diagram

HOSE

Part #: 040560

$23.50

QTY:

Sold By: EA

34

On Diagram

SPACER

Part #: 040596

$424.20

QTY:

Sold By: EA

35

On Diagram

BELT

Part #: 301073

$49.40

QTY:

Sold By: EA
