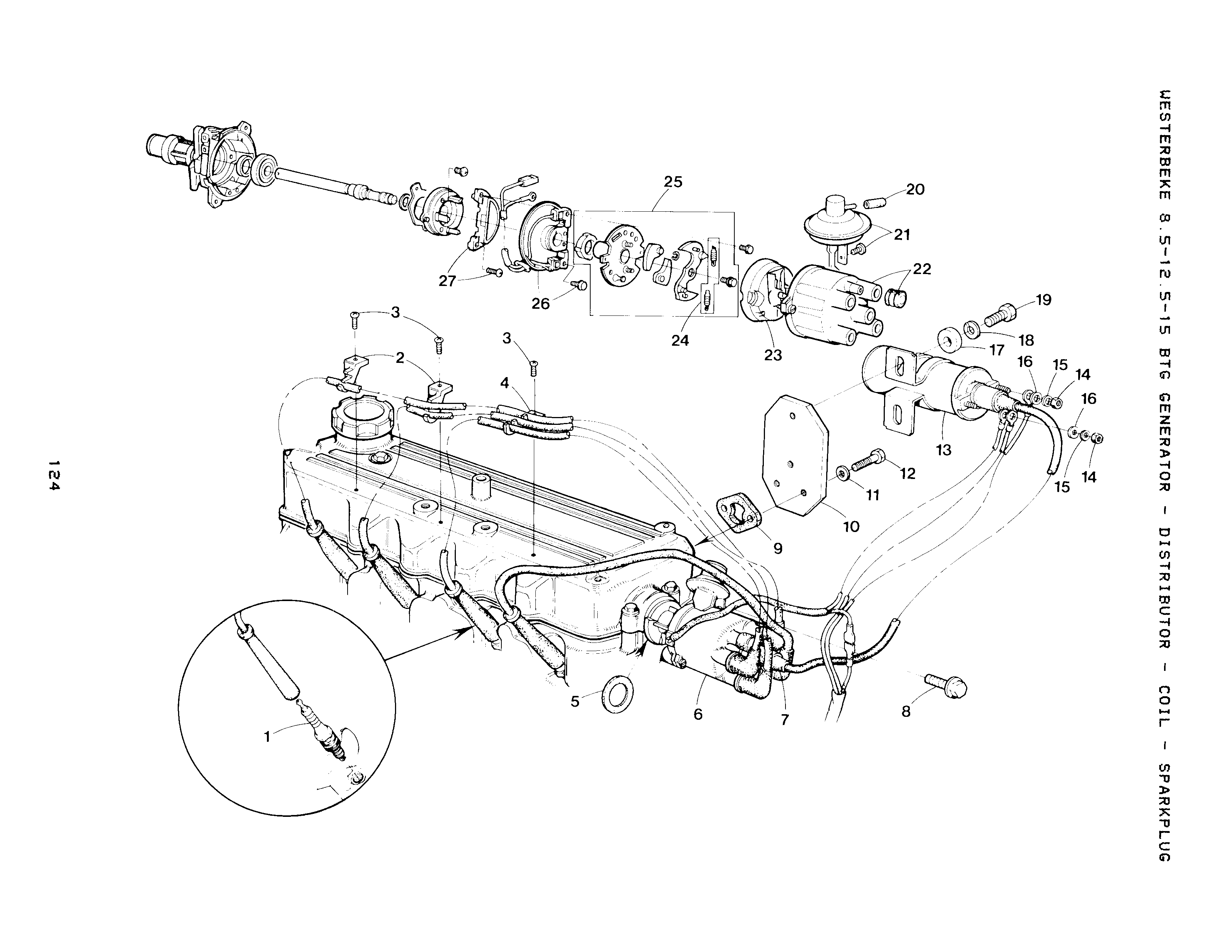

DISTRIBUTOR - COIL - SPARKPLUG

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

SPARKPLUG

Part #: 033805
$8.90
QTY:

Sold By: EA

2

On Diagram

BRACKET

Part #: 034056

This part is no longer available.

$6.20
QTY:

Sold By: EA

3

On Diagram

SCREW M 5 X 12 TAPPING

Part #: 034175
$1.40
QTY:

Sold By: EA

4

On Diagram

BRACKET

Part #: 034054

This part is no longer available. Use part number 040769.

$6.70
QTY:

Sold By: EA

5

On Diagram

O-RING

Part #: 034469
$8.50
QTY:

Sold By: EA

6-1

On Diagram

DISTRIBUTOR

Part #: 033807

This part is no longer available.

$1,375.00
QTY:

Sold By: EA

6-2

On Diagram

DISTRIBUTR

Part #: 034106

This part is replaced with part numbers 043600 & 043608

Price not found
QTY:

Sold By: EA

7

On Diagram

WIRE SET

Part #: 033817
$47.50
QTY:

Sold By: ST

8

On Diagram
$4.40
QTY:

Sold By: EA

9

On Diagram

GASKET

Part #: 034234
$2.10
QTY:

Sold By: EA

10

On Diagram

BRACKET

Part #: 033697
$18.90
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

12

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

13

On Diagram

COIL

Part #: 033806
$280.90
QTY:

Sold By: EA

14

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

16

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

17

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

19

On Diagram

CAPSCREW 5/16NCx3/4

Part #: 031553
$0.40
QTY:

Sold By: EA

20

On Diagram

CAP

Part #: 033885
$0.40
QTY:

Sold By: EA

21

On Diagram

MODULE

Part #: 034453

This part is no longer available.

$98.40
QTY:

Sold By: EA

22

On Diagram

CAP

Part #: 034113

IMPORTANT: Two different distributor caps were used for this application. Please check the shape of the distributor cap you are replacing. It's possible that you require distributor cap part number 043597

$75.70
QTY:

Sold By: EA

23

On Diagram

ROTOR

Part #: 034093
$66.60
QTY:

Sold By: EA

24-1

On Diagram

SPRING KIT

Part #: 034052
$20.90
QTY:

Sold By: KT

24-2

On Diagram

SPRING SET

Part #: 034107

This part is no longer available.

$20.90
QTY:

Sold By: ST

25-1

On Diagram

GOVERNOR

Part #: 034051

This part is no longer available.

$282.00
QTY:

Sold By: EA

25-2

On Diagram

GOVERNOR

Part #: 034108

This part is no longer available.

$155.00
QTY:

Sold By: EA

26

On Diagram

MODULE

Part #: 034114

This part is replaced with part number 040609 for generators or part number 040610 for engines

Price not found
QTY:

Sold By: EA

27

On Diagram

IGNITER

Part #: 034164
$918.40
QTY:

Sold By: EA
