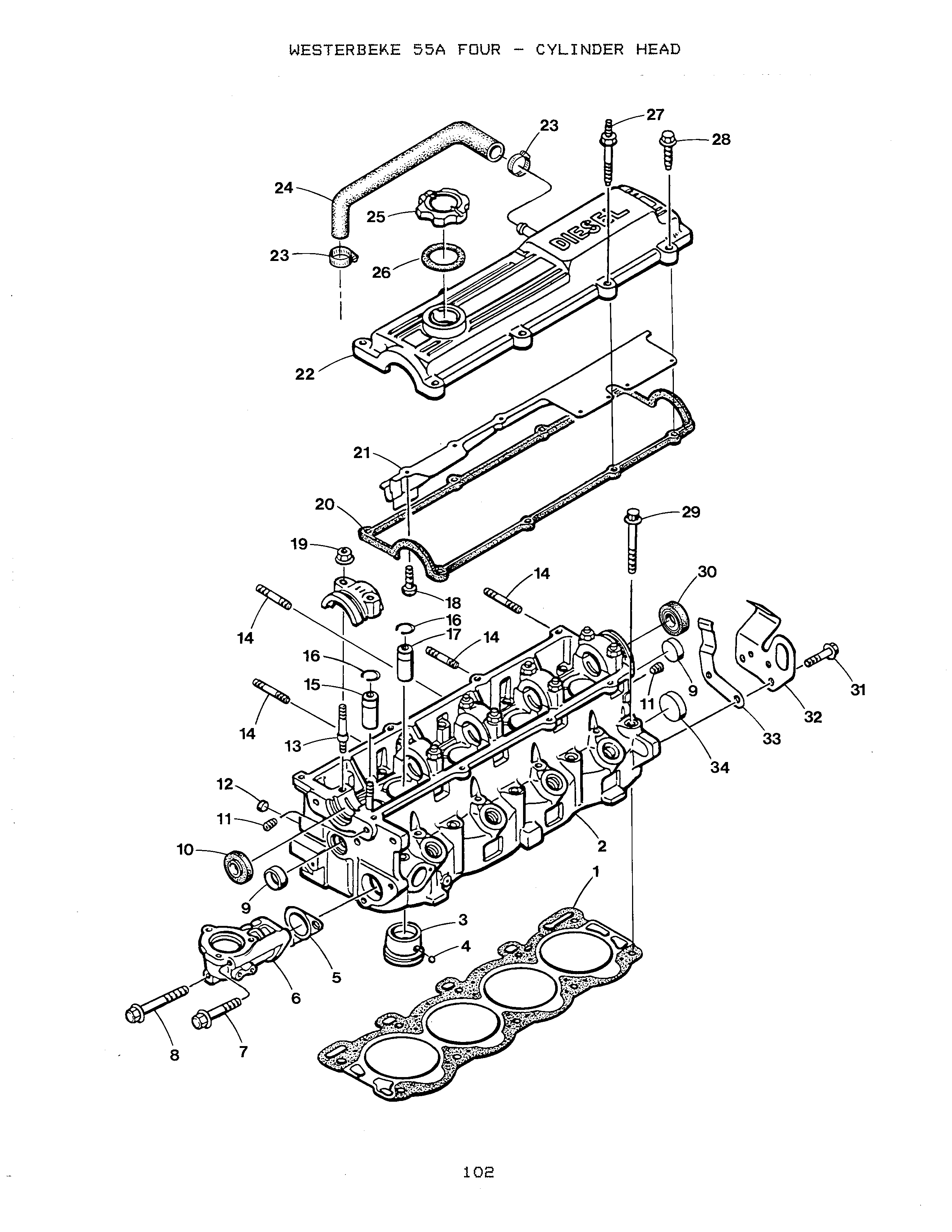

CYLINDER HEAD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GASKET

Part #: 041819
$286.60
QTY:

Sold By: EA

2

On Diagram

HEAD

Part #: 041807
$1,693.00
QTY:

Sold By: EA

3

On Diagram

INSERT

Part #: 041809

This part is no longer available.

$99.50
QTY:

Sold By: EA

4

On Diagram

BALL

Part #: 044020

This part is no longer available.

$2.20
QTY:

Sold By: EA

5

On Diagram

GASKET

Part #: 041813
$9.40
QTY:

Sold By: EA

6

On Diagram

HOUSING

Part #: 041812

This part is no longer available.

$152.70
QTY:

Sold By: EA

7

On Diagram

CAPSCREW M 8x115 JIS-FLANGE

Part #: 044022
$4.10
QTY:

Sold By: EA

8

On Diagram

CAPSCREW M 8x90 JIS-FLANGE

Part #: 041428

This part is no longer available.

$5.30
QTY:

Sold By: EA

9

On Diagram

PLUG

Part #: 024373
$4.70
QTY:

Sold By: EA

10

On Diagram

SEAL

Part #: 041857

This part is no longer available.

$22.10
QTY:

Sold By: EA

11

On Diagram

PLUG

Part #: 044019

This part is no longer available.

$2.20
QTY:

Sold By: EA

12

On Diagram

PLUG

Part #: 033625
$4.70
QTY:

Sold By: EA

13

On Diagram

STUD

Part #: 041808

This part is no longer available.

$10.30
QTY:

Sold By: EA

14

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

15

On Diagram

GUIDE

Part #: 041820
$17.70
QTY:

Sold By: EA

16

On Diagram

CLIP

Part #: 034118
$1.40
QTY:

Sold By: EA

17

On Diagram

GUIDE

Part #: 041821
$23.50
QTY:

Sold By: EA

18

On Diagram

SCREW M 4 X 8 TAPPING

Part #: 033652
$1.40
QTY:

Sold By: EA

19

On Diagram

NUT

Part #: 041810

This part is no longer available.

$3.20
QTY:

Sold By: EA

20

On Diagram

GASKET

Part #: 041818

This part is no longer available.

$56.50
QTY:

Sold By: EA

21

On Diagram

PLATE

Part #: 041815

This part is no longer available.

$28.50
QTY:

Sold By: EA

22

On Diagram

COVER

Part #: 041816
$252.00
QTY:

Sold By: EA

23

On Diagram

CLAMP

Part #: 017298
$2.70
QTY:

Sold By: EA

24

On Diagram

HOSE

Part #: 040083

This part is no longer available.

$14.70
QTY:

Sold By: EA

25

On Diagram

CAP

Part #: 040151
$25.40
QTY:

Sold By: EA

27

On Diagram

STUD

Part #: 041817

This part is no longer available.

$7.30
QTY:

Sold By: EA

28

On Diagram

CAPSCREW

Part #: 044031

This part is no longer available.

$2.20
QTY:

Sold By: EA

29

On Diagram

BOLT

Part #: 041811
$31.60
QTY:

Sold By: EA

30

On Diagram

CAP

Part #: 041886
$11.00
QTY:

Sold By: EA

31

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

32

On Diagram

EYE

Part #: 041814

This part is no longer available.

$16.80
QTY:

Sold By: EA

33

On Diagram

RETAINER

Part #: 041828
$6.70
QTY:

Sold By: EA

34

On Diagram

PLUG

Part #: 024374
$4.70
QTY:

Sold By: EA
