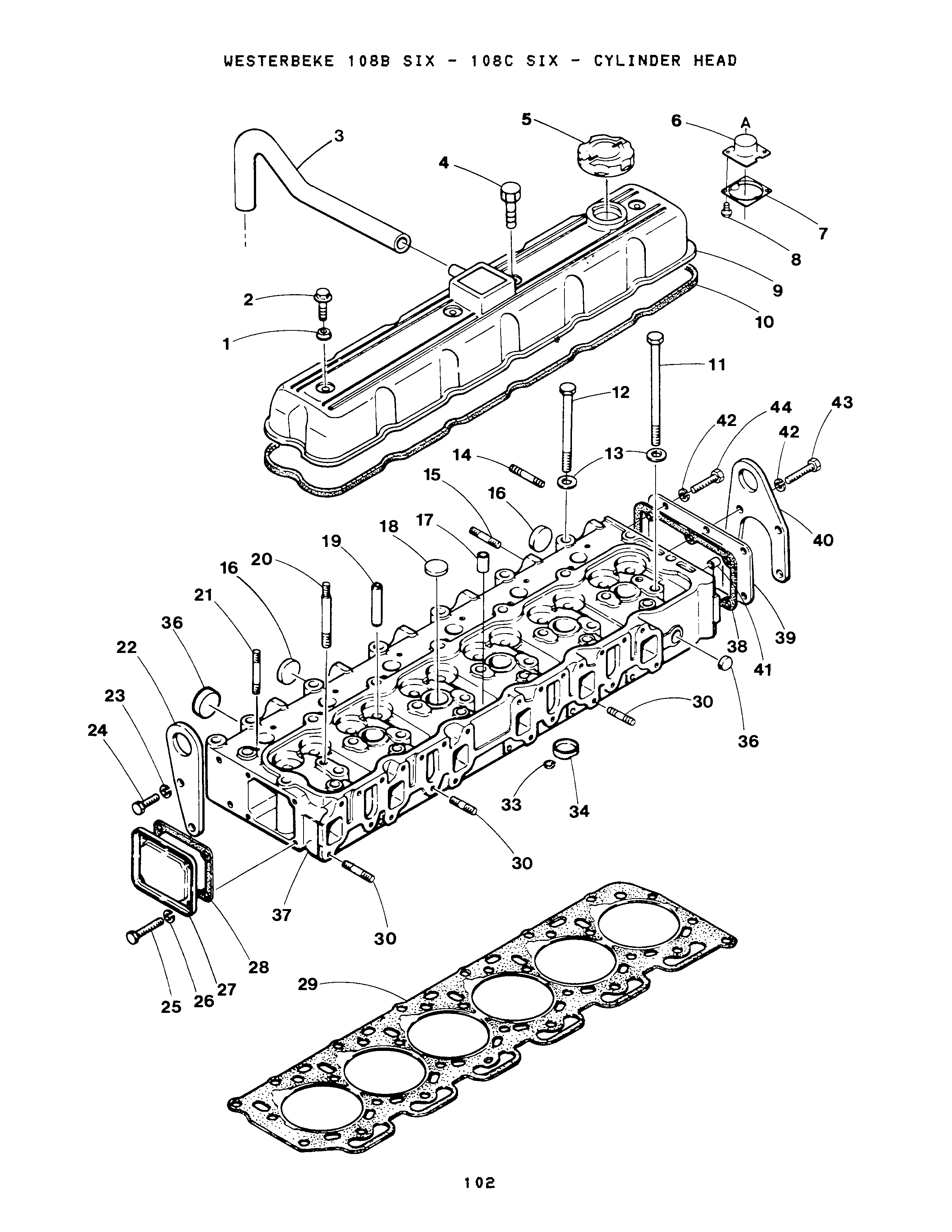

CYLINDER HEAD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

SEAL

Part #: 030985
$6.20
QTY:

Sold By: EA

1-2

On Diagram

SEAL

Part #: 040659
$8.00
QTY:

Sold By: EA

2-1

On Diagram

CAPSCREW 5/16NFx5/8

Part #: 031577
$0.50
QTY:

Sold By: EA

2-2

On Diagram

NUT

Part #: 024526

This part is no longer available.

Price not found
QTY:

Sold By: EA

3-1

On Diagram

HOSE

Part #: 032756

This part is no longer available.

$18.30
QTY:

Sold By: EA

3-2

On Diagram

HOSE

Part #: 040662

This part is no longer available.

Price not found
QTY:

Sold By: EA

4

On Diagram

CAPSCREW 5/16NFx1-1/2

Part #: 031582
$0.70
QTY:

Sold By: EA

5-1

On Diagram

CAP

Part #: 030986
$13.90
QTY:

Sold By: EA

5-2

On Diagram

CAP

Part #: 040151
$25.40
QTY:

Sold By: EA

5-3

On Diagram

CAP

Part #: 040661
$11.40
QTY:

Sold By: EA

6

On Diagram

PLATE

Part #: 032753
$6.50
QTY:

Sold By: EA

7

On Diagram

PLATE

Part #: 032754
$6.70
QTY:

Sold By: EA

8

On Diagram

SCREW M 4 X 8 TAPPING

Part #: 033652
$1.40
QTY:

Sold By: EA

9-1

On Diagram

COVER

Part #: 032752
$406.20
QTY:

Sold By: EA

9-2

On Diagram

COVER

Part #: 040658
$94.00
QTY:

Sold By: EA

10-1

On Diagram

GASKET

Part #: 032755

This part is no longer available.

$57.60
QTY:

Sold By: EA

10-2

On Diagram

GASKET

Part #: 040660
$34.00
QTY:

Sold By: EA

11

On Diagram

BOLT

Part #: 024372

This part is no longer available.

$26.10
QTY:

Sold By: EA

12

On Diagram

BOLT

Part #: 024371

This part is no longer available.

$26.10
QTY:

Sold By: EA

13

On Diagram

WASHER

Part #: 017849
$3.90
QTY:

Sold By: EA

14

On Diagram

STUD

Part #: 012495
$4.70
QTY:

Sold By: EA

15

On Diagram

STUD

Part #: 012497
$4.60
QTY:

Sold By: EA

16

On Diagram

PLUG

Part #: 024349
$8.50
QTY:

Sold By: EA

17

On Diagram

CAP

Part #: 024370

This part is no longer available.

$8.50
QTY:

Sold By: EA

18-1

On Diagram

PLUG

Part #: 024373
$4.70
QTY:

Sold By: EA

18-2

On Diagram

PLUG

Part #: 024336

This part is no longer available.

$8.50
QTY:

Sold By: EA

19-1

On Diagram

GUIDE

Part #: 024366

This part is no longer available.

$22.60
QTY:

Sold By: EA

19-2

On Diagram

GUIDE

Part #: 040653
$12.90
QTY:

Sold By: EA

20-1

On Diagram

STUD

Part #: 033667
$3.80
QTY:

Sold By: EA

20-2

On Diagram

STUD

Part #: 038325

This part is no longer available.

Price not found
QTY:

Sold By: EA

21

On Diagram

STUD

Part #: 032379

This part is no longer available.

$3.70
QTY:

Sold By: EA

22

On Diagram

EYE

Part #: 032816

This part is no longer available.

$18.80
QTY:

Sold By: EA

23

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

24

On Diagram

CAPSCREW 3/8NFx1

Part #: 031630
$0.50
QTY:

Sold By: EA

25

On Diagram

CAPSCREW 5/16NFx5/8

Part #: 031577
$0.50
QTY:

Sold By: EA

26

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

27

On Diagram

PLATE

Part #: 024376

This part is no longer available.

$9.70
QTY:

Sold By: EA

28

On Diagram

GASKET

Part #: 024377
$4.20
QTY:

Sold By: EA

29

On Diagram

GASKET

Part #: 032818

This part is no longer available.

$261.70
QTY:

Sold By: EA

30

On Diagram

STUD

Part #: 038510
$8.80
QTY:

Sold By: EA

36

On Diagram

PLUG

Part #: 024373
$4.70
QTY:

Sold By: EA

37-1

On Diagram

HEAD

Part #: 032750

This part is no longer available.

$4,887.30
QTY:

Sold By: EA

37-2

On Diagram

HEAD

Part #: 040652
$1,906.20
QTY:

Sold By: EA

38-1

On Diagram

GASKET

Part #: 024375

This part is no longer available.

$19.00
QTY:

Sold By: EA

38-2

On Diagram

GASKET

Part #: 040656
$147.20
QTY:

Sold By: EA

39-1

On Diagram

COVER

Part #: 032814
$29.10
QTY:

Sold By: EA

39-2

On Diagram

COVER

Part #: 040657
$30.10
QTY:

Sold By: EA

40

On Diagram

EYE

Part #: 032815

This part is no longer available.

$5.50
QTY:

Sold By: EA

41-1

On Diagram

PLUG

Part #: 024345

This part is no longer available.

$9.70
QTY:

Sold By: EA

41-2

On Diagram

PLUG

Part #: 040654
$12.10
QTY:

Sold By: EA

42

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

43

On Diagram

CAPSCREW 5/16NFx7/8

Part #: 031579
$0.50
QTY:

Sold By: EA

44

On Diagram

CAPSCREW 5/16NFx5/8

Part #: 031577
$0.50
QTY:

Sold By: EA
