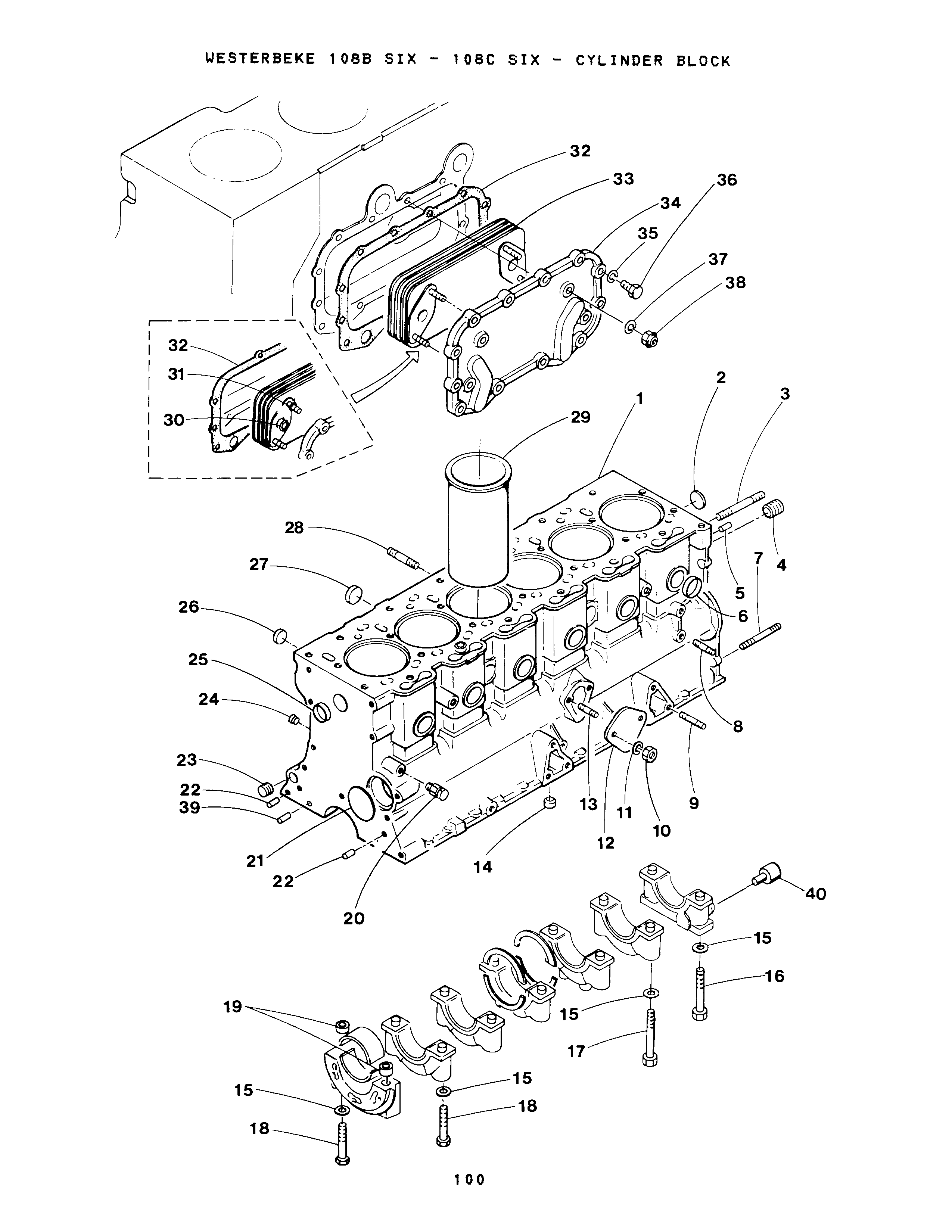

CYLINDER BLOCK

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

BLOCK

Part #: 034927

This part is replaced with part number 041044

Price not found
QTY:

Sold By: EA

1-2

On Diagram

BLOCK

Part #: 040739

This part is no longer available.

Price not found
QTY:

Sold By: EA

1-3

On Diagram

BLOCK

Part #: 040739

This part is no longer available.

Price not found
QTY:

Sold By: EA

1-4

On Diagram

BLOCK

Part #: 040745

This part is no longer available.

Price not found
QTY:

Sold By: EA

1-5

On Diagram

BLOCK

Part #: 040743

This part is no longer available.

Price not found
QTY:

Sold By: EA

1-6

On Diagram

BLOCK

Part #: 041044

This part is no longer available.

Price not found
QTY:

Sold By: EA

2

On Diagram

PLUG

Part #: 024374
$4.70
QTY:

Sold By: EA

3

On Diagram

STUD

Part #: 030967

This part is no longer available.

$6.70
QTY:

Sold By: EA

4

On Diagram

PLUG

Part #: 024364
$5.90
QTY:

Sold By: EA

5

On Diagram

DOWEL 12MM x 28MM DIN 6325

Part #: 032368

This part is no longer available.

$4.70
QTY:

Sold By: EA

6

On Diagram

PLUG

Part #: 024374
$4.70
QTY:

Sold By: EA

7

On Diagram

STUD

Part #: 033638

This part is no longer available.

Price not found
QTY:

Sold By: EA

8

On Diagram

STUD

Part #: 012502
$8.40
QTY:

Sold By: EA

9

On Diagram

STUD

Part #: 012503
$8.20
QTY:

Sold By: EA

10

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

12

On Diagram

PLATE

Part #: 024382

This part is no longer available.

$5.30
QTY:

Sold By: EA

13

On Diagram

STUD

Part #: 012498
$6.40
QTY:

Sold By: EA

14

On Diagram

PLUG

Part #: 032820

This part is no longer available.

$1.60
QTY:

Sold By: EA

15

On Diagram

WASHER

Part #: 017849
$3.90
QTY:

Sold By: EA

16-1

On Diagram

BOLT

Part #: 032821

This part is no longer available.

$10.50
QTY:

Sold By: EA

16-2

On Diagram

BOLT

Part #: 024387

This part is no longer available.

Price not found
QTY:

Sold By: EA

17

On Diagram

BOLT

Part #: 024386
$8.50
QTY:

Sold By: EA

18-1

On Diagram

BOLT

Part #: 024371

This part is no longer available.

$26.10
QTY:

Sold By: EA

18-2

On Diagram

BOLT

Part #: 032821

This part is no longer available.

$10.50
QTY:

Sold By: EA

19

On Diagram

DOWEL

Part #: 024383
$7.90
QTY:

Sold By: EA

20

On Diagram

PLUG 1/4 NPT

Part #: 024601
$1.80
QTY:

Sold By: EA

21

On Diagram

PLUG

Part #: 024379
$6.20
QTY:

Sold By: EA

22

On Diagram

DOWEL

Part #: 011498
$1.60
QTY:

Sold By: EA

23

On Diagram

PLUG

Part #: 023143
Price not found
QTY:

Sold By: EA

24

On Diagram

PLUG 1/8 NPT SOCKET

Part #: 024523
$5.80
QTY:

Sold By: EA

25

On Diagram

PLUG

Part #: 024374
$4.70
QTY:

Sold By: EA

26

On Diagram

PLUG

Part #: 024373
$4.70
QTY:

Sold By: EA

27

On Diagram

PLUG

Part #: 024374
$4.70
QTY:

Sold By: EA

28

On Diagram

STUD

Part #: 012503
$8.20
QTY:

Sold By: EA

29-1

On Diagram

LINER

Part #: 032789
$553.20
QTY:

Sold By: EA

29-2

On Diagram

LINER

Part #: 040663

This part is no longer available.

$175.50
QTY:

Sold By: EA

30

On Diagram

O-RING

Part #: 032908
$29.60
QTY:

Sold By: EA

31

On Diagram

O-RING

Part #: 032906
$12.10
QTY:

Sold By: EA

32

On Diagram

GASKET

Part #: 032859
$15.60
QTY:

Sold By: EA

33-1

On Diagram

CORE

Part #: 032857

This part is no longer available.

Price not found
QTY:

Sold By: EA

33-2

On Diagram

COOLER,OIL 108C

Part #: 040732

This part is no longer available.

$441.80
QTY:

Sold By: EA

34

On Diagram

COVER

Part #: 032858

This part is no longer available.

$199.60
QTY:

Sold By: EA

35

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

36

On Diagram

CAPSCREW 5/16NFx7/8

Part #: 031579
$0.50
QTY:

Sold By: EA

37

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

38

On Diagram

NUT

Part #: 031767
$0.50
QTY:

Sold By: EA

39

On Diagram

DOWEL 6MM x 16MM DIN 6325

Part #: 024393
$2.20
QTY:

Sold By: EA

40-2

On Diagram

HUB

Part #: 040664
$57.30
QTY:

Sold By: EA
