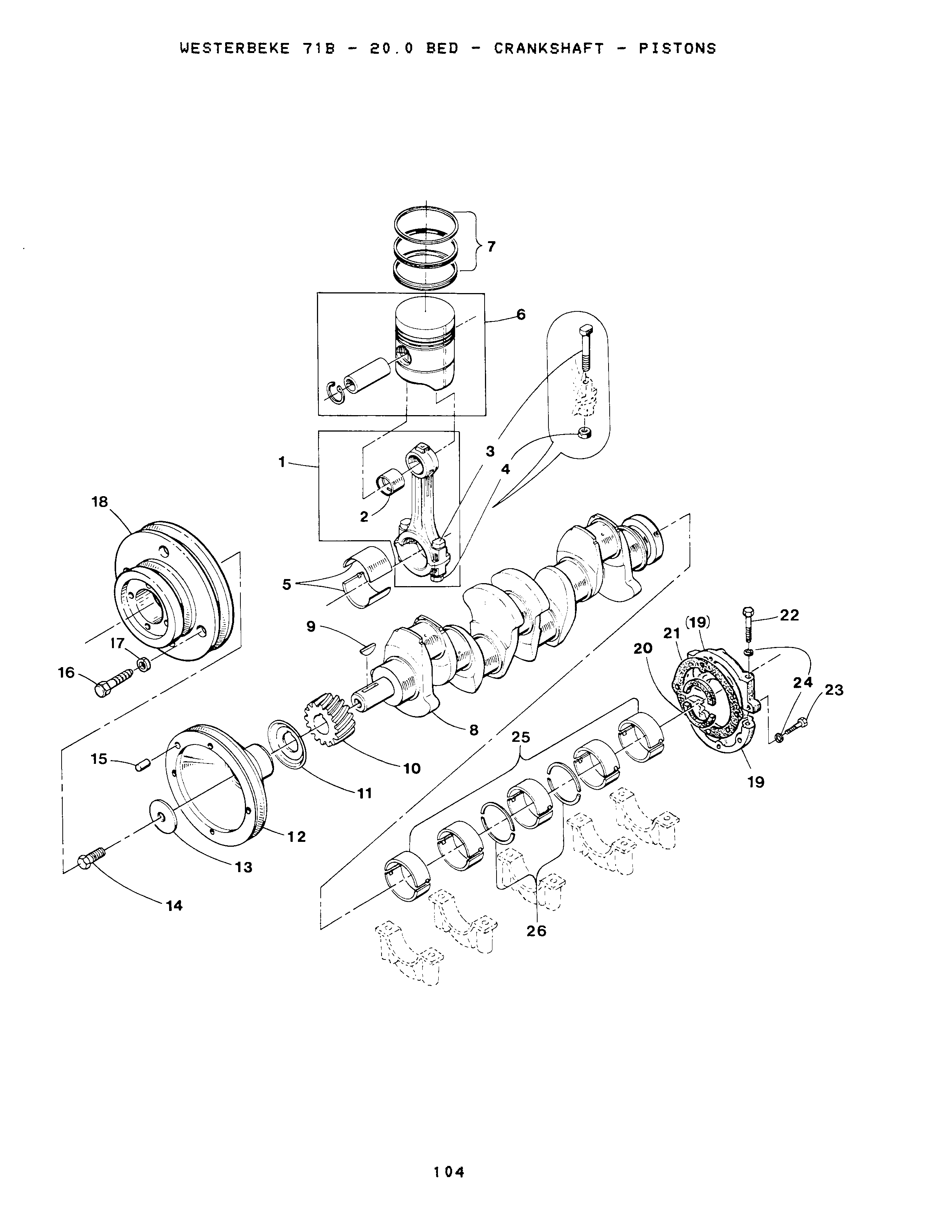

CRANKSHAFT - PISTONS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

ROD

Part #: 024524

This part is no longer available.

Price not found

QTY:

Sold By: EA

2

On Diagram

BUSHING

Part #: 024400

$23.60

QTY:

Sold By: EA

3

On Diagram

BOLT

Part #: 024401

$10.30

QTY:

Sold By: EA

4

On Diagram

NUT

Part #: 024402

This part is no longer available.

$12.00

QTY:

Sold By: EA

5-1

On Diagram

BEARING SET

Part #: 024484

This part is no longer available.

$199.80

QTY:

Sold By: ST

5-2

On Diagram

BEARING SET

Part #: 024485

$217.40

QTY:

Sold By: ST

5-3

On Diagram

BEARING SET

Part #: 024486

$114.00

QTY:

Sold By: ST

5-4

On Diagram

BEARING SET

Part #: 024487

This part is no longer available.

$126.50

QTY:

Sold By: ST

6

On Diagram

PISTON STD

Part #: 024355

$195.90

QTY:

Sold By: EA

7

On Diagram

RING SET

Part #: 024356

This part is replaced with part number 031048

Price not found

QTY:

Sold By: ST

8

On Diagram

CRANKSHAFT

Part #: 024403

This part is no longer available.

$1,315.00

QTY:

Sold By: EA

9

On Diagram

KEY

Part #: 024407

$8.50

QTY:

Sold By: EA

10

On Diagram

GEAR

Part #: 024405

This part is no longer available.

$112.00

QTY:

Sold By: EA

11

On Diagram

SLINGER

Part #: 024560

$7.90

QTY:

Sold By: EA

12

On Diagram

PULLEY

Part #: 036489

$299.10

QTY:

Sold By: EA

13

On Diagram

BOLT

Part #: 012613

$156.80

QTY:

Sold By: EA

14

On Diagram

WASHER

Part #: 024409

$11.30

QTY:

Sold By: EA

15

On Diagram

DOWEL

Part #: 013919

$1.10

QTY:

Sold By: EA

16

On Diagram

CAPSCREW 5/16NFx1

Part #: 031580

$0.40

QTY:

Sold By: EA

17

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758

$0.20

QTY:

Sold By: EA

18

On Diagram

PULLEY

Part #: 038694

This part is no longer available.

$339.20

QTY:

Sold By: EA

19

On Diagram

FLANGE

Part #: 024404

This part is no longer available.

$217.80

QTY:

Sold By: EA

20

On Diagram

SEAL

Part #: 011993

$133.40

QTY:

Sold By: EA

21

On Diagram

GASKET

Part #: 012661

$61.30

QTY:

Sold By: EA

22

On Diagram

CAPSCREW 5/16NFx2-1/2

Part #: 031586

$2.20

QTY:

Sold By: EA

23

On Diagram

CAPSCREW 5/16NFx1-1/4

Part #: 031581

$0.90

QTY:

Sold By: EA

24

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758

$0.20

QTY:

Sold By: EA

25-1

On Diagram

BEARING SET

Part #: 024488

$312.30

QTY:

Sold By: ST

25-2

On Diagram

BEARING SET

Part #: 024489

$343.40

QTY:

Sold By: ST

25-3

On Diagram

BEARING SET

Part #: 024490

This part is no longer available.

$286.50

QTY:

Sold By: ST

25-4

On Diagram

BEARING SET

Part #: 024491

$316.00

QTY:

Sold By: ST

26-1

On Diagram

THRUSTWASHER SET STD

Part #: 024492

This part is no longer available.

$88.40

QTY:

Sold By: ST

26-2

On Diagram

THRUSTWASHER SET U/S

Part #: 024493

$70.00

QTY:

Sold By: ST
