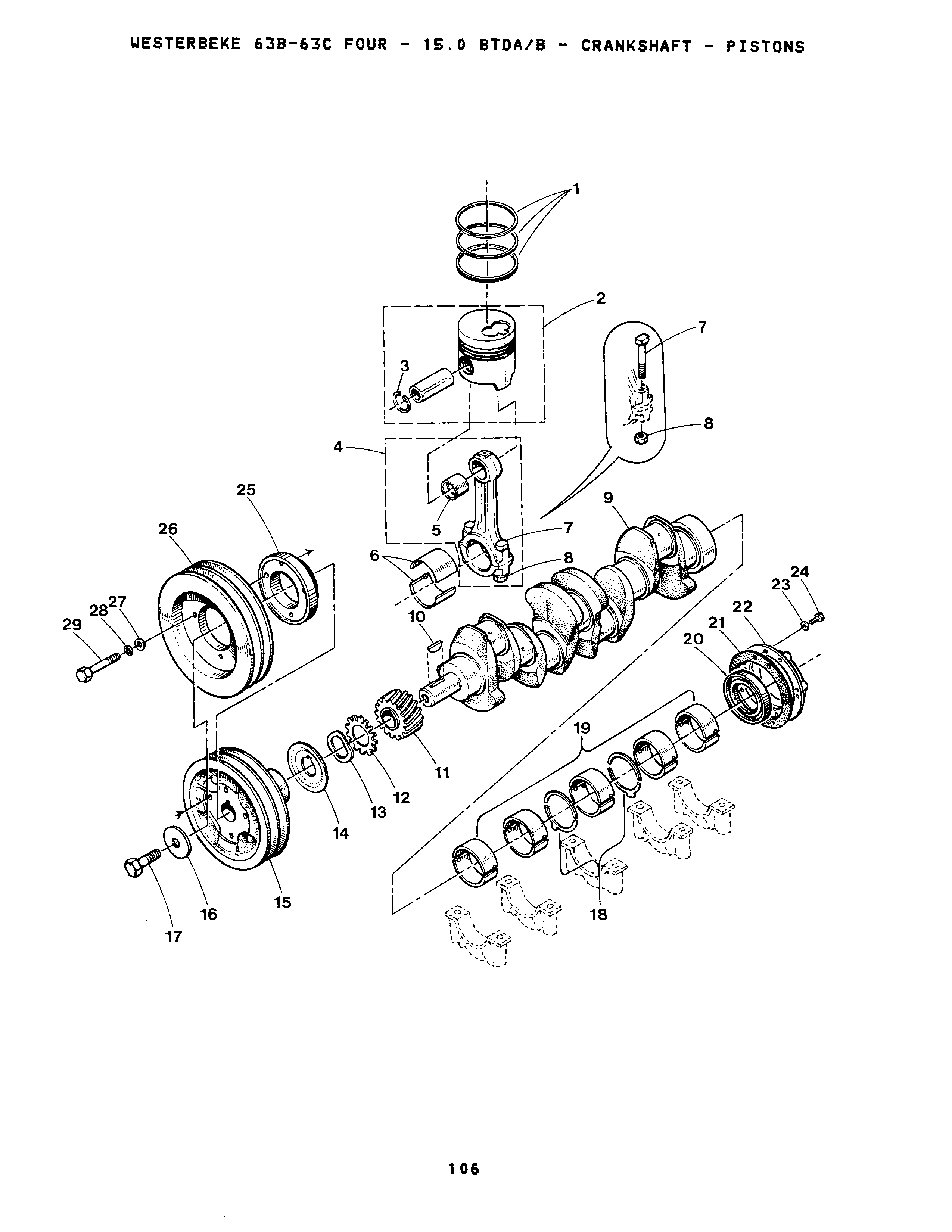

CRANKSHAFT - PISTONS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

RING SET STD 1 CYL

Part #: 031048

This part is no longer available.

$161.40
QTY:

Sold By: ST

1-2

On Diagram

RING SET STD 63C

Part #: 043188

This part is no longer available.

$357.10
QTY:

Sold By: ST

1-3

On Diagram

RING SET 0.50 63C

Part #: 043189

This part is no longer available.

$357.10
QTY:

Sold By: ST

1-4

On Diagram

RING SET 1.00 63C

Part #: 043190
$289.20
QTY:

Sold By: ST

2-1

On Diagram

PISTON STD

Part #: 031059

This part is no longer available.

$252.40
QTY:

Sold By: EA

2-2

On Diagram

PISTON STD 63C

Part #: 043185
$117.50
QTY:

Sold By: EA

2-3

On Diagram

PISTON 0.50 63C

Part #: 043186
$139.60
QTY:

Sold By: EA

2-4

On Diagram

PISTON 1.00 63C

Part #: 043187

This part is no longer available.

$126.00
QTY:

Sold By: EA

3

On Diagram

CIRCLIP

Part #: 030996
$6.20
QTY:

Sold By: EA

4

On Diagram

ROD

Part #: 030997
$328.00
QTY:

Sold By: EA

5

On Diagram

BUSHING

Part #: 032372

This part is no longer available.

$22.70
QTY:

Sold By: EA

6-1

On Diagram

BEARING SET

Part #: 031038
$241.30
QTY:

Sold By: ST

6-2

On Diagram

BEARING SET

Part #: 031039

This part is no longer available.

$185.30
QTY:

Sold By: ST

6-3

On Diagram

BEARING SET

Part #: 031040

This part is no longer available.

$204.70
QTY:

Sold By: ST

6-4

On Diagram

BEARING

Part #: 031041

This part is no longer available.

Price not found
QTY:

Sold By: ST

6-5

On Diagram

BEARING SET

Part #: 043191
$70.30
QTY:

Sold By: ST

6-6

On Diagram

BEARING SET

Part #: 043192
$88.60
QTY:

Sold By: ST

6-7

On Diagram

BEARING SET

Part #: 043193
$88.60
QTY:

Sold By: ST

6-8

On Diagram

BEARING SET

Part #: 043194
$88.60
QTY:

Sold By: ST

6-9

On Diagram

BEARING SET

Part #: 043195
$88.60
QTY:

Sold By: ST

7

On Diagram

BOLT

Part #: 030998
$7.80
QTY:

Sold By: EA

8

On Diagram

NUT

Part #: 030999
$12.00
QTY:

Sold By: EA

9-1

On Diagram

CRANKSHAFT

Part #: 033548

This part is no longer available.

Price not found
QTY:

Sold By: EA

9-2

On Diagram

CRANKSHAFT

Part #: 031000

This part is no longer available.

Price not found
QTY:

Sold By: EA

10-1

On Diagram

KEY

Part #: 032903

This part is no longer available.

$13.90
QTY:

Sold By: EA

10-2

On Diagram

KEY

Part #: 024407
$8.50
QTY:

Sold By: EA

11-1

On Diagram

GEAR

Part #: 033549

This part is no longer available.

Price not found
QTY:

Sold By: EA

11-2

On Diagram

GEAR

Part #: 043206

This part is no longer available.

Price not found
QTY:

Sold By: EA

12

On Diagram

GEAR

Part #: 032749

This part is no longer available.

$42.00
QTY:

Sold By: EA

13

On Diagram

SPRING

Part #: 031002

This part is no longer available.

$15.60
QTY:

Sold By: EA

14-1

On Diagram

SLINGER

Part #: 031004
$14.30
QTY:

Sold By: EA

14-2

On Diagram

SLINGER

Part #: 043165
$1.50
QTY:

Sold By: EA

15-1

On Diagram

PULLEY

Part #: 031102

This part is no longer available.

Price not found
QTY:

Sold By: EA

15-2

On Diagram

PULLEY

Part #: 040929
$51.50
QTY:

Sold By: EA

15-3

On Diagram

PULLEY

Part #: 040928
$172.20
QTY:

Sold By: EA

16-1

On Diagram

WASHER

Part #: 032663
$11.30
QTY:

Sold By: EA

16-2

On Diagram

WASHER

Part #: 043167
$4.50
QTY:

Sold By: EA

17-1

On Diagram

WASHER

Part #: 032663
$11.30
QTY:

Sold By: EA

17-2

On Diagram

BOLT

Part #: 043166
$7.60
QTY:

Sold By: EA

18-1

On Diagram

THRUSTWASHER SET STD

Part #: 031046

This part is no longer available.

$111.40
QTY:

Sold By: ST

18-2

On Diagram

THRUSTWASHER SET 0.356

Part #: 031047
$127.20
QTY:

Sold By: ST

18-3

On Diagram

THRUSTWASHER SET STD 63C

Part #: 043201
$28.70
QTY:

Sold By: ST

18-4

On Diagram

THRUSTWASHER SET 0.25 63C

Part #: 043202
$42.60
QTY:

Sold By: ST

18-5

On Diagram

THRUSTWASHER SET 0.50 63C

Part #: 043203
$42.60
QTY:

Sold By: ST

18-6

On Diagram

THRUSTWASHER SET 0.75 63C

Part #: 043204
$42.60
QTY:

Sold By: ST

18-7

On Diagram

THRUSTWASHER SET 1.00 63C

Part #: 043205
$42.60
QTY:

Sold By: ST

19-1

On Diagram

BEARING SET

Part #: 031042

This part is no longer available.

$378.00
QTY:

Sold By: ST

19-2

On Diagram

BEARING SET

Part #: 031043

This part is no longer available.

$313.10
QTY:

Sold By: ST

19-3

On Diagram

BEARING SET

Part #: 031044

This part is no longer available.

$415.60
QTY:

Sold By: ST

19-4

On Diagram

BEARING

Part #: 031045

This part is no longer available.

Price not found
QTY:

Sold By: ST

19-5

On Diagram

BEARING

Part #: 043196

This part is replaced with part number 031042

Price not found
QTY:

Sold By: ST

19-6

On Diagram

BEARING SET

Part #: 043197

This part is no longer available.

$92.90
QTY:

Sold By: ST

19-7

On Diagram

BEARING SET

Part #: 043198
$140.70
QTY:

Sold By: ST

19-8

On Diagram

BEARING SET

Part #: 043199
$154.90
QTY:

Sold By: ST

19-9

On Diagram

BEARING SET

Part #: 043200
$154.90
QTY:

Sold By: ST

20-1

On Diagram

SEAL

Part #: 030976

This part is replaced with part number 040304

Price not found
QTY:

Sold By: EA

21-1

On Diagram

GASKET

Part #: 030975

This part is no longer available.

$26.70
QTY:

Sold By: EA

21-2

On Diagram

GASKET

Part #: 043181
$5.70
QTY:

Sold By: EA

22-1

On Diagram

FLANGE

Part #: 030974

This part is no longer available.

$158.70
QTY:

Sold By: EA

22-2

On Diagram

FLANGE

Part #: 040678

This part is no longer available.

$93.00
QTY:

Sold By: EA

23

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

25

On Diagram

SPACER

Part #: 031104
$158.50
QTY:

Sold By: EA

26-1

On Diagram

PULLEY KIT 5x3xA W52

Part #: 031328
$367.10
QTY:

Sold By: KT

26-2

On Diagram

PULLEY KIT 6x2xA W52

Part #: 031329

This part is no longer available.

$448.70
QTY:

Sold By: KT

26-3

On Diagram

PULLEY KIT 7x2xA W52

Part #: 031330
$483.30
QTY:

Sold By: KT

26-4

On Diagram

PULLEY 7x1xA 63C

Part #: 040615
$351.20
QTY:

Sold By: EA

26-5

On Diagram

PULLEY 7x2xA 63C

Part #: 041309
$532.90
QTY:

Sold By: EA

27

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

28

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

29-1

On Diagram

CAPSCREW 5/16NFx3-1/2

Part #: 031590
$1.20
QTY:

Sold By: EA

29-2

On Diagram

CAPSCREW 5/16NFx2

Part #: 031584
$0.80
QTY:

Sold By: EA

29-3

On Diagram

CAPSCREW M 8x35 DIN 933

Part #: 021558

This capscrew fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after.

$0.70
QTY:

Sold By: EA
