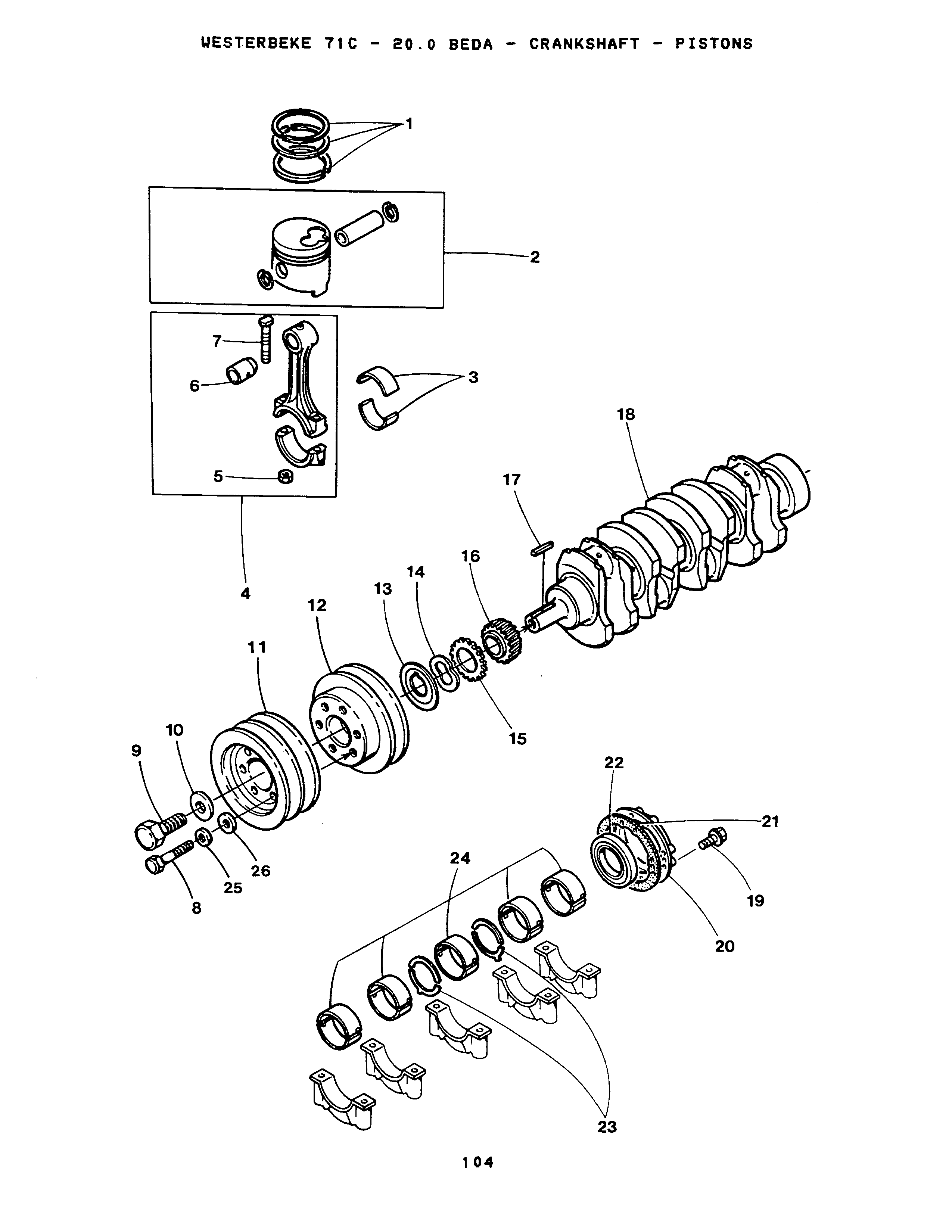

CRANKSHAFT - PISTONS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

RING SET STD ENGINE SET 71C

Part #: 041385

This part is no longer available.

$666.10
QTY:

Sold By: ST

2

On Diagram

PISTON STD 71C

Part #: 041384
$255.20
QTY:

Sold By: EA

3-1

On Diagram

BEARING SET

Part #: 024484

This part is no longer available.

$199.80
QTY:

Sold By: ST

3-2

On Diagram

BEARING SET

Part #: 024485
$217.40
QTY:

Sold By: ST

3-3

On Diagram

BEARING SET

Part #: 024486
$114.00
QTY:

Sold By: ST

3-4

On Diagram

BEARING SET

Part #: 024487

This part is no longer available.

$126.50
QTY:

Sold By: ST

4

On Diagram

ROD

Part #: 041357
$353.20
QTY:

Sold By: EA

5

On Diagram

NUT

Part #: 032659

This part is no longer available.

$12.00
QTY:

Sold By: EA

6

On Diagram

BUSHING

Part #: 041358
$25.00
QTY:

Sold By: EA

7

On Diagram

BOLT

Part #: 032658
$10.30
QTY:

Sold By: EA

8

On Diagram

CAPSCREW M 8x30 DIN 933

Part #: 013619
$0.60
QTY:

Sold By: EA

9

On Diagram

BOLT

Part #: 032662
$47.80
QTY:

Sold By: EA

10

On Diagram

WASHER

Part #: 032663
$11.30
QTY:

Sold By: EA

11

On Diagram

PULLEY

Part #: 038786
$387.30
QTY:

Sold By: EA

12

On Diagram

PULLEY

Part #: 040190
$490.50
QTY:

Sold By: EA

13

On Diagram

SLINGER

Part #: 040299

This part is no longer available.

$17.90
QTY:

Sold By: EA

14

On Diagram

SPRING

Part #: 040301

This part is no longer available.

$9.70
QTY:

Sold By: EA

15

On Diagram

GEAR

Part #: 040302

This part is no longer available.

$40.10
QTY:

Sold By: EA

16

On Diagram

GEAR

Part #: 041360

This part is no longer available.

$185.60
QTY:

Sold By: EA

17

On Diagram

KEY

Part #: 032903

This part is no longer available.

$13.90
QTY:

Sold By: EA

18

On Diagram

CRANKSHAFT 71C

Part #: 041359

This part is no longer available.

$2,615.20
QTY:

Sold By: EA

19

On Diagram

CAPSCREW M 8x30 JIS-FLANGE

Part #: 033643
$4.40
QTY:

Sold By: EA

20

On Diagram

FLANGE

Part #: 040298
$191.60
QTY:

Sold By: EA

21

On Diagram

GASKET

Part #: 040300
$49.80
QTY:

Sold By: EA

22

On Diagram

SEAL

Part #: 040304
$115.00
QTY:

Sold By: EA

23-1

On Diagram

THRUSTWASHER SET STD

Part #: 024492

This part is no longer available.

$88.40
QTY:

Sold By: ST

23-2

On Diagram

THRUSTWASHER SET U/S

Part #: 024493
$70.00
QTY:

Sold By: ST

24-1

On Diagram

BEARING SET

Part #: 041380
$410.70
QTY:

Sold By: ST

24-2

On Diagram

BEARING SET

Part #: 041381
$312.30
QTY:

Sold By: ST

24-3

On Diagram

BEARING SET

Part #: 041382

This part is no longer available.

$312.30
QTY:

Sold By: ST

24-4

On Diagram

BEARING SET

Part #: 041383

This part is no longer available.

$312.30
QTY:

Sold By: ST

25

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

26

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA
