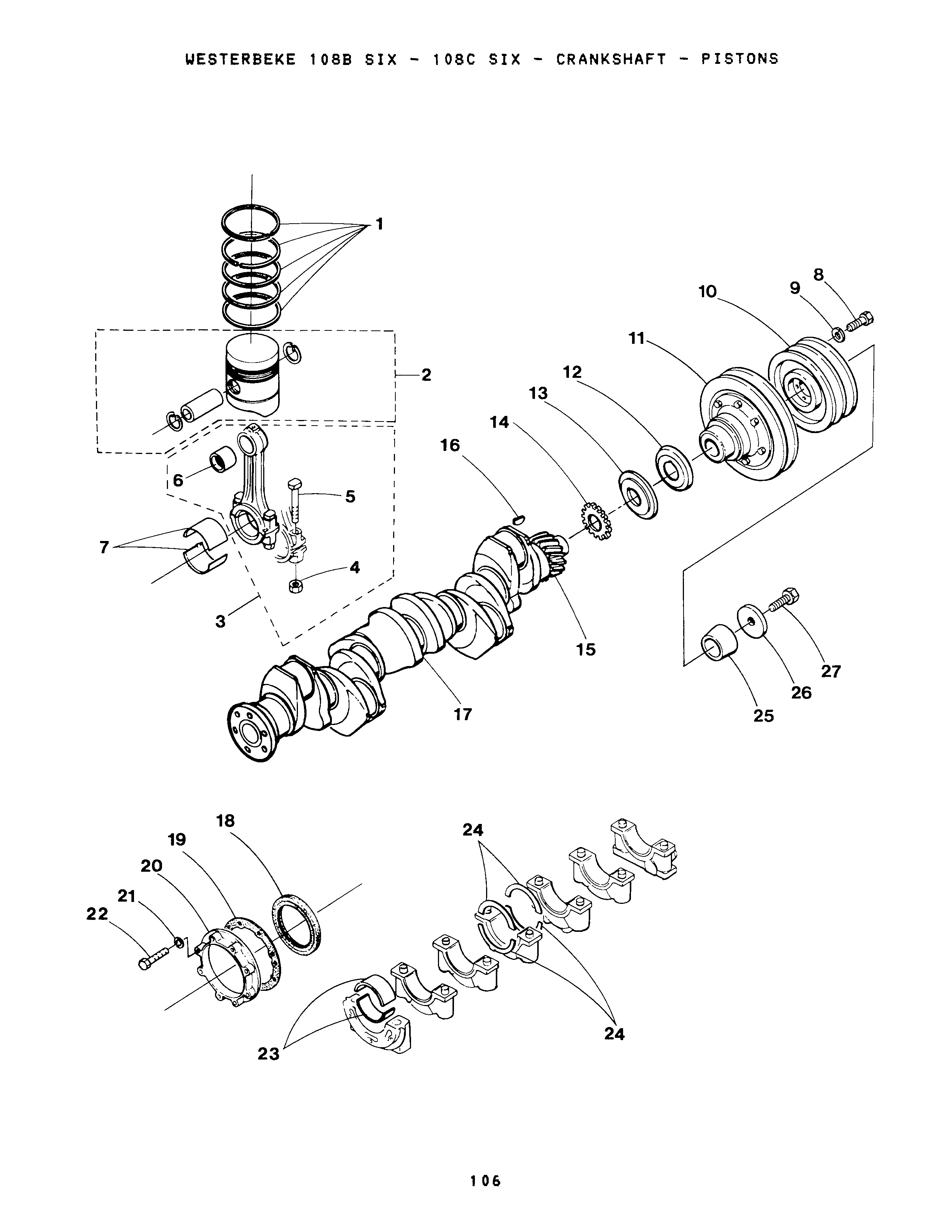

CRANKSHAFT - PISTONS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

RING SET STD ENGINE SET

Part #: 032800

This part is no longer available.

$646.00
QTY:

Sold By: ST

1-2

On Diagram

RING SET STD ENGINE SET 108C

Part #: 040687

This part is no longer available.

$237.00
QTY:

Sold By: ST

1-3

On Diagram

RING SET 0.50 ENGINE SET 108C

Part #: 040688
$220.90
QTY:

Sold By: ST

1-4

On Diagram

RING SET 1.00 ENGINE SET 108C

Part #: 040689
$205.50
QTY:

Sold By: ST

2-1

On Diagram

PISTON STD

Part #: 032799
$358.80
QTY:

Sold By: EA

2-2

On Diagram

PISTON STD 108C

Part #: 040684
$191.30
QTY:

Sold By: EA

2-3

On Diagram

PISTON 0.50 108C

Part #: 040685
$83.60
QTY:

Sold By: EA

2-4

On Diagram

PISTON 1.00 108C

Part #: 040686
$83.60
QTY:

Sold By: EA

3-1

On Diagram

ROD

Part #: 032763
$361.00
QTY:

Sold By: EA

3-2

On Diagram

ROD

Part #: 040676
$226.00
QTY:

Sold By: EA

4

On Diagram

NUT

Part #: 024402

This part is no longer available.

$12.00
QTY:

Sold By: EA

5

On Diagram

BOLT

Part #: 024401
$10.30
QTY:

Sold By: EA

6-1

On Diagram

BUSHING

Part #: 032809
$22.00
QTY:

Sold By: EA

7-1

On Diagram

BEARING SET

Part #: 032791

This part is no longer available.

$155.00
QTY:

Sold By: ST

7-2

On Diagram

BEARING SET

Part #: 032792

This part is no longer available.

$172.90
QTY:

Sold By: ST

7-3

On Diagram

BEARING SET

Part #: 032793

This part is no longer available.

$382.20
QTY:

Sold By: ST

7-4

On Diagram

BEARING SET

Part #: 032794

This part is no longer available.

$207.30
QTY:

Sold By: ST

7-5

On Diagram

BEARING SET

Part #: 040690

This part is no longer available.

$126.30
QTY:

Sold By: ST

7-6

On Diagram

BEARING SET

Part #: 040691
$187.90
QTY:

Sold By: ST

7-7

On Diagram

BEARING SET

Part #: 040692
$187.90
QTY:

Sold By: ST

7-8

On Diagram

BEARING SET

Part #: 040693
$187.90
QTY:

Sold By: ST

8

On Diagram

CAPSCREW M 8x30 DIN 912

Part #: 031455
$0.80
QTY:

Sold By: EA

9-1

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

9-2

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

10

On Diagram

PULLEY

Part #: 038906
$407.70
QTY:

Sold By: EA

11

On Diagram

PULLEY

Part #: 038900

This part is no longer available.

Price not found
QTY:

Sold By: EA

12-1

On Diagram

SLINGER

Part #: 032768
$24.30
QTY:

Sold By: EA

12-2

On Diagram

SLINGER 108C

Part #: 040680

This part is no longer available.

$18.50
QTY:

Sold By: EA

13

On Diagram

SPRING

Part #: 032766

This part is no longer available.

$26.10
QTY:

Sold By: EA

14

On Diagram

GEAR

Part #: 032767

This part is no longer available.

$45.10
QTY:

Sold By: EA

15-1

On Diagram

GEAR

Part #: 032765

This part is no longer available.

Price not found
QTY:

Sold By: EA

15-2

On Diagram

GEAR

Part #: 040679
$113.20
QTY:

Sold By: EA

16-1

On Diagram

KEY

Part #: 032888

This part is no longer available.

$6.40
QTY:

Sold By: EA

16-2

On Diagram

KEY

Part #: 040681

This part is no longer available.

$5.90
QTY:

Sold By: EA

17-1

On Diagram

CRANKSHAFT

Part #: 032764

This part is no longer available.

$5,790.50
QTY:

Sold By: EA

17-2

On Diagram

CRANKSHAFT 108C

Part #: 040677
$1,067.40
QTY:

Sold By: EA

18-1

On Diagram

SEAL

Part #: 030976

This part is replaced with part number 040304

Price not found
QTY:

Sold By: EA

18-2

On Diagram

SEAL

Part #: 040683
$54.70
QTY:

Sold By: EA

19

On Diagram

GASKET

Part #: 030975

This part is no longer available.

$26.70
QTY:

Sold By: EA

20-1

On Diagram

FLANGE

Part #: 030974

This part is no longer available.

$158.70
QTY:

Sold By: EA

20-2

On Diagram

FLANGE

Part #: 040678

This part is no longer available.

$93.00
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

22

On Diagram

BOLT

Part #: 032824
$4.40
QTY:

Sold By: EA

23-1

On Diagram

BEARING SET

Part #: 032795

This part is no longer available.

$515.10
QTY:

Sold By: ST

23-2

On Diagram

BEARING

Part #: 032796

This part is no longer available.

Price not found
QTY:

Sold By: ST

23-3

On Diagram

BEARING SET

Part #: 032797

This part is no longer available.

$563.50
QTY:

Sold By: ST

23-4

On Diagram

BEARING SET

Part #: 032798

This part is no longer available.

$606.90
QTY:

Sold By: ST

23-5

On Diagram

BEARING SET

Part #: 040694

This part is no longer available.

$126.30
QTY:

Sold By: ST

23-6

On Diagram

BEARING SET

Part #: 040695
$246.80
QTY:

Sold By: ST

23-7

On Diagram

BEARING SET

Part #: 040696
$246.80
QTY:

Sold By: ST

23-8

On Diagram

BEARING SET

Part #: 040697
$246.80
QTY:

Sold By: ST

23-9

On Diagram

BEARING SET

Part #: 040698
$246.80
QTY:

Sold By: ST

24-1

On Diagram

THRUSTWASHER SET STD

Part #: 024492

This part is no longer available.

$88.40
QTY:

Sold By: ST

24-2

On Diagram

THRUSTWASHER SET U/S

Part #: 024493
$70.00
QTY:

Sold By: ST

24-3

On Diagram

THRUSTWASHER SET STD 108C

Part #: 040699
$72.50
QTY:

Sold By: ST

24-4

On Diagram

THRUSTWASHER SET 0.25 108C

Part #: 040700
$72.50
QTY:

Sold By: ST

24-5

On Diagram

THRUSTWASHER SET 0.50 108C

Part #: 040701
$72.50
QTY:

Sold By: ST

24-6

On Diagram

THRUSTWASHER SET 0.75 108C

Part #: 040702
$72.50
QTY:

Sold By: ST

24-7

On Diagram

THRUSTWASHER SET 1.00 108C

Part #: 040703
$72.50
QTY:

Sold By: ST

25

On Diagram

RING

Part #: 032770

This part is no longer available.

$122.60
QTY:

Sold By: EA

26

On Diagram

WASHER

Part #: 032825

This part is no longer available.

$38.20
QTY:

Sold By: EA

27

On Diagram

BOLT

Part #: 032771

This part is no longer available.

Price not found
QTY:

Sold By: EA
