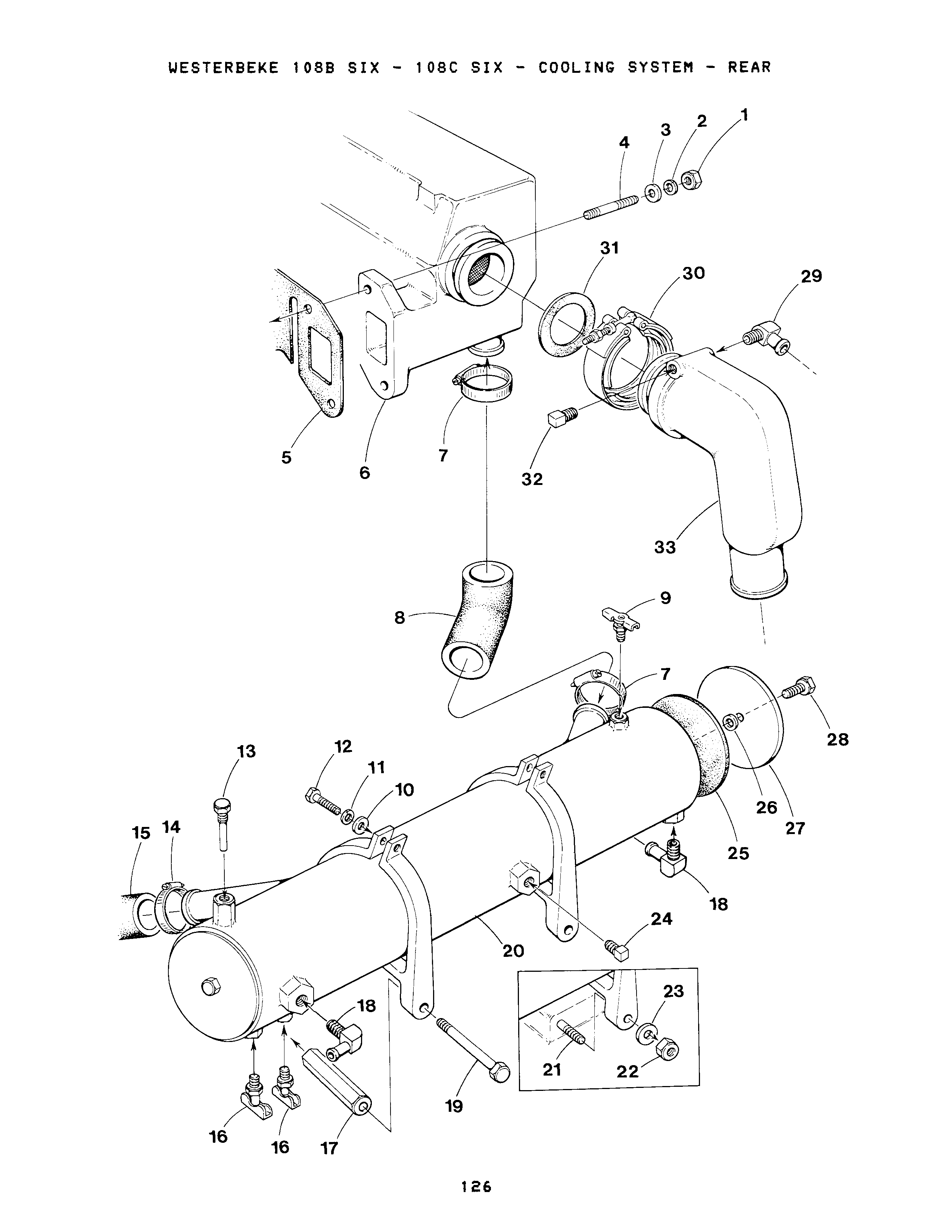

COOLING SYSTEM - REAR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

3

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

4

On Diagram

STUD

Part #: 038510
$8.80
QTY:

Sold By: EA

5-1

On Diagram

GASKET

Part #: 038207
$51.50
QTY:

Sold By: EA

5-2

On Diagram

GASKET

Part #: 038426
$39.10
QTY:

Sold By: EA

6

On Diagram

MANIFOLD

Part #: 037302

This part is no longer available.

$2,431.20
QTY:

Sold By: EA

7

On Diagram

CLAMP

Part #: 038193
$3.50
QTY:

Sold By: EA

8

On Diagram

HOSE

Part #: 038232
$28.30
QTY:

Sold By: EA

9

On Diagram

PETCOCK

Part #: 011471
$12.90
QTY:

Sold By: EA

10

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

12

On Diagram

CAPSCREW 1/4NCx1

Part #: 031505
$0.50
QTY:

Sold By: EA

13

On Diagram

ZINC

Part #: 011885
$14.60
QTY:

Sold By: EA

14

On Diagram

CLAMP

Part #: 038193
$3.50
QTY:

Sold By: EA

15

On Diagram

HOSE

Part #: 038866

This part is no longer available.

Price not found
QTY:

Sold By: EA

16

On Diagram

PETCOCK

Part #: 011471
$12.90
QTY:

Sold By: EA

17

On Diagram

SPACER

Part #: 039076
$34.90
QTY:

Sold By: EA

18

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

19

On Diagram

CAPSCREW M 8x30 DIN 933

Part #: 013619
$0.60
QTY:

Sold By: EA

20

On Diagram

EXCHANGER

Part #: 039230
$1,855.20
QTY:

Sold By: EA

21

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

22

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

23

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

24

On Diagram

PLUG 1/2 NPT

Part #: 035747
$12.90
QTY:

Sold By: EA

25

On Diagram

GASKET

Part #: 033300
$10.50
QTY:

Sold By: EA

26

On Diagram

O-RING

Part #: 019321
$0.60
QTY:

Sold By: EA

27

On Diagram

CAP

Part #: 033299

This part is replaced with part number 200244

$42.90
QTY:

Sold By: EA

28

On Diagram

CAPSCREW 3/8NCx3/4 BRASS OR SS

Part #: 022852
$4.30
QTY:

Sold By: EA

29

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

30

On Diagram

CLAMP

Part #: 038153
$67.80
QTY:

Sold By: EA

31

On Diagram

GASKET

Part #: 038221
$28.20
QTY:

Sold By: EA

32

On Diagram

PLUG 3/4 NPT SQ HEAD BRASS

Part #: 036849
$21.90
QTY:

Sold By: EA

33-1

On Diagram

KIT

Part #: 039334

BEFORE you order this 3.0" exhaust elbow kit, please see Parts Bulletin 2018-1. Your engine or generator may require a 2.0" exhaust elbow kit part number 038760.

$310.60
QTY:

Sold By: KT

33-2

On Diagram

KIT

Part #: 038760

BEFORE you order this 2.0" exhaust elbow kit, please see Parts Bulletin 2018-1. Your engine or generator may require a 3.0" exhaust elbow kit part number 039334.

$281.50
QTY:

Sold By: KT
