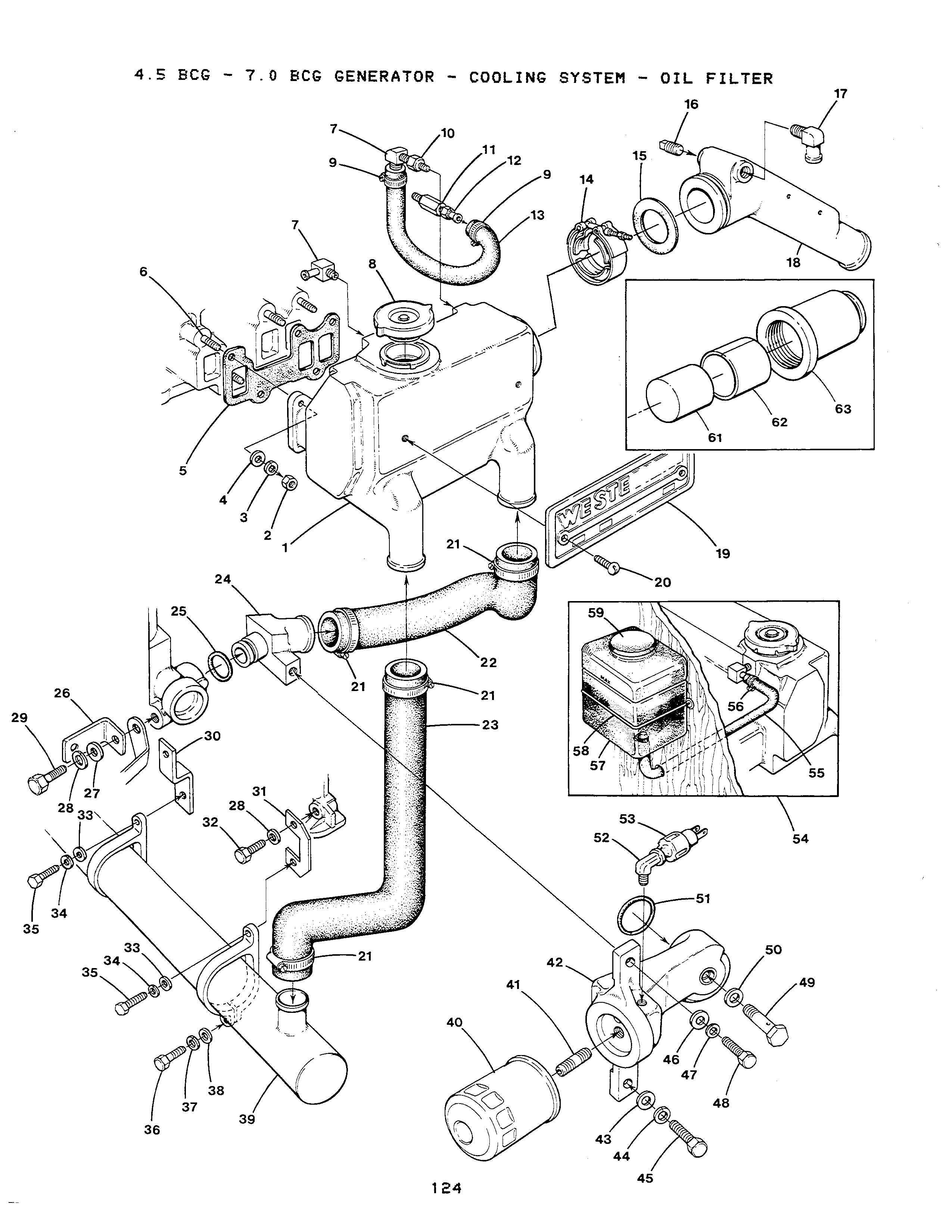

COOLING SYSTEM - OIL FILTER

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

MANIFOLD

Part #: 037320

This part is no longer available.

$361.80
QTY:

Sold By: EA

1-2

On Diagram

MANIFOLD

Part #: 042174

This part is no longer available.

$258.40
QTY:

Sold By: EA

1-3

On Diagram

MANIFOLD

Part #: 037320

This part is no longer available.

$361.80
QTY:

Sold By: EA

2

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

4

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

5

On Diagram

GASKET

Part #: 037983
Price not found
QTY:

Sold By: EA

6

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

7

On Diagram

ELBOW 1/8NPT x 5/16 HOSE

Part #: 024907
$24.80
QTY:

Sold By: EA

8

On Diagram

CAP

Part #: 024306
$10.80
QTY:

Sold By: EA

9

On Diagram

CLAMP

Part #: 024906
$2.00
QTY:

Sold By: EA

10

On Diagram
$5.90
QTY:

Sold By: EA

11

On Diagram
$32.30
QTY:

Sold By: EA

12

On Diagram

CONNECTOR

Part #: 021448
$6.60
QTY:

Sold By: EA

13

On Diagram

HOSE

Part #: 035435

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.50
QTY:

Sold By: IN

14

On Diagram

CLAMP

Part #: 036541
$51.30
QTY:

Sold By: EA

15

On Diagram

GASKET

Part #: 036425
$5.10
QTY:

Sold By: EA

16

On Diagram

PLUG 1/2 NPT

Part #: 035747
$12.90
QTY:

Sold By: EA

17

On Diagram

ELBOW 1/2NPT x 1 HOSE

Part #: 036616
$29.60
QTY:

Sold By: EA

18

On Diagram

KIT

Part #: 037402
$173.30
QTY:

Sold By: KT

19

On Diagram

NAMEPLATE

Part #: 036809
Price not found
QTY:

Sold By: EA

20

On Diagram

SCREW 8-32 X 1/4 SS OVAL

Part #: 031935
$0.50
QTY:

Sold By: EA

21

On Diagram

CLAMP

Part #: 021878
$3.40
QTY:

Sold By: EA

22

On Diagram

HOSE

Part #: 037607
$23.90
QTY:

Sold By: EA

23

On Diagram

HOSE

Part #: 037381

This part is replaced with part number 024974 (18 in. reqd.)

Price not found
QTY:

Sold By: EA

24

On Diagram

ELBOW

Part #: 037252
$76.80
QTY:

Sold By: EA

25

On Diagram

O-RING

Part #: 037249
$1.20
QTY:

Sold By: EA

26

On Diagram

BRACKET

Part #: 037829
$7.80
QTY:

Sold By: EA

27

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

28

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

29

On Diagram

CAPSCREW M 8x16 DIN 933

Part #: 016789
$0.70
QTY:

Sold By: EA

30

On Diagram

BRACKET

Part #: 037351

This part is no longer available.

$13.80
QTY:

Sold By: EA

31

On Diagram

BRACKET

Part #: 037352
$10.80
QTY:

Sold By: EA

32

On Diagram

CAPSCREW M 8x35 DIN 933

Part #: 021558

This capscrew fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after.

$0.70
QTY:

Sold By: EA

33

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

34

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

35

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

36

On Diagram

CAPSCREW 1/4NCx1-1/4

Part #: 031506
$0.50
QTY:

Sold By: EA

37

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

38

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

39-1

On Diagram

EXCHANGER

Part #: 037562
$421.70
QTY:

Sold By: EA

39-2

On Diagram

EXCHANGER

Part #: 037772
$693.70
QTY:

Sold By: EA

40

On Diagram

FILTER

Part #: 036918
$16.40
QTY:

Sold By: EA

41

On Diagram

NIPPLE

Part #: 034663
$29.10
QTY:

Sold By: EA

42

On Diagram

ADAPTER

Part #: 037512
$156.30
QTY:

Sold By: EA

43

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

44

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

45

On Diagram
$2.20
QTY:

Sold By: EA

46

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

47

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

48

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

49

On Diagram

BOLT

Part #: 037256
$25.40
QTY:

Sold By: EA

50

On Diagram

WASHER

Part #: 037255
$3.30
QTY:

Sold By: EA

51

On Diagram

O-RING

Part #: 032148
$2.50
QTY:

Sold By: EA

52

On Diagram

ELBOW 1/8NPT STREET 90

Part #: 011984
$21.40
QTY:

Sold By: EA

53

On Diagram

SWITCH

Part #: 037323
$31.20
QTY:

Sold By: EA

54

On Diagram

TANK KIT

Part #: 024977
$68.60
QTY:

Sold By: KT

55

On Diagram

TUBING

Part #: 024637

This part is no longer available. Use part number 056526. ATTENTION - IMPORTANT: This tubing is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.40
QTY:

Sold By: IN

56

On Diagram

CLAMP

Part #: 024906
$2.00
QTY:

Sold By: EA

57

On Diagram

TANK

Part #: 024704

This tank DOES NOT include CAP part number 024858. Please order CAP 024858 separately.

$28.10
QTY:

Sold By: EA

58

On Diagram

STRAP

Part #: 024786
$13.20
QTY:

Sold By: EA

59

On Diagram

CAP

Part #: 024858
$0.50
QTY:

Sold By: EA

60

On Diagram

GASKET

Part #: 042085

This part is no longer available.

Price not found
QTY:

Sold By: each

61

On Diagram

CATALYST

Part #: 042120

This part is replaced with part number 042662

Price not found
QTY:

Sold By: EA

62

On Diagram

INSULATION

Part #: 042117

This part is replaced with part number 042662

Price not found
QTY:

Sold By: EA

63-1

On Diagram

CATALYST ASSEMBLY 4.5 BCG

Part #: 042123
$299.40
QTY:

Sold By: EA

63-2

On Diagram

CONTAINER

Part #: 042118
Price not found
QTY:

Sold By: EA

64

On Diagram

STUD M10x30 DIN 939

Part #: 037821
$7.10
QTY:

Sold By: EA

65

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

66

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

67

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA
