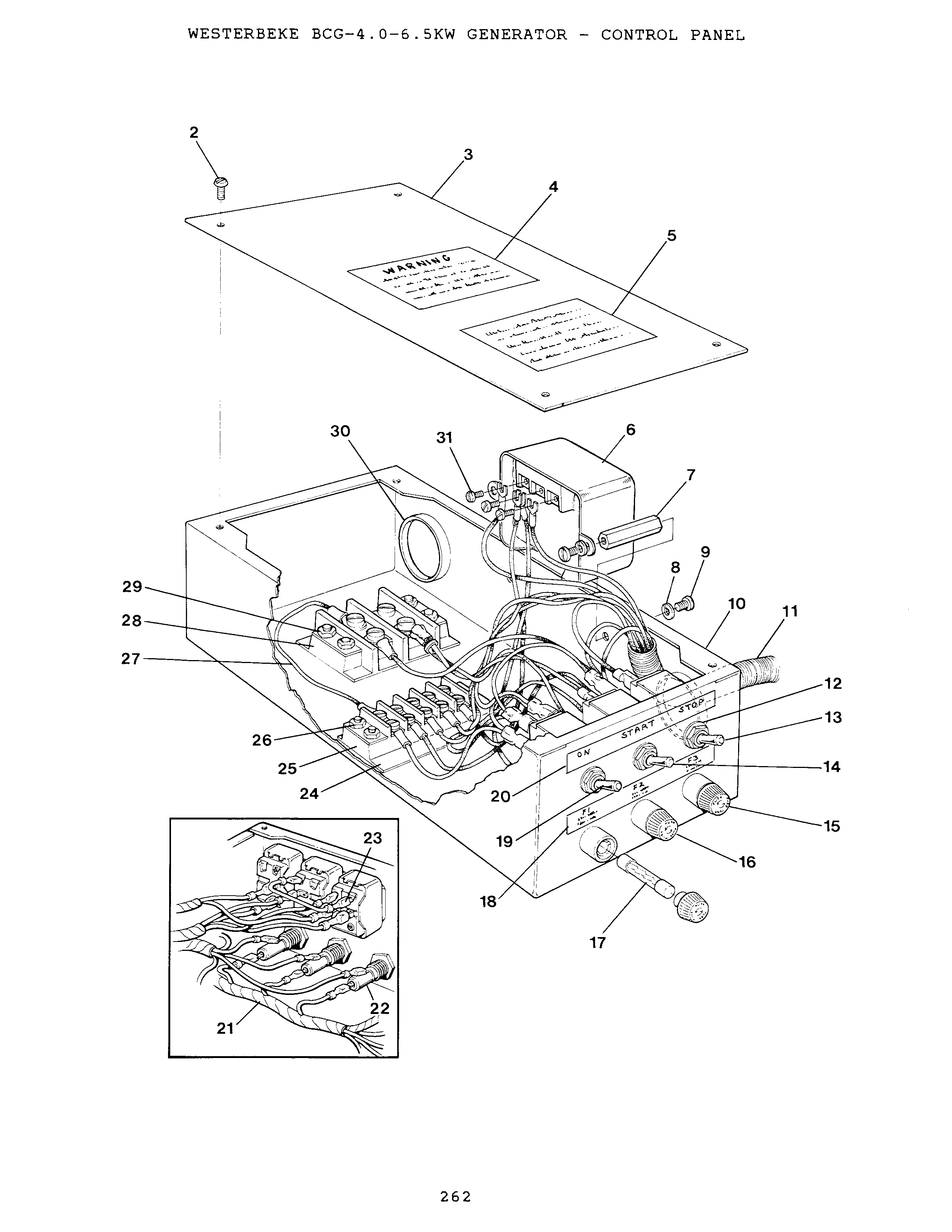

CONTROL PANEL

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

PANEL

Part #: 035201

This part is no longer available.

$834.70
QTY:

Sold By: EA

2

On Diagram

SCREW 8-32 X 3/8 TRUSS

Part #: 031891
$0.30
QTY:

Sold By: EA

3

On Diagram

COVER

Part #: 035183

This part is no longer available.

$61.20
QTY:

Sold By: EA

4

On Diagram

LABEL

Part #: 033748
$4.20
QTY:

Sold By: EA

5

On Diagram

DECAL

Part #: 033514
$3.40
QTY:

Sold By: EA

6-1

On Diagram

SHUTDOWN

Part #: 035420

This part is replaced with part number 041225

Price not found
QTY:

Sold By: EA

6-2

On Diagram

SHUTDOWN

Part #: 035421

This part is replaced with part number 041183

Price not found
QTY:

Sold By: EA

6-3

On Diagram

SHUTDOWN

Part #: 035423

This part is replaced with part number 041225

Price not found
QTY:

Sold By: each

6-4

On Diagram

SHUTDOWN

Part #: 035424

This part is replaced with part number 041183

Price not found
QTY:

Sold By: each

7

On Diagram

STANDOFF

Part #: 035429
$7.30
QTY:

Sold By: EA

8

On Diagram

LOCKWASHER 8 IT SS

Part #: 031845
$0.20
QTY:

Sold By: EA

9

On Diagram

SCREW 8-32 X 3/8 SS

Part #: 031862
$0.30
QTY:

Sold By: EA

10

On Diagram

BOX

Part #: 035182
$203.80
QTY:

Sold By: EA

11

On Diagram

HARNESS

Part #: 035696

This part is no longer available.

$169.20
QTY:

Sold By: EA

12

On Diagram

LOCKRING

Part #: 031999
$1.60
QTY:

Sold By: EA

13

On Diagram

SWITCH

Part #: 033631

This part is replaced with part number 048263

Price not found
QTY:

Sold By: EA

14

On Diagram

SWITCH

Part #: 033632

This part is no longer available. Use part number 048261.

Price not found
QTY:

Sold By: EA

15-1

On Diagram

FUSE 4 AMP

Part #: 033768
$1.70
QTY:

Sold By: EA

15-2

On Diagram

FUSE 8 AMP

Part #: 033769
$1.60
QTY:

Sold By: EA

16

On Diagram

FUSE 15 AMP

Part #: 011468
$3.90
QTY:

Sold By: EA

17

On Diagram

FUSE 8 AMP

Part #: 033769
$1.60
QTY:

Sold By: EA

18

On Diagram

LABEL

Part #: 033696
$2.80
QTY:

Sold By: EA

19

On Diagram

SWITCH

Part #: 033633

This part is replaced with part number 048304

Price not found
QTY:

Sold By: EA

20

On Diagram

LABEL

Part #: 033695
$2.40
QTY:

Sold By: EA

21

On Diagram

HARNESS

Part #: 035697
$66.90
QTY:

Sold By: EA

22

On Diagram

HOLDER

Part #: 033767
$7.30
QTY:

Sold By: EA

23

On Diagram

WIRE

Part #: 033912
Price not found
QTY:

Sold By: EA

24

On Diagram

MARKER

Part #: 019122
$2.50
QTY:

Sold By: EA

25-1

On Diagram

BLOCK

Part #: 019121
$7.30
QTY:

Sold By: EA

25-2

On Diagram

JUMPER

Part #: 015223
$1.50
QTY:

Sold By: EA

26-1

On Diagram

PLATE

Part #: 015222
$1.50
QTY:

Sold By: EA

26-2

On Diagram

SCREW 6-32 X 5/8 SS

Part #: 031855
$0.30
QTY:

Sold By: EA

26-3

On Diagram

LOCKWASHER 6 MED SS

Part #: 031839
$0.20
QTY:

Sold By: EA

26-4

On Diagram

NUT 6-32 SS

Part #: 031837
$0.30
QTY:

Sold By: EA

27

On Diagram

WIRE

Part #: 033913
Price not found
QTY:

Sold By: EA

28-1

On Diagram

MARKER

Part #: 013364
$8.00
QTY:

Sold By: EA

28-2

On Diagram

BLOCK

Part #: 012975
$14.00
QTY:

Sold By: EA

29-1

On Diagram

PLATE

Part #: 013856
$1.30
QTY:

Sold By: EA

29-2

On Diagram

SCREW 8-32 X 3/4 SS

Part #: 031865
$0.50
QTY:

Sold By: EA

29-3

On Diagram

LOCKWASHER 8 MED SS

Part #: 031844
$0.30
QTY:

Sold By: EA

29-4

On Diagram

NUT 8-32 SS

Part #: 031842
$0.20
QTY:

Sold By: EA

30

On Diagram

BUSHING

Part #: 023939
$0.80
QTY:

Sold By: EA

31

On Diagram

SCREW 6-32 X 3/8 SS

Part #: 031853
$0.20
QTY:

Sold By: EA
