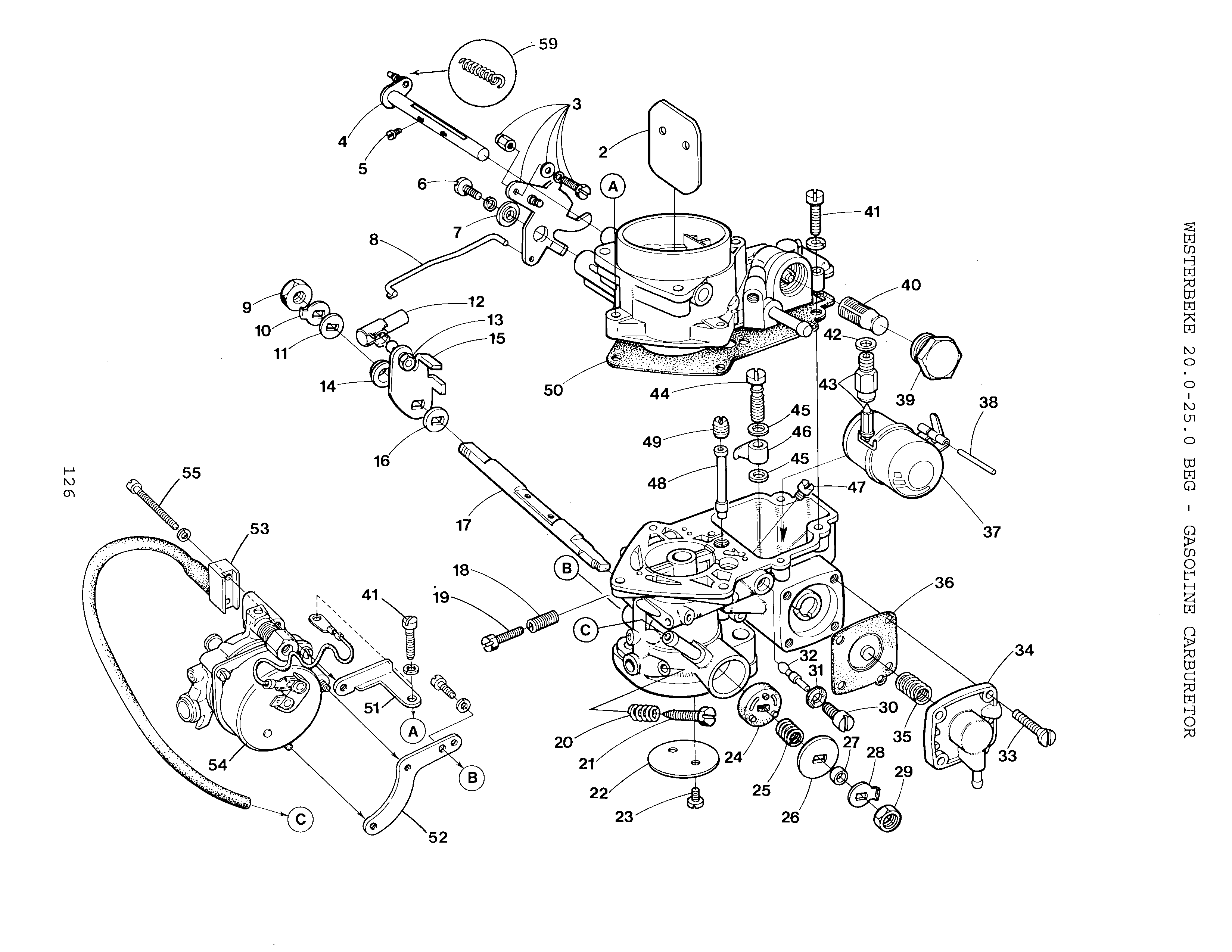

CARBURETOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

CARBURETOR

Part #: 039454

This part is no longer available.

Price not found
QTY:

Sold By: EA

1-2

On Diagram

KIT

Part #: 036450
$183.20
QTY:

Sold By: KT

2

On Diagram

PLATE

Part #: 036296
$5.60
QTY:

Sold By: EA

3

On Diagram

LEVER

Part #: 036279
$10.20
QTY:

Sold By: EA

4

On Diagram

SHAFT

Part #: 036264
$5.60
QTY:

Sold By: EA

5

On Diagram

SCREW

Part #: 036300
$0.50
QTY:

Sold By: EA

6

On Diagram

SCREW

Part #: 036304
$0.80
QTY:

Sold By: EA

7

On Diagram

BUSHING

Part #: 036267
$6.10
QTY:

Sold By: EA

8

On Diagram

ROD

Part #: 036293
$3.90
QTY:

Sold By: EA

9

On Diagram

NUT

Part #: 036269

This part is no longer available.

$0.40
QTY:

Sold By: EA

10

On Diagram

TABWASHER

Part #: 036286
$1.20
QTY:

Sold By: EA

11

On Diagram

SPACER

Part #: 036289
$0.70
QTY:

Sold By: EA

12

On Diagram

BALLJOINT

Part #: 019364
$13.30
QTY:

Sold By: EA

13-1

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

13-2

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

14

On Diagram

BUSHING

Part #: 036266
$6.10
QTY:

Sold By: EA

15

On Diagram

LEVER

Part #: 033700
$47.60
QTY:

Sold By: EA

16

On Diagram

SPACER

Part #: 036291
$0.70
QTY:

Sold By: EA

17

On Diagram

SHAFT

Part #: 036263

This part is no longer available.

$0.80
QTY:

Sold By: EA

18

On Diagram

SPRING

Part #: 036280
$10.70
QTY:

Sold By: EA

19

On Diagram

SCREW

Part #: 036301
$1.40
QTY:

Sold By: EA

20

On Diagram

SPRING

Part #: 036280
$10.70
QTY:

Sold By: EA

21

On Diagram

SCREW

Part #: 036305
$1.40
QTY:

Sold By: EA

22

On Diagram

PLATE

Part #: 036295
$4.40
QTY:

Sold By: EA

23

On Diagram

SCREW

Part #: 036299
$0.50
QTY:

Sold By: EA

24

On Diagram

VALVE

Part #: 036283

This part is no longer available.

Price not found
QTY:

Sold By: EA

25

On Diagram

SPRING

Part #: 036281
$3.30
QTY:

Sold By: EA

26

On Diagram

WASHER

Part #: 036290
$0.70
QTY:

Sold By: EA

27

On Diagram

SPACER

Part #: 036265

This part is no longer available.

$0.70
QTY:

Sold By: EA

28

On Diagram

TABWASHER

Part #: 036287
$0.40
QTY:

Sold By: EA

29

On Diagram

NUT

Part #: 036268
$0.40
QTY:

Sold By: EA

30

On Diagram

RETAINER

Part #: 036285
$3.70
QTY:

Sold By: EA

31

On Diagram

GASKET

Part #: 036277
$4.30
QTY:

Sold By: EA

32

On Diagram

JET

Part #: 036272
$6.10
QTY:

Sold By: EA

33

On Diagram

SCREW M 4x12 DIN 84A W/LW

Part #: 033981
$0.60
QTY:

Sold By: EA

34

On Diagram

COVER

Part #: 033979
$24.60
QTY:

Sold By: EA

35

On Diagram

SPRING

Part #: 033980

This part is no longer available.

$2.40
QTY:

Sold By: EA

36

On Diagram

DIAPHRAGM

Part #: 036315
$78.50
QTY:

Sold By: EA

37

On Diagram

FLOAT

Part #: 036271

This part is no longer available.

Price not found
QTY:

Sold By: EA

38

On Diagram

PIN

Part #: 036284
$2.30
QTY:

Sold By: EA

39

On Diagram

PLUG

Part #: 036292
$6.20
QTY:

Sold By: EA

40

On Diagram

FILTER

Part #: 036270
$21.50
QTY:

Sold By: EA

41

On Diagram

SCREW

Part #: 036302
$0.80
QTY:

Sold By: EA

42

On Diagram

GASKET

Part #: 036276
$7.00
QTY:

Sold By: EA

43

On Diagram

VALVE

Part #: 036297

This part is replaced with part number 038097

Price not found
QTY:

Sold By: EA

44

On Diagram

VALVE

Part #: 036298
$5.10
QTY:

Sold By: EA

45

On Diagram

GASKET

Part #: 036275
$5.80
QTY:

Sold By: EA

46

On Diagram

JET

Part #: 036273
$7.00
QTY:

Sold By: EA

47

On Diagram

JET

Part #: 036158
$32.30
QTY:

Sold By: EA

48

On Diagram

TUBE

Part #: 036294
$4.40
QTY:

Sold By: EA

49

On Diagram

JET

Part #: 036274
$6.10
QTY:

Sold By: EA

50

On Diagram

GASKET

Part #: 036278
$4.00
QTY:

Sold By: EA

51

On Diagram

BRACKET

Part #: 033612
$39.80
QTY:

Sold By: EA

52

On Diagram

BRACKET

Part #: 033613
$19.50
QTY:

Sold By: EA

53

On Diagram

CONNECTOR

Part #: 033616
$80.70
QTY:

Sold By: EA

54

On Diagram

KIT

Part #: 033716
$409.10
QTY:

Sold By: KT

55

On Diagram

SCREW 8-32x1-1/2 PAN PHIL HEAD

Part #: 038267
$0.70
QTY:

Sold By: EA

59

On Diagram

SPRING

Part #: 036282

This part is no longer available.

Price not found
QTY:

Sold By: EA
