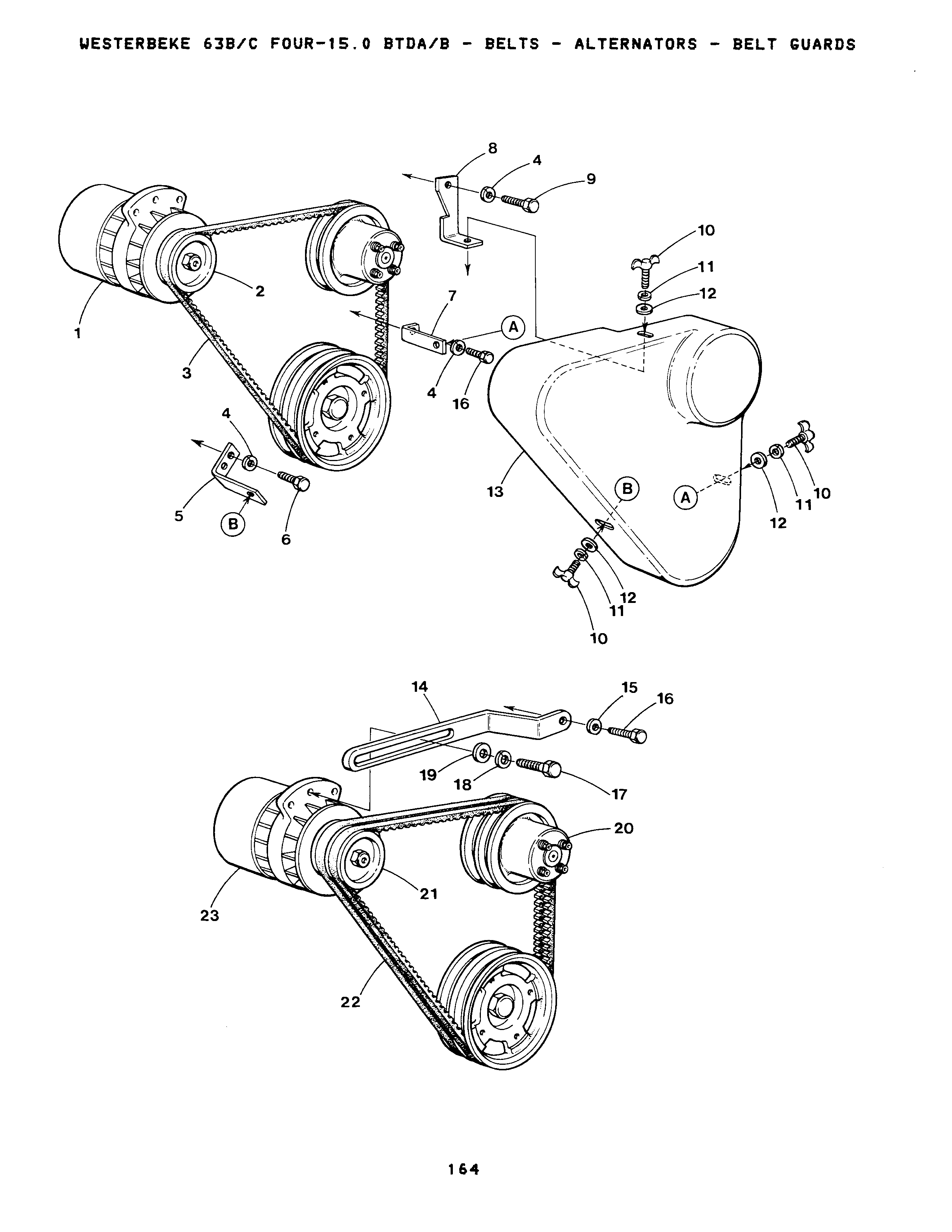

BELTS - ALTERNATORS - BELT GUARDS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

ALTERNATOR 12VDC 51A

Part #: 024684

This part is no longer available.

$640.10
QTY:

Sold By: EA

1-2

On Diagram

ALTERNATOR 12VDC

Part #: 039790
$459.90
QTY:

Sold By: EA

1-3

On Diagram

ALTERNATOR 24VDC 42A W/REG

Part #: 038530
$685.60
QTY:

Sold By: EA

2-1

On Diagram

PULLEY

Part #: 011548
$111.90
QTY:

Sold By: EA

2-2

On Diagram

PULLEY

Part #: 039354
$67.00
QTY:

Sold By: EA

3

On Diagram

BELT

Part #: 011672
$40.90
QTY:

Sold By: EA

4

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

5

On Diagram

BRACKET

Part #: 033226

This part is no longer available.

Price not found
QTY:

Sold By: EA

6

On Diagram

CAPSCREW 5/16NFx2-1/2

Part #: 031586
$2.20
QTY:

Sold By: EA

7

On Diagram

BRACKET

Part #: 033227
$4.80
QTY:

Sold By: EA

8

On Diagram

BRACKET

Part #: 033229

This part is no longer available.

Price not found
QTY:

Sold By: EA

9

On Diagram

CAPSCREW 5/16NFx3-1/2

Part #: 031590
$1.20
QTY:

Sold By: EA

10

On Diagram

WINGSCREW 10-32 x 1/2

Part #: 033228
$6.10
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

12

On Diagram

WASHER

Part #: 033372
$0.40
QTY:

Sold By: EA

13

On Diagram

GUARD

Part #: 033060

This part is no longer available.

$63.00
QTY:

Sold By: EA

14

On Diagram

STRAP

Part #: 038688
$52.00
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

16

On Diagram

CAPSCREW 5/16NFx2-1/4

Part #: 031585
$0.60
QTY:

Sold By: EA

17-1

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

17-2

On Diagram

CAPSCREW 3/8NCx1-1/4

Part #: 031606
$0.50
QTY:

Sold By: EA

18-1

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

18-2

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

19-1

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

19-2

On Diagram

WASHER

Part #: 031765
$0.30
QTY:

Sold By: EA

20-1

On Diagram

PULLEY

Part #: 031110

This part is no longer available.

$334.10
QTY:

Sold By: EA

20-2

On Diagram

PULLEY

Part #: 038436
$302.00
QTY:

Sold By: EA

21-1

On Diagram

PULLEY

Part #: 031168
$389.80
QTY:

Sold By: EA

21-2

On Diagram

PULLEY

Part #: 038440
$406.30
QTY:

Sold By: EA

22-1

On Diagram

BELT

Part #: 032977
$81.90
QTY:

Sold By: EA

22-2

On Diagram

BELT

Part #: 032977
$81.90
QTY:

Sold By: EA

22-3

On Diagram

BELT

Part #: 036457
$39.50
QTY:

Sold By: EA

23-1

On Diagram

ALTERNATOR 12VDC 90A

Part #: 030735

This part is no longer available.

$737.90
QTY:

Sold By: EA

23-2

On Diagram

ALTERNATOR

Part #: 038792

This part is no longer available.

Price not found
QTY:

Sold By: EA

23-3

On Diagram

ALTERNATOR 12VDC 160A

Part #: 038793
$1,454.50
QTY:

Sold By: EA

23-4

On Diagram

ALTERNATOR 12VDC 190A

Part #: 038794
$1,527.40
QTY:

Sold By: EA

24-1

On Diagram

REGULATOR

Part #: 038891

This part is replaced with part number 052635

Price not found
QTY:

Sold By: EA

24-2

On Diagram

REGULATOR

Part #: 038892

This part is replaced with part number 052635

Price not found
QTY:

Sold By: EA
