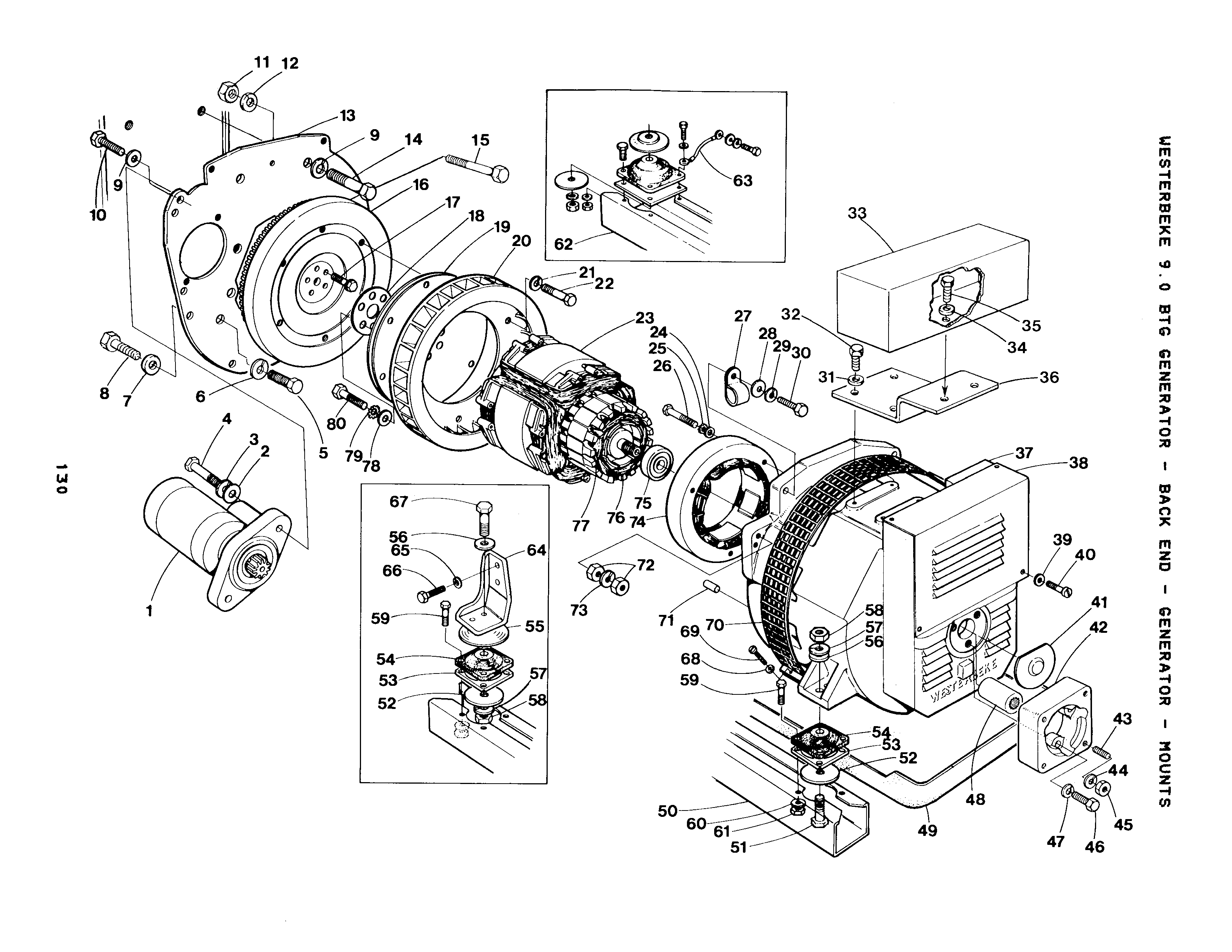

BACK END - GENERATOR - MOUNTS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

2

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

4

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

5

On Diagram
$2.60
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

8

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

9

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

10

On Diagram

CAPSCREW M10x55 DIN 933

Part #: 013631
$2.30
QTY:

Sold By: EA

11

On Diagram

NUT M12 X 1.25 DIN 934

Part #: 024957
$0.90
QTY:

Sold By: EA

12

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

13

On Diagram

PLATE

Part #: 034762
$197.20
QTY:

Sold By: EA

14

On Diagram
$2.20
QTY:

Sold By: EA

15

On Diagram
$4.50
QTY:

Sold By: EA

16-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 034760
$645.10
QTY:

Sold By: EA

16-2

On Diagram

GEAR

Part #: 032996
$120.70
QTY:

Sold By: EA

17

On Diagram
$2.20
QTY:

Sold By: EA

18

On Diagram

PLATE

Part #: 035928
Price not found
QTY:

Sold By: EA

19

On Diagram

PLATE

Part #: 035927
$92.30
QTY:

Sold By: EA

20

On Diagram

FAN

Part #: 035929
$175.80
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER M 8 DIN 6797J

Part #: 031835
$0.40
QTY:

Sold By: EA

22

On Diagram

CAPSCREW

Part #: 037338
$2.20
QTY:

Sold By: EA

23

On Diagram

ARMATURE BT 8KW 1PH

Part #: 035930
$2,884.90
QTY:

Sold By: EA

24

On Diagram

CAPSCREW M 5x35 DIN 912

Part #: 031919
$0.90
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

26

On Diagram

WASHER M 5 DIN 125

Part #: 031781
$0.30
QTY:

Sold By: EA

27

On Diagram

CLAMP

Part #: 013760
$7.20
QTY:

Sold By: EA

28

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

30

On Diagram

CAPSCREW M10x45 DIN 931

Part #: 034470
$1.40
QTY:

Sold By: EA

31

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

32

On Diagram

CAPSCREW M 6x12 DIN 933

Part #: 031825
$0.60
QTY:

Sold By: EA

33

On Diagram

PANEL

Part #: 035194
$1,103.00
QTY:

Sold By: EA

34

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

35

On Diagram

CAPSCREW 1/4NCx1/2

Part #: 031501
$0.30
QTY:

Sold By: EA

36

On Diagram

BRACKET

Part #: 036386
$20.50
QTY:

Sold By: EA

37-1

On Diagram

MOUNT

Part #: 034728

This part is no longer available.

Price not found
QTY:

Sold By: EA

37-2

On Diagram

STATOR ASSEMBLY BT-8

Part #: 035934
$5,088.90
QTY:

Sold By: EA

38

On Diagram

COVER

Part #: 035936

This part is replaced with part number 042417

Price not found
QTY:

Sold By: EA

39

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

40

On Diagram

SCREW M 5 X 10 DIN 84A

Part #: 031918
$1.70
QTY:

Sold By: EA

41

On Diagram

COVER

Part #: 034182
$43.30
QTY:

Sold By: EA

42-1

On Diagram

KIT

Part #: 034786
$1,179.60
QTY:

Sold By: KT

42-2

On Diagram

DRAWING

Part #: 034742
Price not found
QTY:

Sold By: EA

42-3

On Diagram

ADAPTER

Part #: 034738
$788.30
QTY:

Sold By: EA

43

On Diagram

STUD

Part #: 034867
$13.80
QTY:

Sold By: EA

44

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

45

On Diagram

NUT 1/2-13 NC

Part #: 031774
$0.40
QTY:

Sold By: EA

46

On Diagram

CAPSCREW M12x40 DIN 933

Part #: 013589
$1.80
QTY:

Sold By: EA

47

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

48

On Diagram

DRIVE

Part #: 034737
$786.10
QTY:

Sold By: EA

49

On Diagram

DRIPTRAY

Part #: 036377
$32.90
QTY:

Sold By: EA

50

On Diagram

RAIL ASSEMBLY-LEFT

Part #: 035444
$595.60
QTY:

Sold By: EA

51

On Diagram

CAPSCREW 1/2NCx2-3/4

Part #: 031712
$1.70
QTY:

Sold By: EA

52

On Diagram

WASHER

Part #: 024674
$2.20
QTY:

Sold By: EA

53

On Diagram

SPACER

Part #: 035271
$18.70
QTY:

Sold By: EA

54

On Diagram

ISOLATOR

Part #: 024776
$55.10
QTY:

Sold By: EA

55

On Diagram

SHIELD

Part #: 033530
$6.30
QTY:

Sold By: EA

56

On Diagram

WASHER

Part #: 031777
$0.80
QTY:

Sold By: EA

57

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

58

On Diagram

NUT 1/2-13 NC

Part #: 031774
$0.40
QTY:

Sold By: EA

59

On Diagram

CAPSCREW 5/16NCx1-1/2

Part #: 031557
$0.50
QTY:

Sold By: EA

60

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

61

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

62

On Diagram

RAIL ASSEMBLY-RIGHT

Part #: 035445
$611.90
QTY:

Sold By: EA

63

On Diagram

STRAP

Part #: 034593
$16.50
QTY:

Sold By: EA

64-1

On Diagram

MOUNT

Part #: 034878

This part is no longer available.

$200.40
QTY:

Sold By: EA

64-2

On Diagram

MOUNT

Part #: 034880

This part is no longer available.

$192.70
QTY:

Sold By: EA

65-1

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

65-2

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

66

On Diagram
$2.10
QTY:

Sold By: EA

67

On Diagram

CAPSCREW 1/2NCx2-3/4

Part #: 031712
$1.70
QTY:

Sold By: EA

68

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

69

On Diagram

SCREW M 5 X 20 DIN 84A

Part #: 031920
$1.70
QTY:

Sold By: EA

70

On Diagram

GUARD

Part #: 035935
$105.50
QTY:

Sold By: EA

71

On Diagram

DOWEL

Part #: 019039
$1.20
QTY:

Sold By: EA

72

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

73

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

74

On Diagram

STATOR

Part #: 035933
$509.30
QTY:

Sold By: EA

75

On Diagram

BEARING

Part #: 035932
$90.80
QTY:

Sold By: EA

76

On Diagram

VARISTOR

Part #: 035943
$52.80
QTY:

Sold By: EA

77

On Diagram

DIODE

Part #: 035931
$52.80
QTY:

Sold By: EA

78

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

79

On Diagram

LOCKWASHER M10 DIN 6797A

Part #: 031915
$0.50
QTY:

Sold By: EA

80

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

81

On Diagram

LABEL

Part #: 035144
$1.70
QTY:

Sold By: EA
