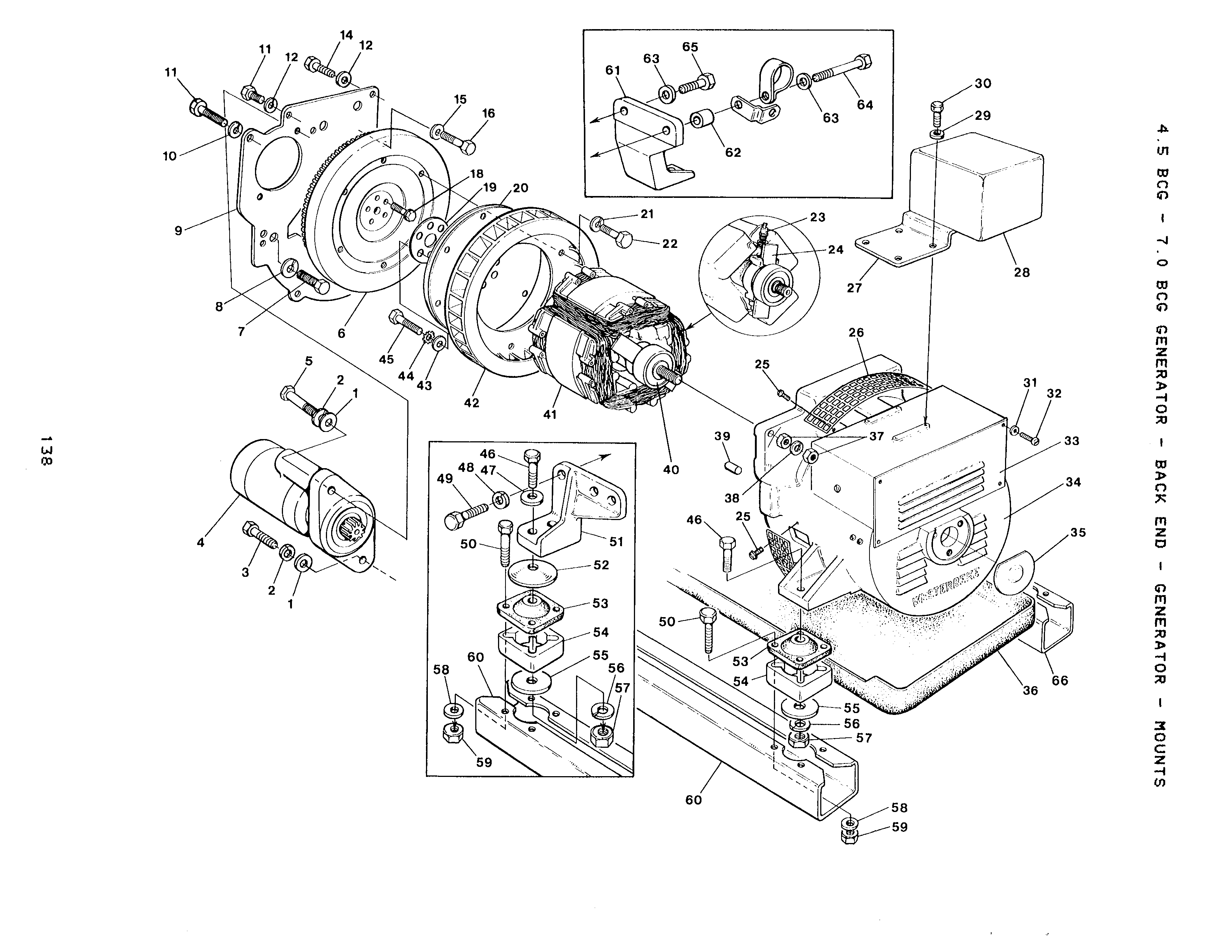

BACK END - GENERATOR - MOUNTS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

CAPSCREW M10x40 DIN 933

Part #: 034590
$1.70
QTY:

Sold By: EA

4

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

6-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 036410
$468.10
QTY:

Sold By: EA

6-2

On Diagram

GEAR

Part #: 032996
$120.70
QTY:

Sold By: EA

7

On Diagram

CAPSCREW M12x1.25x25 DIN 961

Part #: 024959
$2.60
QTY:

Sold By: EA

8

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

9

On Diagram

PLATE

Part #: 036408
$203.40
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

11

On Diagram

CAPSCREW M10x60 DIN 912 FULLY

Part #: 034833
$3.00
QTY:

Sold By: EA

12

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

13

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

14

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

16

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

18

On Diagram

CAPSCREW M10x1.25x25 D961 10.9

Part #: 036588
$20.40
QTY:

Sold By: EA

19

On Diagram

PLATE

Part #: 035928
Price not found
QTY:

Sold By: EA

20

On Diagram

PLATE

Part #: 035927
$92.30
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

22

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

24

On Diagram

DIODE SET

Part #: 035971

This is a set of 2 diodes.

$207.90
QTY:

Sold By: ST

25

On Diagram

SCREW M 5 X 10 DIN 85A

Part #: 031933
$0.40
QTY:

Sold By: EA

26

On Diagram

GUARD

Part #: 035974
$44.00
QTY:

Sold By: EA

27

On Diagram

BRACKET

Part #: 037824

This part is replaced with part number 036871

Price not found
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

30

On Diagram

CAPSCREW M 6x12 DIN 933

Part #: 031825
$0.60
QTY:

Sold By: EA

31

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

32

On Diagram

SCREW M 5 X 10 DIN 84A

Part #: 031918
$1.70
QTY:

Sold By: EA

33-1

On Diagram

COVER

Part #: 035984
$105.50
QTY:

Sold By: EA

33-2

On Diagram

COVER

Part #: 035975
$87.90
QTY:

Sold By: EA

34-1

On Diagram

GENERATOR

Part #: 037429

This part is no longer available. See Parts Bulletin 2015-5.

$1.00
QTY:

Sold By: EA

34-10

On Diagram

STATOR BC-6.5KW

Part #: 037722

This part is no longer available.

$3,227.20
QTY:

Sold By: KT

34-11

On Diagram

STATOR

Part #: 038753

This part is no longer available.

Price not found
QTY:

Sold By: EA

34-2

On Diagram

GENERATOR

Part #: 037438

This part is no longer available.

Price not found
QTY:

Sold By: EA

34-3

On Diagram

GENERATOR

Part #: 038001

This part is no longer available.

Price not found
QTY:

Sold By: EA

34-4

On Diagram

HOUSING

Part #: 035983

This part is replaced with part number 041218

Price not found
QTY:

Sold By: EA

34-5

On Diagram

HOUSING

Part #: 041218

This part is no longer available.

Price not found
QTY:

Sold By: EA

34-6

On Diagram

STATOR ASSY INCL HOUSING BC6.5

Part #: 035973

This part is no longer available.

$3,008.80
QTY:

Sold By: EA

34-7

On Diagram

STATOR ASSY INCL HSG BC 6.5 60

Part #: 038752
$1,986.80
QTY:

Sold By: EA

34-8

On Diagram

STATOR

Part #: 037721

This part is replaced with part number 041218

Price not found
QTY:

Sold By: EA

34-9

On Diagram

STATOR

Part #: 041216

This part is no longer available.

Price not found
QTY:

Sold By: EA

35

On Diagram

COVER

Part #: 034182
$43.30
QTY:

Sold By: EA

36

On Diagram

DRIPTRAY

Part #: 036377
$32.90
QTY:

Sold By: EA

37

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

38

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

39

On Diagram

DOWEL

Part #: 019039
$1.20
QTY:

Sold By: EA

40

On Diagram

BEARING

Part #: 035972
$53.50
QTY:

Sold By: EA

41-1

On Diagram

ARMATURE BC 4.5KW 1PH

Part #: 035982
$2,755.10
QTY:

Sold By: EA

41-2

On Diagram

ARMATURE BC 6.5KW 1PH

Part #: 035970
$2,967.30
QTY:

Sold By: EA

42

On Diagram

FAN

Part #: 035969
$149.80
QTY:

Sold By: EA

43

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

44

On Diagram

LOCKWASHER M10 DIN 6797A

Part #: 031915
$0.50
QTY:

Sold By: EA

45

On Diagram

CAPSCREW M10x20 DIN 933

Part #: 018813
$1.10
QTY:

Sold By: EA

46

On Diagram

CAPSCREW 1/2NCx3

Part #: 031713
$1.50
QTY:

Sold By: EA

47

On Diagram

WASHER

Part #: 031777
$0.80
QTY:

Sold By: EA

48

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

49

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

50

On Diagram

CAPSCREW 5/16NCx2

Part #: 031559
$0.50
QTY:

Sold By: EA

51

On Diagram

MOUNT

Part #: 037236
$105.10
QTY:

Sold By: EA

52

On Diagram

SHIELD

Part #: 033530
$6.30
QTY:

Sold By: EA

53

On Diagram

ISOLATOR

Part #: 024776
$50.50
QTY:

Sold By: EA

54

On Diagram

SPACER

Part #: 037792
$25.60
QTY:

Sold By: EA

55

On Diagram

WASHER

Part #: 024674
$2.20
QTY:

Sold By: EA

56

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

57

On Diagram

NUT 1/2-13 NC

Part #: 031774
$0.40
QTY:

Sold By: EA

58

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

59

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

60

On Diagram

RAIL ASSEMBLY-LEFT

Part #: 037770
$595.30
QTY:

Sold By: EA

61

On Diagram

MOUNT

Part #: 037446
$94.60
QTY:

Sold By: EA

62

On Diagram

SPACER

Part #: 034497
$16.90
QTY:

Sold By: EA

63

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

64

On Diagram

CAPSCREW M10x1.25x25 DIN 961

Part #: 024952
$2.20
QTY:

Sold By: EA

65

On Diagram

CAPSCREW M10x1.25x45 DIN 960

Part #: 024955
$4.60
QTY:

Sold By: EA

66

On Diagram

RAIL ASSEMBLY-RIGHT

Part #: 037771
$611.80
QTY:

Sold By: EA

67

On Diagram

STRAP

Part #: 034593
$16.50
QTY:

Sold By: EA
