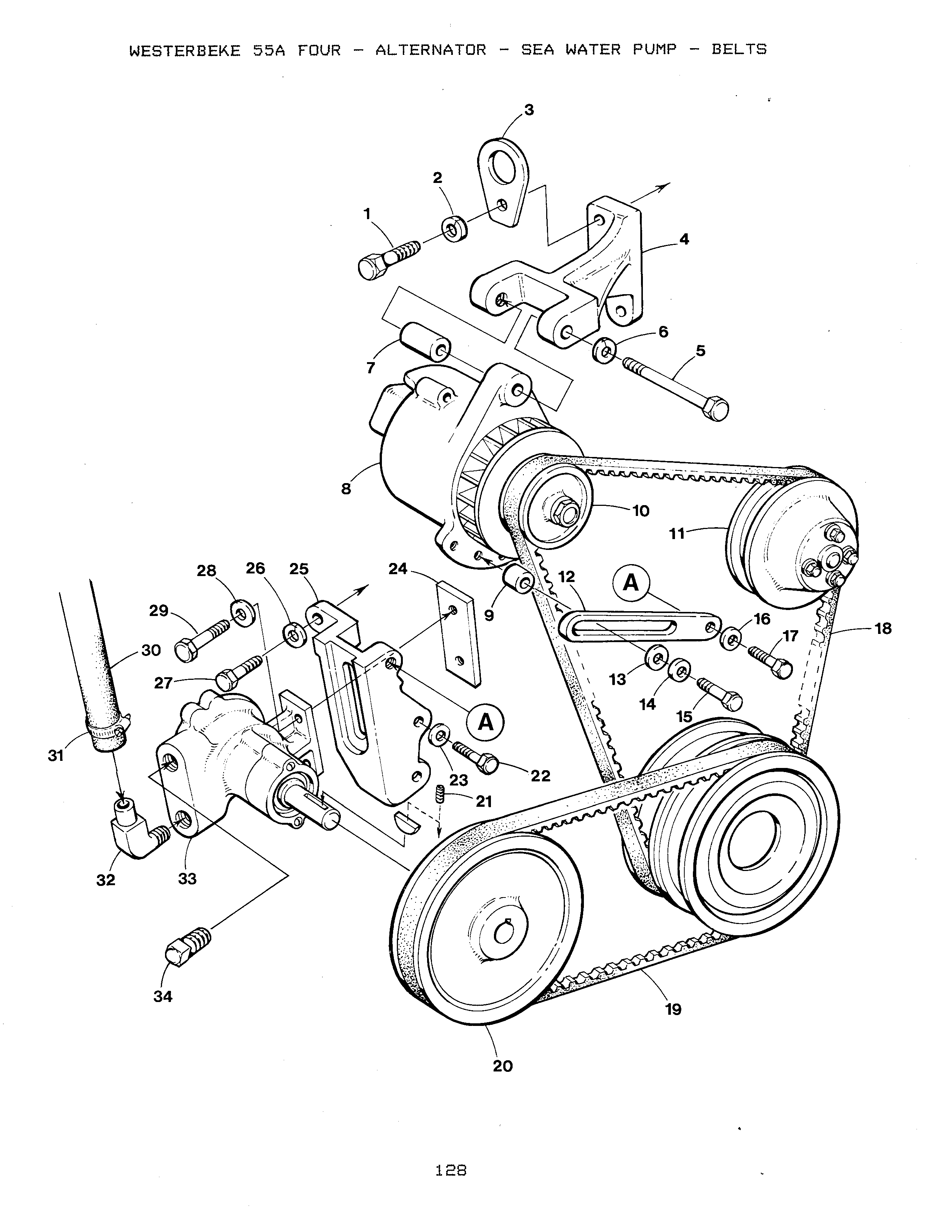

ALTERNATOR - SEA WATER PUMP - BELTS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

CAPSCREW M10x1.25x30 DIN 961

Part #: 031228
$2.10
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

EYE

Part #: 040630

This part is no longer available.

$47.20
QTY:

Sold By: EA

4-1

On Diagram

BRACKET

Part #: 039752

This part is no longer available.

$343.90
QTY:

Sold By: EA

4-2

On Diagram

BRACKET

Part #: 039759

This part is no longer available.

$277.40
QTY:

Sold By: EA

5-1

On Diagram

CAPSCREW 1/2NCx4-1/4

Part #: 031718
$9.00
QTY:

Sold By: EA

5-2

On Diagram

CAPSCREW 3/8NCx4-1/4

Part #: 031618
$1.50
QTY:

Sold By: EA

6-1

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

6-2

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

7-1

On Diagram

SPACER

Part #: 039758
$43.40
QTY:

Sold By: EA

7-2

On Diagram

SPACER

Part #: 033473
$46.50
QTY:

Sold By: EA

8-1

On Diagram

ALTERNATOR 12VDC

Part #: 039790
$459.90
QTY:

Sold By: EA

8-2

On Diagram

ALTERNATOR 12VDC 90A

Part #: 030735

This part is no longer available.

$737.90
QTY:

Sold By: EA

8-3

On Diagram

ALTERNATOR

Part #: 038792

This part is no longer available.

Price not found
QTY:

Sold By: EA

8-4

On Diagram

REGULATOR

Part #: 038891

This part is replaced with part number 052635

Price not found
QTY:

Sold By: EA

8-5

On Diagram

ALTERNATOR 12VDC 160A

Part #: 038793
$1,454.50
QTY:

Sold By: EA

8-6

On Diagram

ALTERNATOR 12VDC 190A

Part #: 038794
$1,527.40
QTY:

Sold By: EA

8-7

On Diagram

REGULATOR

Part #: 038892

This part is replaced with part number 052635

Price not found
QTY:

Sold By: EA

9

On Diagram

SPACER

Part #: 040602
$30.00
QTY:

Sold By: EA

10-1

On Diagram

PULLEY

Part #: 039354
$67.00
QTY:

Sold By: EA

10-2

On Diagram

PULLEY

Part #: 042332
$935.40
QTY:

Sold By: EA

10-3

On Diagram

PULLEY

Part #: 041035
$639.90
QTY:

Sold By: EA

11-1

On Diagram

PULLEY

Part #: 041946

This part is no longer available.

$53.60
QTY:

Sold By: EA

11-2

On Diagram

PULLEY

Part #: 040022

This part is no longer available.

$556.20
QTY:

Sold By: EA

12-1

On Diagram

STRAP

Part #: 033064
$62.40
QTY:

Sold By: EA

12-2

On Diagram

STRAP

Part #: 035338
$31.40
QTY:

Sold By: EA

13-1

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

13-2

On Diagram

WASHER

Part #: 031765
$0.30
QTY:

Sold By: EA

14-1

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

14-2

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

15-1

On Diagram

CAPSCREW 5/16NCx1-1/4

Part #: 031556
$0.50
QTY:

Sold By: EA

15-2

On Diagram

CAPSCREW 3/8NCx1-3/4

Part #: 031608
$0.60
QTY:

Sold By: EA

16

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

17

On Diagram

CAPSCREW 5/16NCx3/4

Part #: 031553
$0.40
QTY:

Sold By: EA

18-1

On Diagram

BELT

Part #: 032977
$81.90
QTY:

Sold By: EA

18-2

On Diagram

BELT

Part #: 039181
$33.20
QTY:

Sold By: EA

19

On Diagram

BELT

Part #: 040018
$35.70
QTY:

Sold By: EA

20

On Diagram

PULLEY

Part #: 040136
$241.10
QTY:

Sold By: EA

21

On Diagram

SETSCREW

Part #: 040562
$1.20
QTY:

Sold By: EA

22

On Diagram

CAPSCREW M10x1.25x80 DIN 961

Part #: 031823
$6.80
QTY:

Sold By: EA

23

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

24

On Diagram

PLATE

Part #: 038435
$38.90
QTY:

Sold By: EA

25

On Diagram

BRACKET

Part #: 039754

This part is no longer available.

$476.30
QTY:

Sold By: EA

26

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

27

On Diagram

CAPSCREW M10x1.25x100 DIN 960

Part #: 041331
$4.20
QTY:

Sold By: EA

28

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

29

On Diagram

CAPSCREW 3/8NFx1-1/4

Part #: 031631
$0.70
QTY:

Sold By: EA

30

On Diagram

HOSE 1 IN WIRE INSERTED

Part #: 011779

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$1.70
QTY:

Sold By: IN

31

On Diagram

CLAMP

Part #: 011386
$3.00
QTY:

Sold By: EA

32

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

33

On Diagram

PUMP

Part #: 038445
$1,455.50
QTY:

Sold By: EA

34

On Diagram

NIPPLE 3/4 NPT x 1 HOSE

Part #: 036622
$134.80
QTY:

Sold By: EA
