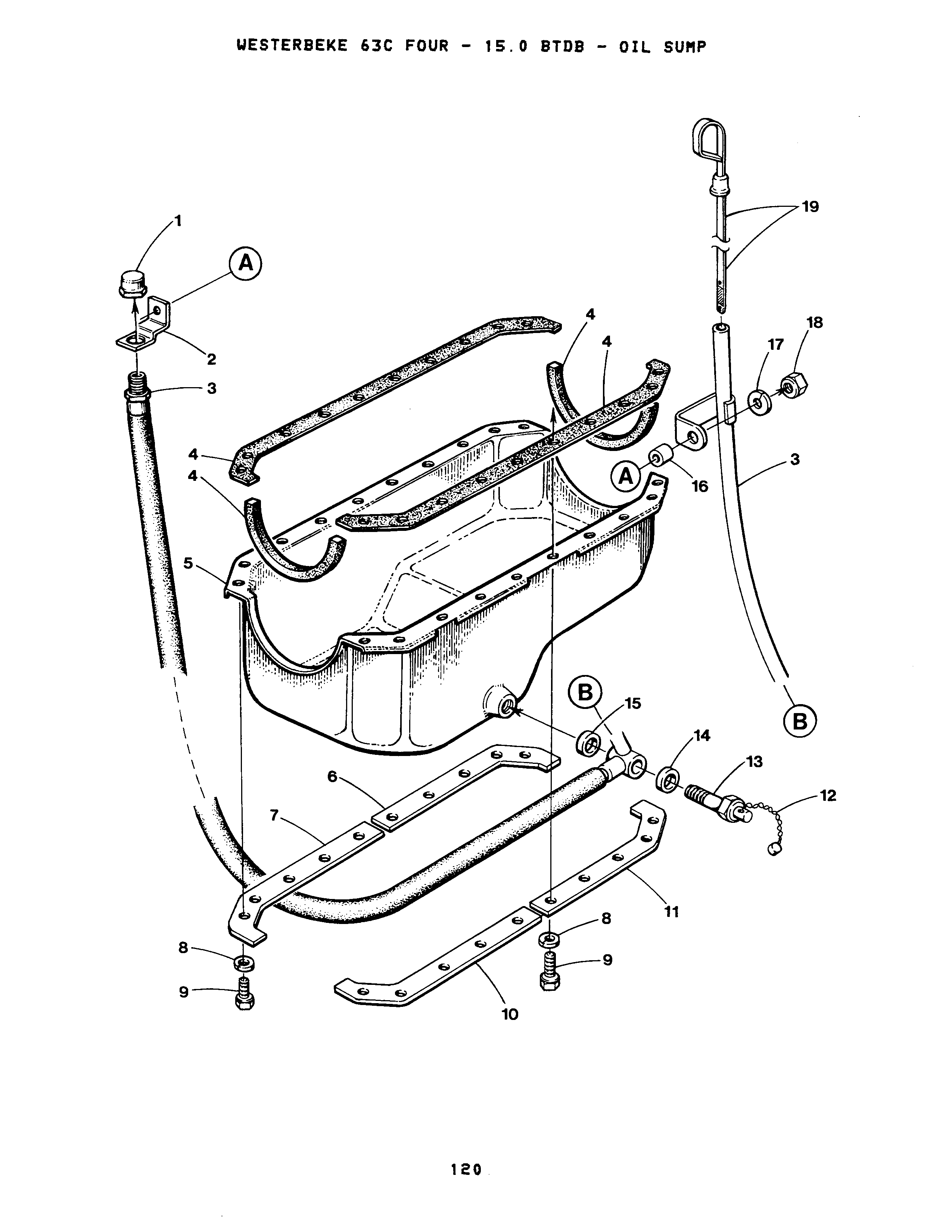

63C - 15.0 BTDB - OIL SUMP

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

CAP 1/4 NPT BRASS

Part #: 024905

$4.50

QTY:

Sold By: EA

2

On Diagram

BRACKET

Part #: 024922

$8.90

QTY:

Sold By: EA

3

On Diagram

TUBE

Part #: 040521

$211.70

QTY:

Sold By: EA

4

On Diagram

GASKET SET

Part #: 043213

This part is replaced with part number 031051

Price not found

QTY:

Sold By: ST

5

On Diagram

SUMP

Part #: 043207

This part is no longer available.

$187.10

QTY:

Sold By: EA

6

On Diagram

STIFFENER

Part #: 043162

$1.40

QTY:

Sold By: EA

7

On Diagram

STIFFENER

Part #: 043160

$2.70

QTY:

Sold By: EA

8

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758

$0.20

QTY:

Sold By: EA

9

On Diagram

CAPSCREW 5/16NFx3/4

Part #: 031578

$0.50

QTY:

Sold By: EA

10

On Diagram

STIFFENER

Part #: 043159

This part is no longer available.

$80.00

QTY:

Sold By: EA

11

On Diagram

STIFFENER

Part #: 043161

This part is no longer available.

$80.00

QTY:

Sold By: EA

12

On Diagram

SEAL

Part #: 037393

$1.30

QTY:

Sold By: EA

13

On Diagram

BOLT

Part #: 036821

$31.20

QTY:

Sold By: EA

14

On Diagram

WASHER

Part #: 036493

$1.50

QTY:

Sold By: EA

15

On Diagram

WASHER

Part #: 030291

$9.40

QTY:

Sold By: EA

16

On Diagram

SPACER

Part #: 021885

$5.20

QTY:

Sold By: EA

17

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758

$0.20

QTY:

Sold By: EA

18

On Diagram

NUT 5/16-24 NF

Part #: 031760

$0.30

QTY:

Sold By: EA

19

On Diagram

DIPSTICK 63C

Part #: 040940

$15.00

QTY:

Sold By: EA
