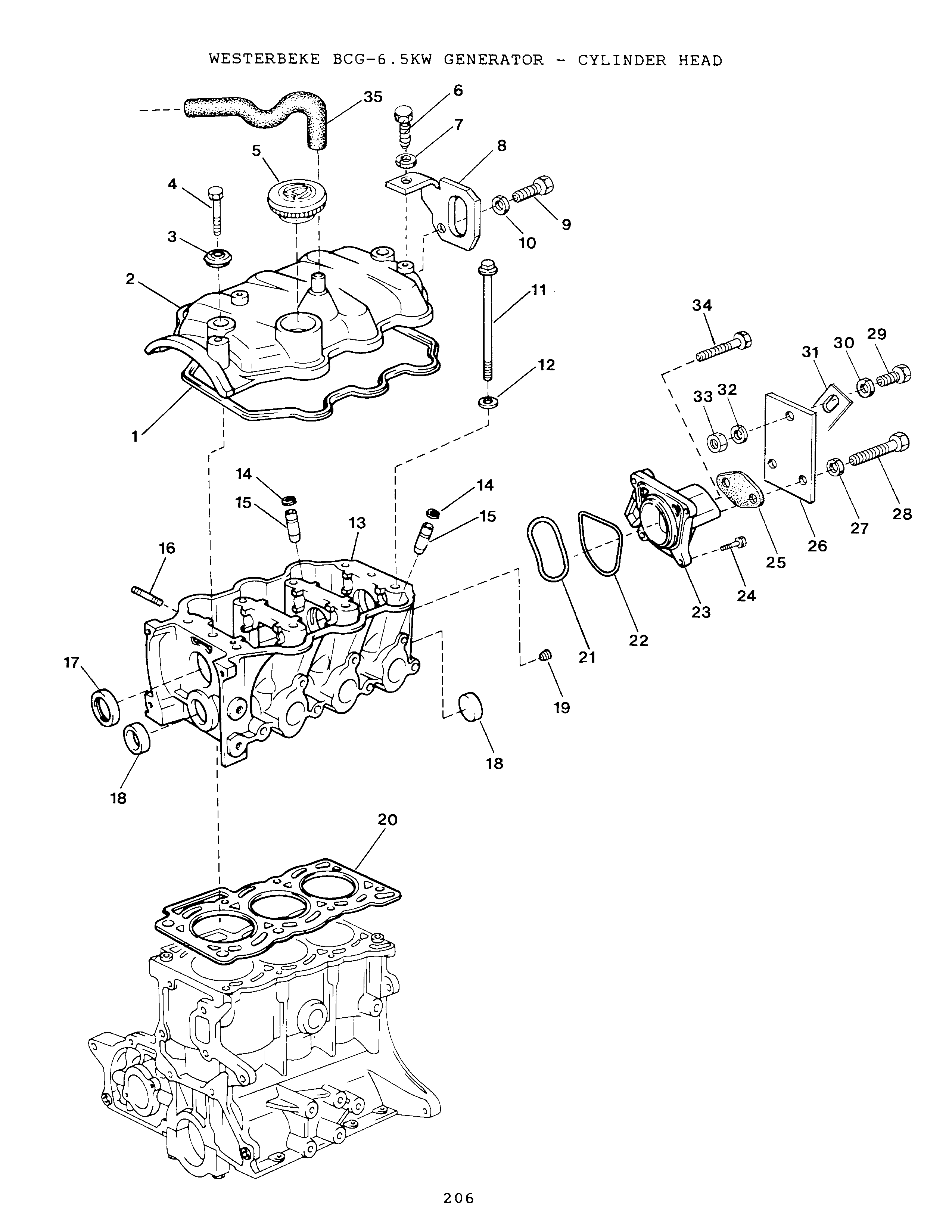

6.0 BCG - CYLINDER HEAD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GASKET

Part #: 035479
$135.60
QTY:

Sold By: EA

2

On Diagram

COVER

Part #: 035441

This part is no longer available.

Price not found
QTY:

Sold By: EA

3

On Diagram

SEAL

Part #: 035628
$20.20
QTY:

Sold By: EA

4

On Diagram

BOLT

Part #: 035621
$5.10
QTY:

Sold By: EA

5

On Diagram

CAP

Part #: 035514

This part is no longer available.

$48.90
QTY:

Sold By: EA

6

On Diagram

CAPSCREW M 8x11 DIN 933

Part #: 034672
$17.90
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

8

On Diagram

EYE

Part #: 035268
$26.00
QTY:

Sold By: EA

9

On Diagram

CAPSCREW M 6x25 DIN 933

Part #: 020628
$0.50
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

11

On Diagram

BOLT

Part #: 035660
$11.90
QTY:

Sold By: EA

12

On Diagram

WASHER

Part #: 035624
$13.20
QTY:

Sold By: EA

13

On Diagram

HEAD

Part #: 035470
$1,685.00
QTY:

Sold By: EA

14

On Diagram

RING

Part #: 035659
$7.80
QTY:

Sold By: EA

15

On Diagram

GUIDE

Part #: 035473
$58.20
QTY:

Sold By: EA

16

On Diagram

STUD

Part #: 018251

This part is replaced with part number 015828

Price not found
QTY:

Sold By: each

17

On Diagram

SEAL

Part #: 035647
$42.70
QTY:

Sold By: EA

18

On Diagram

PLUG

Part #: 024349
$4.40
QTY:

Sold By: EA

19

On Diagram

PLUG M16x1.5 DIN 910 BRASS

Part #: 030730
$41.10
QTY:

Sold By: EA

20

On Diagram

GASKET

Part #: 035472

This part is no longer available.

$342.60
QTY:

Sold By: EA

21

On Diagram

WASHER

Part #: 036204
$18.80
QTY:

Sold By: EA

22

On Diagram

O-RING

Part #: 035635
$36.70
QTY:

Sold By: EA

23

On Diagram

HOUSING

Part #: 035475

This part is no longer available.

$218.70
QTY:

Sold By: EA

24

On Diagram

CAPSCREW M 6x20 JIS 6 W/LW

Part #: 035786

This part is no longer available.

$3.20
QTY:

Sold By: EA

25

On Diagram

GASKET

Part #: 035044
$6.90
QTY:

Sold By: EA

26

On Diagram

BRACKET

Part #: 035437

This part is no longer available.

Price not found
QTY:

Sold By: EA

27

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

28

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

29

On Diagram

CAPSCREW 5/16NCx3/4

Part #: 031553
$0.40
QTY:

Sold By: EA

30

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

31

On Diagram

COIL

Part #: 035667

This part is no longer available.

Price not found
QTY:

Sold By: EA

32

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

33

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

34

On Diagram

CAPSCREW M 6x45 JIS 6 W/LW-FW

Part #: 035811

This part is no longer available.

$4.00
QTY:

Sold By: EA

35

On Diagram

HOSE

Part #: 035830
$75.20
QTY:

Sold By: EA
