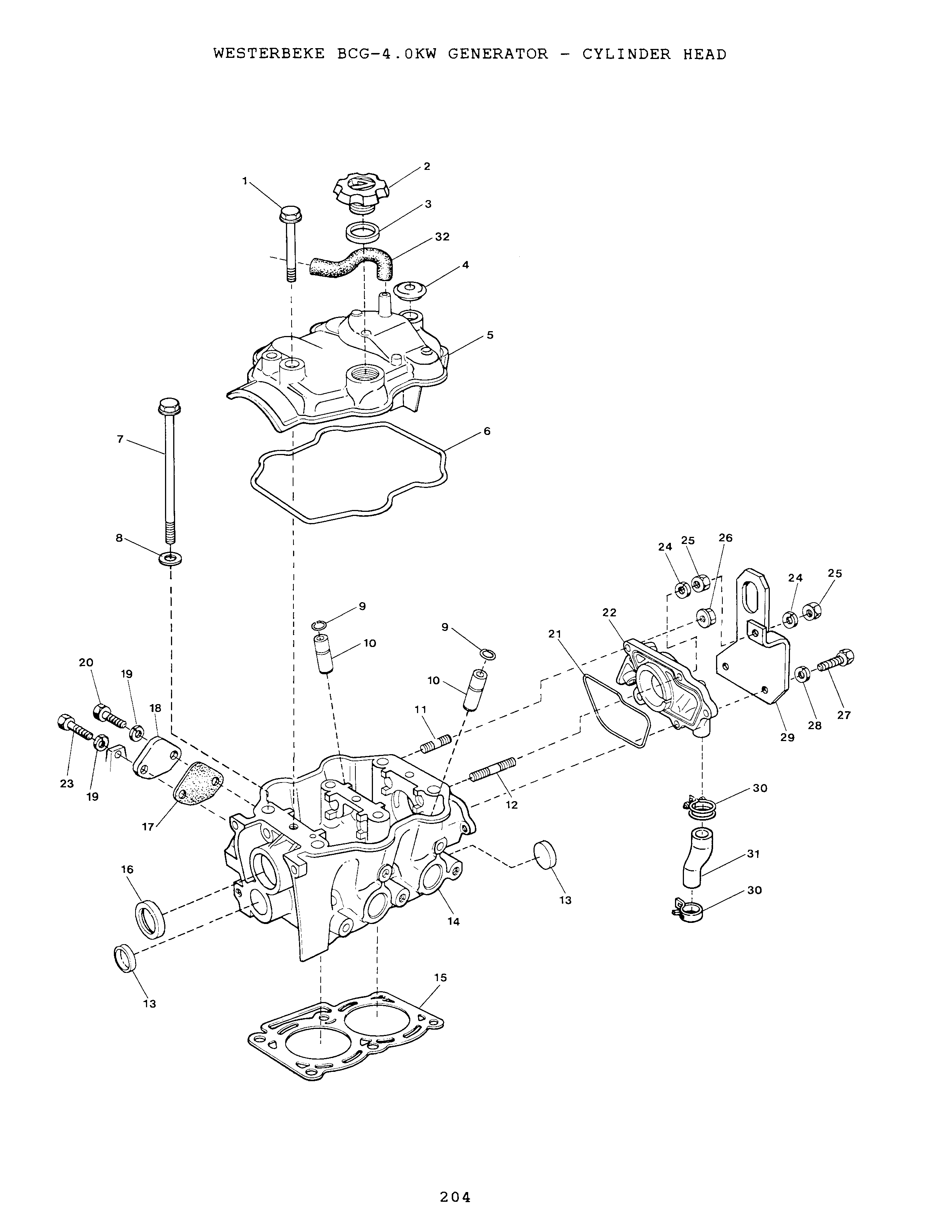

4.0 BCG - CYLINDER HEAD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

BOLT

Part #: 035621

$5.10

QTY:

Sold By: EA

2

On Diagram

CAP

Part #: 035515

$28.80

QTY:

Sold By: EA

3

On Diagram

GASKET

Part #: 035682

$7.80

QTY:

Sold By: EA

4

On Diagram

SEAL

Part #: 035627

$34.20

QTY:

Sold By: EA

5

On Diagram

COVER

Part #: 035477

This part is no longer available.

$330.00

QTY:

Sold By: EA

6

On Diagram

GASKET

Part #: 035478

$36.70

QTY:

Sold By: EA

7

On Diagram

BOLT

Part #: 035660

$11.90

QTY:

Sold By: EA

8

On Diagram

WASHER

Part #: 035624

$13.20

QTY:

Sold By: EA

9

On Diagram

RING

Part #: 035659

$7.80

QTY:

Sold By: EA

10

On Diagram

GUIDE

Part #: 035473

$58.20

QTY:

Sold By: EA

11

On Diagram

STUD M 6x25

Part #: 036203

$8.60

QTY:

Sold By: EA

12

On Diagram

STUD M 6x35

Part #: 036202

$4.80

QTY:

Sold By: EA

13

On Diagram

PLUG

Part #: 024349

$4.40

QTY:

Sold By: EA

14

On Diagram

HEAD

Part #: 035469

This part is no longer available.

$2,210.10

QTY:

Sold By: EA

15

On Diagram

GASKET

Part #: 035471

This part is no longer available.

Price not found

QTY:

Sold By: EA

16

On Diagram

SEAL

Part #: 035647

$42.70

QTY:

Sold By: EA

17

On Diagram

GASKET

Part #: 035044

$6.90

QTY:

Sold By: EA

18

On Diagram

COVER

Part #: 035038

This part is no longer available.

Price not found

QTY:

Sold By: EA

19

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786

$0.20

QTY:

Sold By: EA

20

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196

$0.60

QTY:

Sold By: EA

21

On Diagram

O-RING

Part #: 035634

$43.40

QTY:

Sold By: EA

22

On Diagram

HOUSING

Part #: 035474

This part is no longer available.

$248.70

QTY:

Sold By: EA

23

On Diagram

CAPSCREW M 8x30 DIN 933

Part #: 013619

$0.60

QTY:

Sold By: EA

24

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783

$0.20

QTY:

Sold By: EA

25

On Diagram

NUT M 6 DIN 934

Part #: 015812

$1.10

QTY:

Sold By: EA

26

On Diagram

NUT M 6 JIS-FLANGE

Part #: 036211

$3.40

QTY:

Sold By: EA

27

On Diagram

CAPSCREW M 6x55 DIN 931

Part #: 030146

$1.20

QTY:

Sold By: EA

28

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783

$0.20

QTY:

Sold By: EA

29

On Diagram

BRACKET

Part #: 035093

This part is no longer available.

Price not found

QTY:

Sold By: EA

30

On Diagram

CLAMP

Part #: 011341

$2.00

QTY:

Sold By: EA

31

On Diagram

HOSE

Part #: 035516

$19.30

QTY:

Sold By: EA

32

On Diagram

HOSE

Part #: 035829

This part is no longer available.

$69.40

QTY:

Sold By: EA
