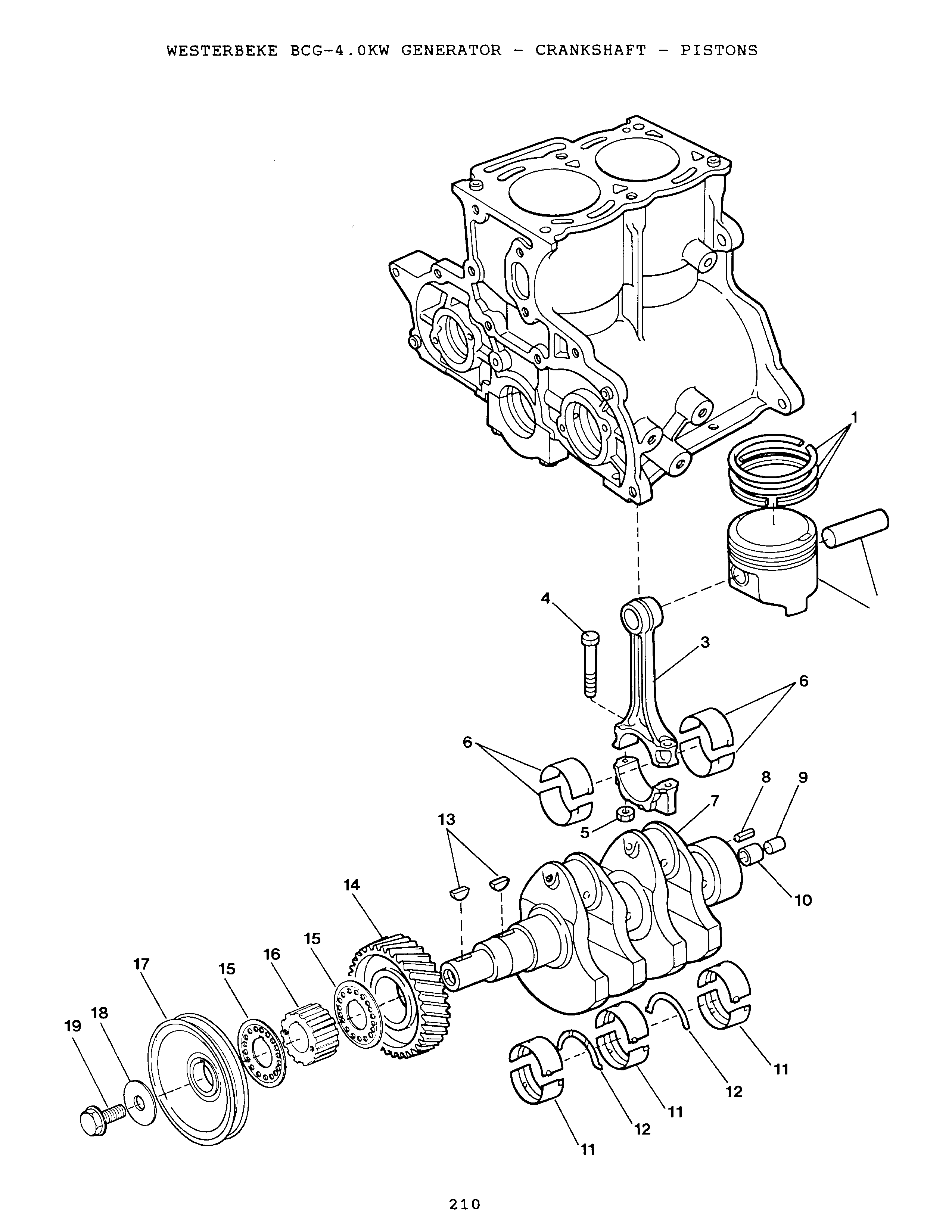

4.0 BCG - CRANKSHAFT - PISTONS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

RING SET

Part #: 035517

This part is no longer available.

Price not found
QTY:

Sold By: ST

1-2

On Diagram

RING SET 0.25

Part #: 035519
$199.50
QTY:

Sold By: ST

1-3

On Diagram

RING SET 0.50

Part #: 035521
$199.50
QTY:

Sold By: ST

1-4

On Diagram

RING SET

Part #: 035523

This part is no longer available.

Price not found
QTY:

Sold By: EA

1-5

On Diagram

RING SET

Part #: 035524

This part is no longer available.

Price not found
QTY:

Sold By: EA

2-1

On Diagram

PISTON STD

Part #: 035526

This part is no longer available.

$121.50
QTY:

Sold By: EA

2-2

On Diagram

PISTON 0.25

Part #: 035528

This part is no longer available.

$121.50
QTY:

Sold By: EA

2-3

On Diagram

PISTON 0.50

Part #: 035530
$121.50
QTY:

Sold By: EA

2-4

On Diagram

PISTON

Part #: 035531

This part is no longer available.

Price not found
QTY:

Sold By: EA

2-5

On Diagram

PISTON 1.00

Part #: 035532

This part is no longer available.

$121.50
QTY:

Sold By: EA

3

On Diagram

ROD

Part #: 035534

This part is replaced with part number 035533

Price not found
QTY:

Sold By: EA

4

On Diagram

BOLT

Part #: 035541
$17.60
QTY:

Sold By: EA

5

On Diagram

NUT

Part #: 036213
$4.60
QTY:

Sold By: EA

6-1

On Diagram

BEARING SET

Part #: 035535
$153.30
QTY:

Sold By: ST

6-2

On Diagram

BEARING SET

Part #: 035537

This part is no longer available.

$153.30
QTY:

Sold By: ST

6-3

On Diagram

BEARING SET

Part #: 035539
$153.30
QTY:

Sold By: ST

7

On Diagram

CRANKSHAFT

Part #: 035542

This part is no longer available.

$1,792.60
QTY:

Sold By: EA

8

On Diagram

PIN

Part #: 036214

This part is no longer available.

$3.80
QTY:

Sold By: EA

9

On Diagram

FELT

Part #: 035686
$4.10
QTY:

Sold By: EA

10

On Diagram

BUSHING

Part #: 035651

This part is no longer available.

$9.70
QTY:

Sold By: EA

11-1

On Diagram

BEARING SET

Part #: 035501
$214.00
QTY:

Sold By: ST

11-2

On Diagram

BEARING SET

Part #: 035503
$130.00
QTY:

Sold By: ST

11-3

On Diagram

BEARING SET

Part #: 035505

This part is no longer available.

$130.00
QTY:

Sold By: ST

12-1

On Diagram

THRUSTWASHER SET STD

Part #: 035466
$92.00
QTY:

Sold By: ST

12-2

On Diagram

THRUSTWASHER SET 0.125

Part #: 035467

This part is no longer available.

$42.00
QTY:

Sold By: ST

12-3

On Diagram

THRUSTWASHER SET 0.250

Part #: 035468

This part is no longer available.

$42.00
QTY:

Sold By: ST

13

On Diagram

KEY

Part #: 035632
$5.20
QTY:

Sold By: EA

14

On Diagram

GEAR

Part #: 035553

This part is no longer available.

$231.40
QTY:

Sold By: EA

15

On Diagram

FLANGE

Part #: 035558
$39.10
QTY:

Sold By: EA

16

On Diagram

GEAR

Part #: 035557
$176.50
QTY:

Sold By: EA

17

On Diagram

PULLEY

Part #: 035555

This part is no longer available.

$96.10
QTY:

Sold By: EA

18

On Diagram

WASHER

Part #: 035623
$4.20
QTY:

Sold By: EA

19

On Diagram

BOLT

Part #: 035784
$5.20
QTY:

Sold By: EA
