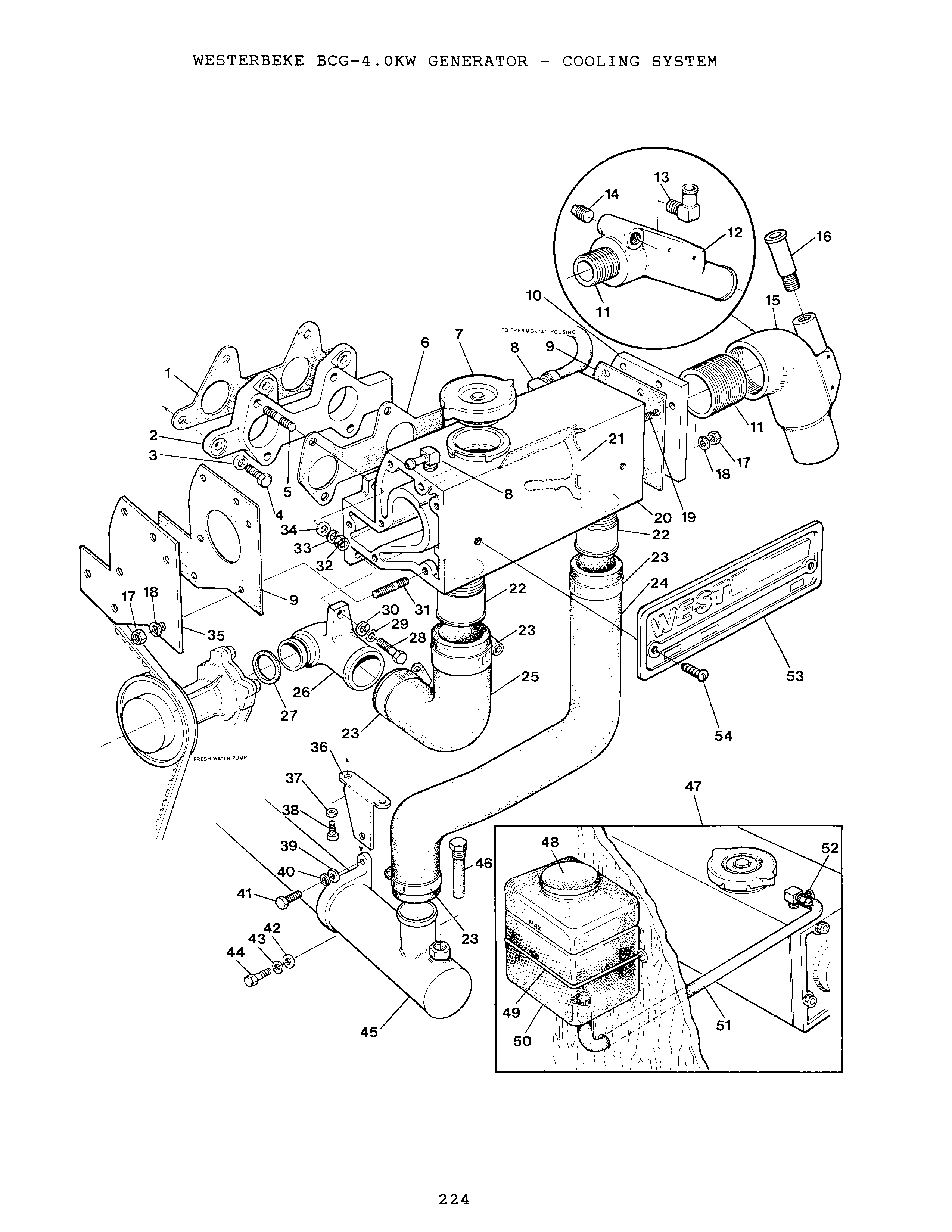

4.0 BCG - COOLING SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GASKET

Part #: 035155
$25.10
QTY:

Sold By: EA

2

On Diagram

ADAPTER

Part #: 034948
$370.00
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

4

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

5

On Diagram

STUD

Part #: 011263
$4.00
QTY:

Sold By: EA

6

On Diagram

GASKET

Part #: 035032
$35.00
QTY:

Sold By: EA

7

On Diagram

CAP

Part #: 024306
$10.80
QTY:

Sold By: EA

8

On Diagram

ELBOW 1/8NPT x 5/16 HOSE

Part #: 024907
$24.80
QTY:

Sold By: EA

9

On Diagram

GASKET

Part #: 034660
$14.00
QTY:

Sold By: EA

10

On Diagram

FLANGE

Part #: 034734

This part is replaced with part number 037326

$237.00
QTY:

Sold By: EA

11

On Diagram

NIPPLE 1.5 NPT CLOSE

Part #: 020439
$17.30
QTY:

Sold By: EA

12

On Diagram

ELBOW

Part #: 034486

This part requires periodic inspection and maintenance. See your Operator's Manual for the maintenance schedule.

$135.30
QTY:

Sold By: EA

13

On Diagram

ELBOW 1/2NPT x 7/8 HOSE

Part #: 030183
$23.30
QTY:

Sold By: EA

14

On Diagram

PLUG 1/2 NPT

Part #: 035747
$12.90
QTY:

Sold By: EA

15

On Diagram

ELBOW

Part #: 033067
$315.50
QTY:

Sold By: EA

16

On Diagram

NIPPLE 1/2 NPT x 7/8 HOSE

Part #: 032230
$140.70
QTY:

Sold By: EA

17

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

19

On Diagram

STUD

Part #: 011263
$4.00
QTY:

Sold By: EA

20

On Diagram

MANIFOLD

Part #: 034793

This part is no longer available.

Price not found
QTY:

Sold By: EA

22

On Diagram

NIPPLE 1 NPT x 1-3/8 HOSE

Part #: 034424
$69.90
QTY:

Sold By: EA

23

On Diagram

CLAMP

Part #: 021878
$2.70
QTY:

Sold By: EA

24

On Diagram

HOSE

Part #: 035097
$39.50
QTY:

Sold By: EA

25

On Diagram

HOSE

Part #: 024334
$23.80
QTY:

Sold By: EA

26

On Diagram

ELBOW

Part #: 035184

This part is no longer available.

Price not found
QTY:

Sold By: EA

27

On Diagram

O-RING

Part #: 015610
$5.00
QTY:

Sold By: EA

28

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

30

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

31

On Diagram

STUD

Part #: 011928
$11.00
QTY:

Sold By: EA

32

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

33

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

34

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

35

On Diagram

COVER

Part #: 034661
$15.50
QTY:

Sold By: EA

36

On Diagram

BRACKET

Part #: 035087

This part is no longer available.

$42.80
QTY:

Sold By: EA

37

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

38

On Diagram

CAPSCREW M 6x20 DIN 933

Part #: 018804
$0.70
QTY:

Sold By: EA

39

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

40

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

41

On Diagram

CAPSCREW 5/16NCx3/4

Part #: 031553
$0.40
QTY:

Sold By: EA

42

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

43

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

44

On Diagram

CAPSCREW 1/4NCx1-1/4

Part #: 031506
$0.50
QTY:

Sold By: EA

45

On Diagram

EXCHANGER

Part #: 035033
Price not found
QTY:

Sold By: each

46

On Diagram

ZINC

Part #: 011885
$14.60
QTY:

Sold By: EA

47

On Diagram

TANK KIT

Part #: 024977
$68.60
QTY:

Sold By: KT

48

On Diagram

CAP

Part #: 024858
$0.50
QTY:

Sold By: EA

49

On Diagram

STRAP

Part #: 024786
$13.20
QTY:

Sold By: EA

50

On Diagram

TANK

Part #: 024704

This tank DOES NOT include CAP part number 024858. Please order CAP 024858 separately.

$28.10
QTY:

Sold By: EA

51

On Diagram

TUBING

Part #: 024637

This part is no longer available. Use part number 056526. ATTENTION - IMPORTANT: This tubing is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.40
QTY:

Sold By: IN

52

On Diagram

CLAMP

Part #: 024906
$1.90
QTY:

Sold By: EA

53

On Diagram

NAMEPLATE

Part #: 035411

Please contact Westerbeke to obtain this part. Serial numbers of your engine or genset required.

Price not found
QTY:

Sold By: EA
