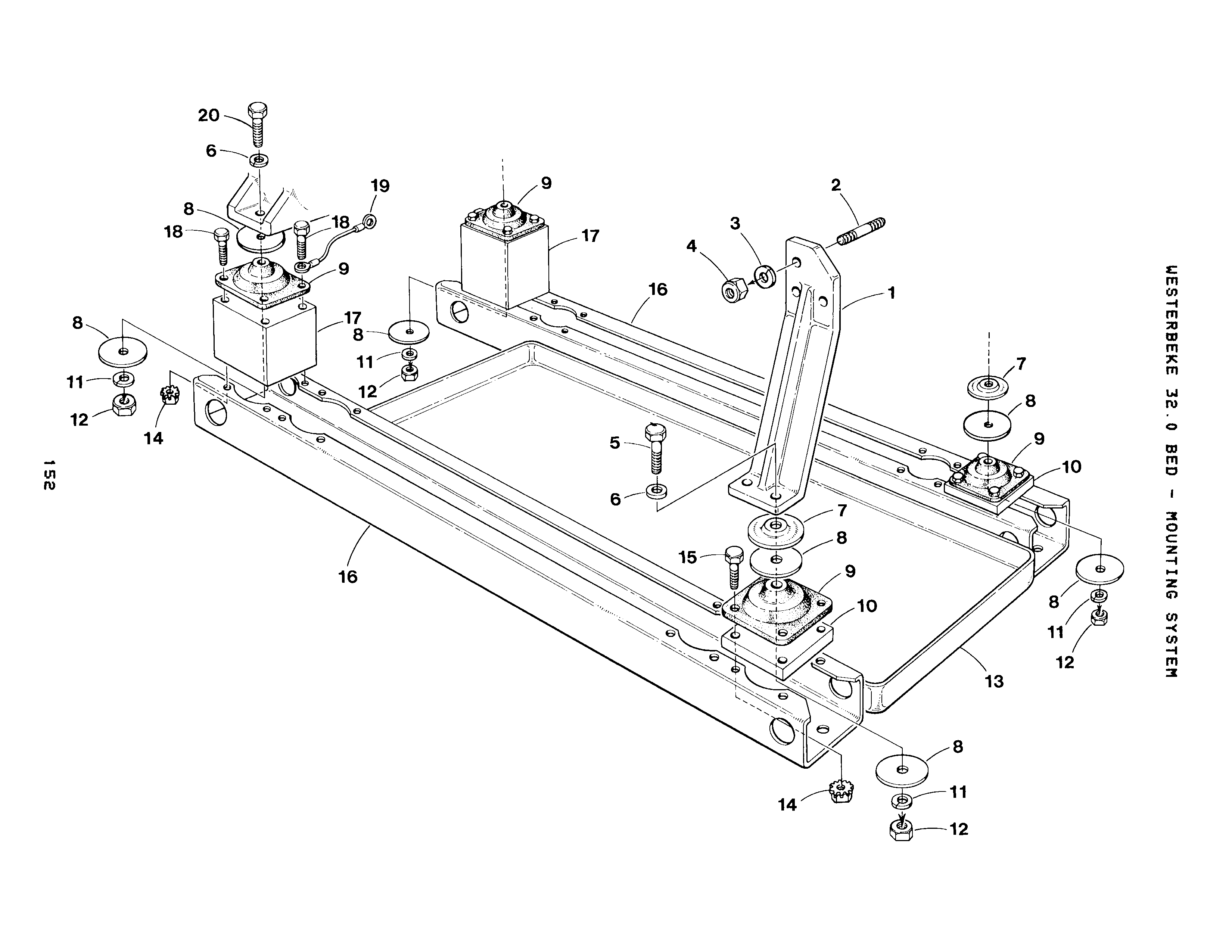

32.0 BED - MOUNTING SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MOUNT

Part #: 032324

This part is no longer available.

$319.80

QTY:

Sold By: EA

2

On Diagram

STUD

Part #: 012503

$8.20

QTY:

Sold By: EA

3

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770

$0.20

QTY:

Sold By: EA

4

On Diagram

NUT 7/16-20 NF

Part #: 031772

This part is no longer available.

$0.60

QTY:

Sold By: EA

5

On Diagram

CAPSCREW 1/2NCx4

Part #: 031717

$3.00

QTY:

Sold By: EA

6

On Diagram

WASHER

Part #: 031777

$0.80

QTY:

Sold By: EA

7

On Diagram

SHIELD

Part #: 033530

$6.30

QTY:

Sold By: EA

8

On Diagram

WASHER

Part #: 024674

$2.20

QTY:

Sold By: EA

9

On Diagram

ISOLATOR

Part #: 015239

$122.70

QTY:

Sold By: EA

10

On Diagram

PLATE

Part #: 033574

$11.60

QTY:

Sold By: EA

11

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776

$0.20

QTY:

Sold By: EA

12

On Diagram

NUT 1/2-13 NC

Part #: 031774

$0.40

QTY:

Sold By: EA

13

On Diagram

DRIPTRAY

Part #: 039050

This part is no longer available.

Price not found

QTY:

Sold By: EA

14

On Diagram

NUT 5/16-18 NC KEPS

Part #: 200127

$0.40

QTY:

Sold By: EA

15

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555

$0.40

QTY:

Sold By: EA

16

On Diagram

RAIL

Part #: 039073

$76.40

QTY:

Sold By: EA

17

On Diagram

SPACER

Part #: 039075

$33.60

QTY:

Sold By: EA

18

On Diagram

CAPSCREW

Part #: 031566

Price not found

QTY:

Sold By: each

19

On Diagram

STRAP

Part #: 034713

$11.60

QTY:

Sold By: EA

20

On Diagram

CAPSCREW 1/2NCx4-1/4

Part #: 031718

$9.00

QTY:

Sold By: EA
